NCP42R-EEPSKT (2002)
Toyota Vios/Soluna Vios
Production
Dec 2002
-
Feb 2007
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0212- )RHD

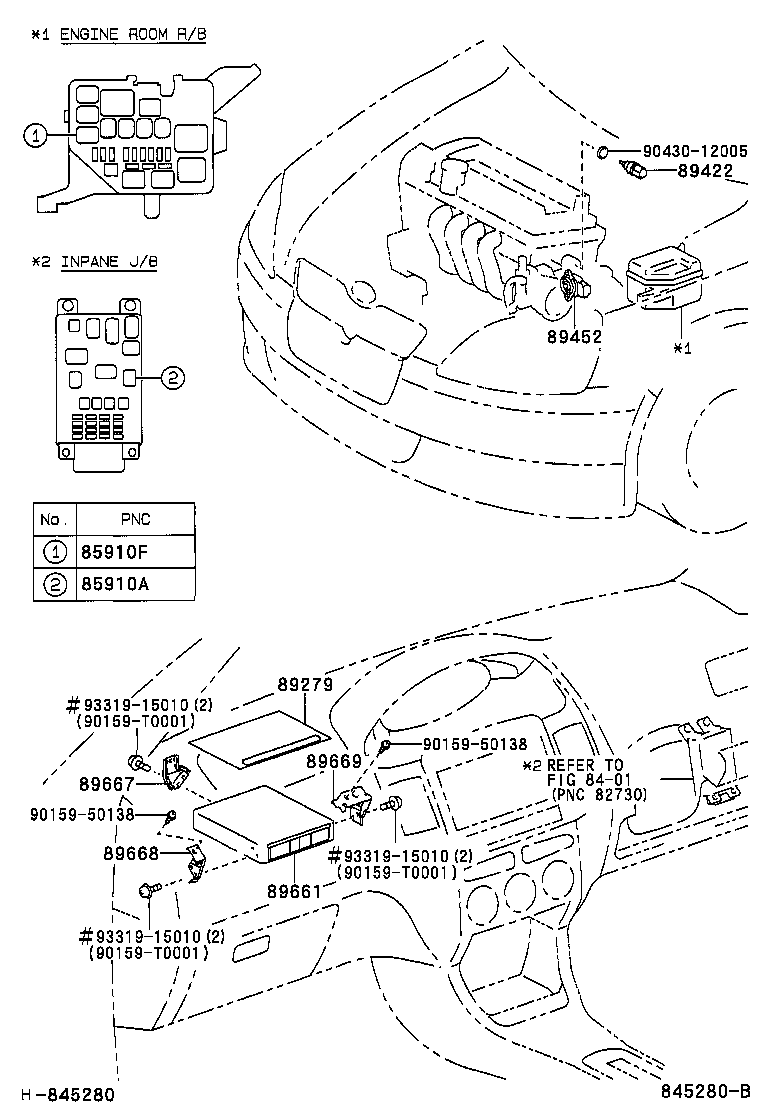

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02022 |
NCP4# (J) |
1 | ||
| 90080-87008 |
NCP4# |
1 | ||
| 90080-87008 |
NCP4# (L) |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02022 |
NCP4# (J) |
1 | ||
| 90080-87008 |
NCP4# (L) |
1 | ||
| 90080-87008 |
NCP4# |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-52100 |
NCP42..RHD |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-16010 |
NCP4# DENSO |
1 | ||
| 89422-22030 |
NCP4# NTC |
1 | ||
| 89422-16010 |
NCP4# DENSO |
1 | ||
| 89422-22030 |
NCP4# NTC |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-20130 |
NCP42..PHL,TAIW,TH (J) |
1 | ||
| 89452-20130 |
NCP42 (J) |
1 | ||
| 89452-0A010 |
NCP42 (L) |
1 | ||
| 89452-0A010 |
NCP42..PHL,TAIW,TH (L) |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-0D150 |
NCP42..ATM..TH P/N LABEL=896610D150 |
1 | ||
| 89661-0D150 |
NCP42..ATM..TH P/N LABEL=896610D150 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-52010 |
NCP42..RHD |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-52120 |
NCP42..RHD |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-52070 |
NCP42..RHD |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90159-T0001 | ||||
| 90430-12005 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
