NCP42R-EEPSKE (2003)

Toyota Vios/Soluna Vios

Production May 2003 - Aug 2007
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

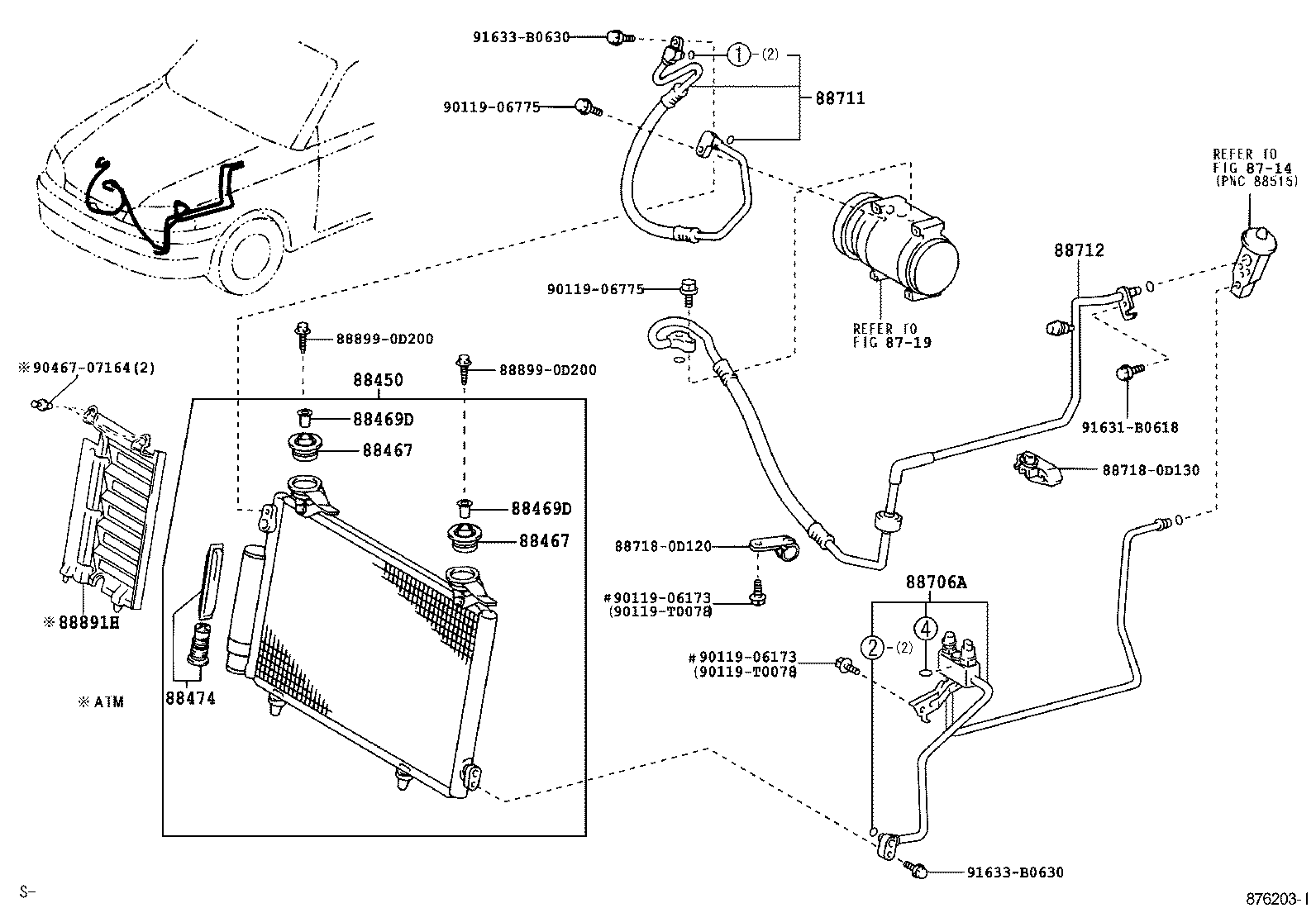

ILLUST NO. 1 OF 2(0305- )MA

Click highlighted areas on diagram

diagram 8714 8719 88450 88467 88467 88469D 88469D 88474 88706A 88711 88712 887180D120 887180D130 88891H 888990D200 888990D200 9011906173 9011906173 9011906775 9011906775 90119T0078 90119T0078 9046707164 91631B0618 91633B0630 91633B0630
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-0D081

NCP42..MA

 1
88450-0D081

NCP42..MA

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

NCP42..MA

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

NCP42..MA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NCP42..MA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NCP42..MA

 2
88474 - DRYER, COOLER
88474-17010

NCP4#

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-0D110

NCP42..MA

 1
88706-0D110

NCP42..MA

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D171

NCP42..MA

 1
88711-0D171

NCP42..MA

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0D131

NCP42..MA

 1
88712-0D130

NCP42..MA

 1
88712-0D131

NCP42..MA

 1
88891H - COVER, COOLER, NO.1
88891-0D040

NCP42..MA

 1
Common parts
88718-0D120
88718-0D130
88899-0D200
90119-06173
90119-06775
90119-T0078
90467-07164
91631-B0618
91633-B0630
Linked diagrams
8714
8719
