NCP42R-EEPSKE (2003)

Toyota Vios/Soluna Vios

Production May 2003 - Aug 2007
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0210-0510)PHL,TAIW,TH ; (0210-0511)AXP4# ; (0305-0512)MA ; (0307-0603)VN

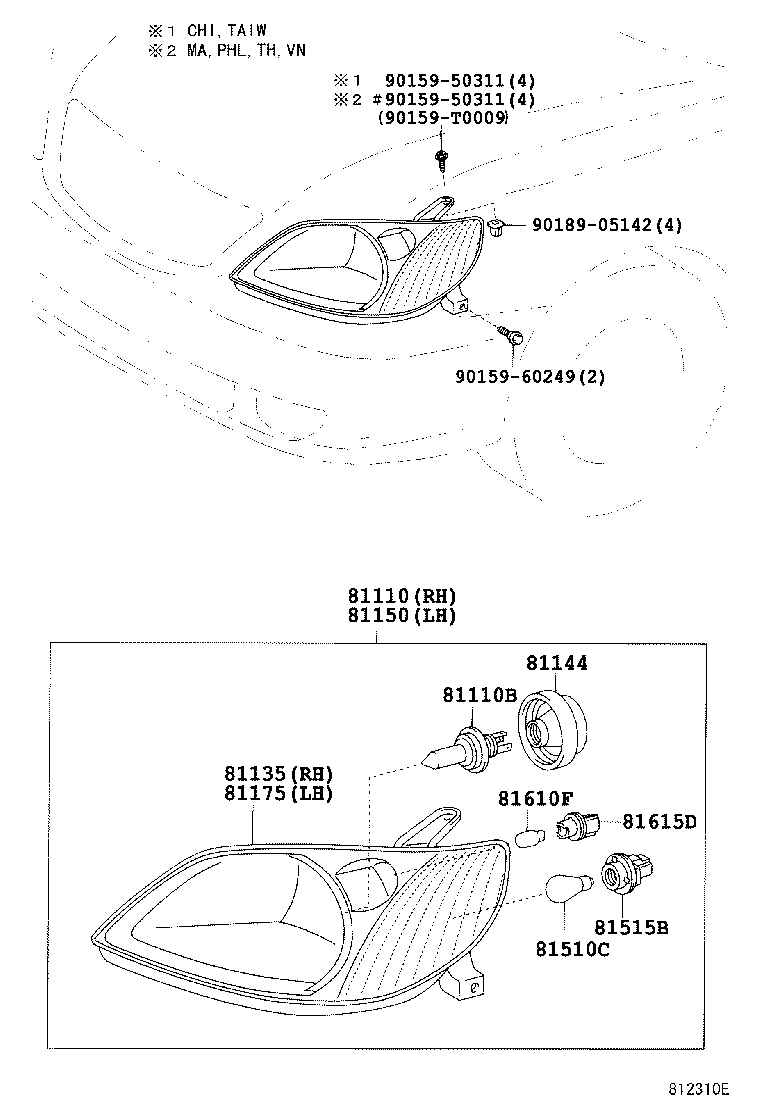

Click highlighted areas on diagram

diagram 81110 81110B 81135 81144 81150 81175 81510C 81515B 81610F 81615D 9015950311 9015950311 9015960249 90159T0009 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0D180

NCP42..RHD

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

NCP4#

12V 60/55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0D180

NCP42..RHD

 1
81150 - HEADLAMP ASSY, LH
81150-0D180

NCP42..RHD

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0D180

NCP42..RHD

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

NCP4#

12V 5W

 2
Common parts
90159-50311
90159-60249
90159-T0009
90189-05142

(0510- )PHL,TAIW,TH ; (0511-0608)AXP4# ; (0512- )MA ; (0603- )VN ; (0608-

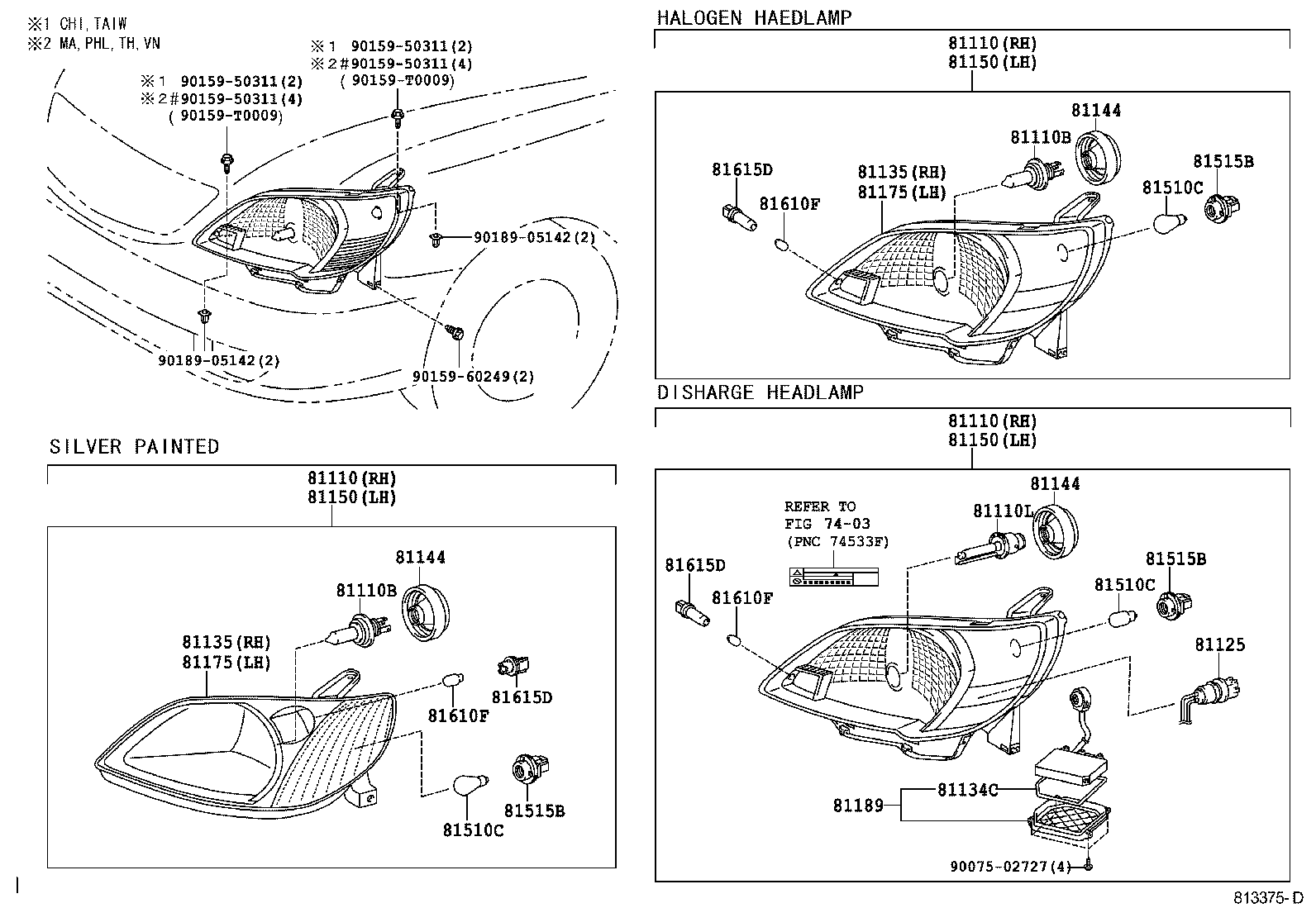

Click highlighted areas on diagram

diagram 7403 81110 81110 81110 81110B 81110B 81110L 81125 81134C 81135 81135 81144 81144 81144 81150 81150 81150 81175 81175 81189 81510C 81510C 81510C 81515B 81515B 81515B 81610F 81610F 81610F 81615D 81615D 81615D 9007502727 9015950311 9015950311 9015950311 9015950311 9015960249 90159T0009 90159T0009 9018905142 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0D180

NCP42..RHD

 1
81110 - HEADLAMP ASSY, RH
81110-0D180

NCP42..RHD

 1
81110 - HEADLAMP ASSY, RH
81110-0D180

NCP42..RHD

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

NCP4#

12V 60/55W,HALOGEN

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

NCP4#

12V 60/55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0D180

NCP42..RHD

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-0D180

NCP42..RHD

 1
81150 - HEADLAMP ASSY, LH
81150-0D180

NCP42..RHD

 1
81150 - HEADLAMP ASSY, LH
81150-0D180

NCP42..RHD

 1
81150 - HEADLAMP ASSY, LH
81150-0D180

NCP42..RHD

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0D180

NCP42..RHD

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0D180

NCP42..RHD

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

NCP4#

12V 5W

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

NCP4#

12V 5W

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

NCP4#

12V 5W

 2
Common parts
90075-02727
90159-50311
90159-60249
90159-T0009
90189-05142
Linked diagrams
7403
