NCP42R-EEPSKE (2003)

Toyota Vios/Soluna Vios

Production May 2003 - Aug 2007
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

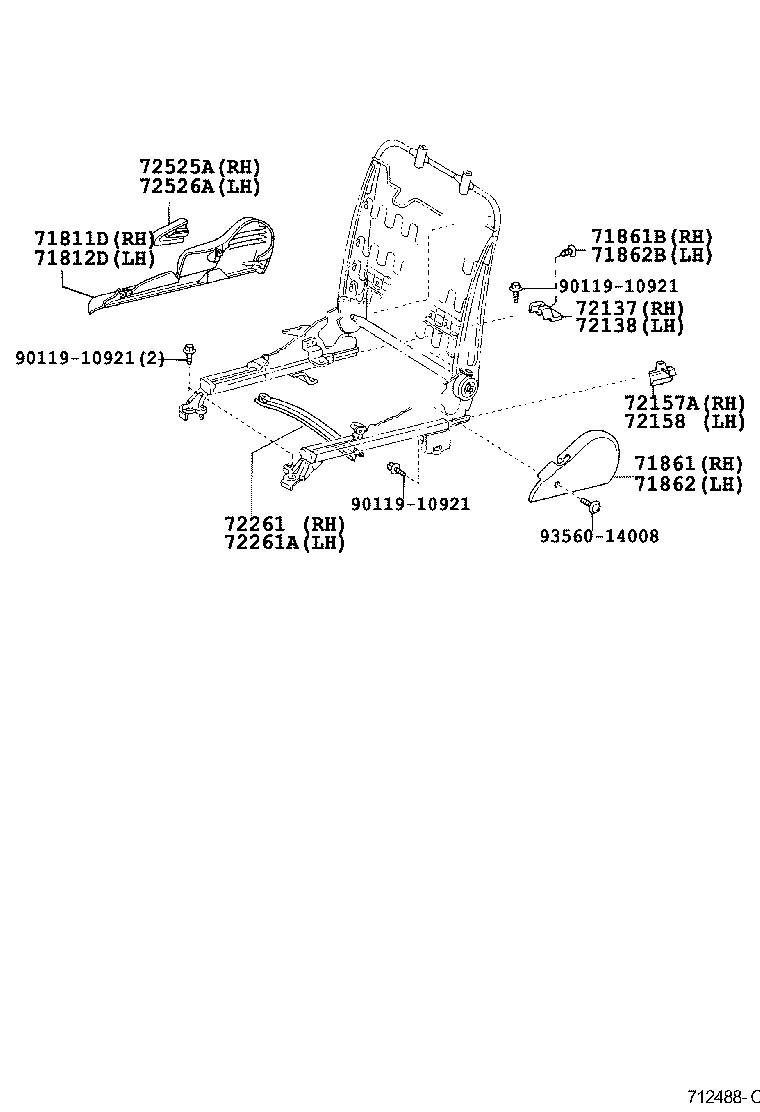

ILLUST NO. 2 OF 2(0210- )CHI,VN ; (0212-0510)PHL,TAIW,TH ; (0305-0512)MA

Click highlighted areas on diagram

diagram 71811D 71812D 71861 71861B 71862 71862B 72137 72138 72157A 72158 72261 72261A 72525A 72526A 9011910921 9011910921 9011910921 9356014008
Part # Description Qty Price
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#,THAILAND SPEC

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#,THAILAND SPEC

 1
72261 - REINFORCEMENT, SEAT TRACK, RH
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72261A - REINFORCEMENT, SEAT TRACK, LH
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#,THAILAND SPEC

 1
Common parts
90119-10921
93560-14008

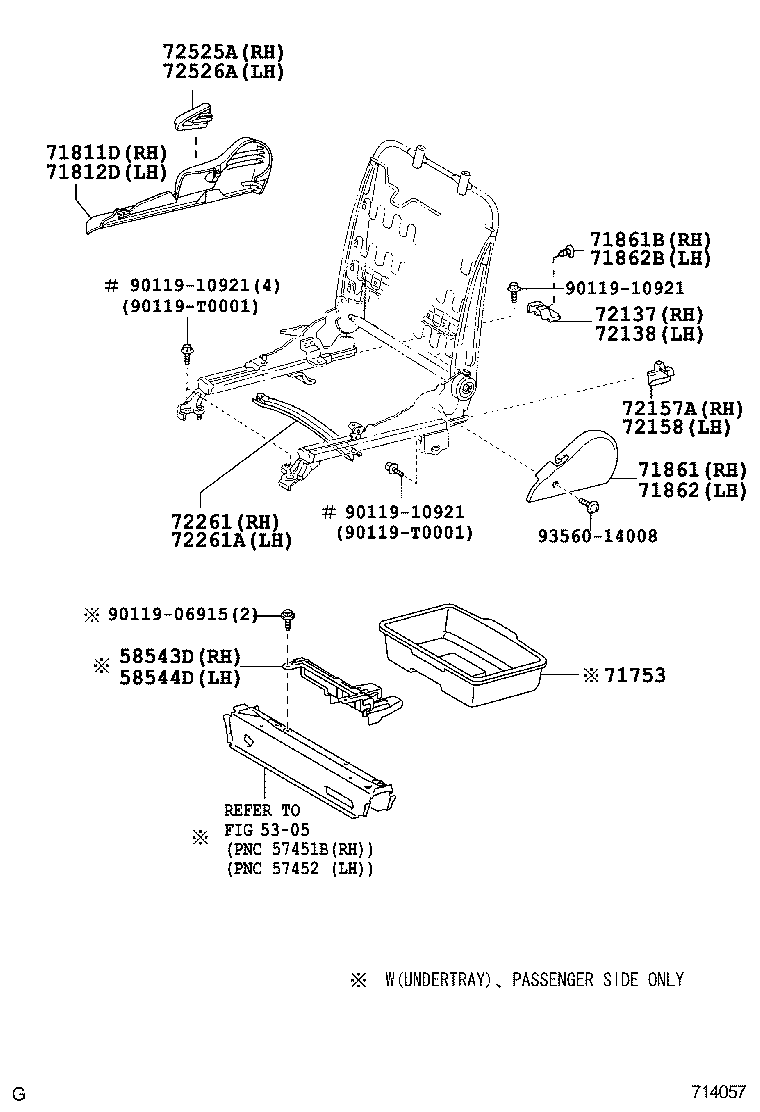

ILLUST NO. 2 OF 2(0510- )PHL,TAIW,TH,VN ; (0512- )MA

Click highlighted areas on diagram

diagram 58543D 58544D 71753 71811D 71812D 71861 71861B 71862 71862B 72137 72138 72157A 72158 72261 72261A 72525A 72526A 9011906915 9011910921 9011910921 9011910921 9356014008
Part # Description Qty Price
58544D - BRACKET, FLOOR CARPET, LH
58544-0D020

NCP42..RHD..(15E,15G,15S)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#,THAILAND SPEC

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#,THAILAND SPEC

 1
72261 - REINFORCEMENT, SEAT TRACK, RH
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72261A - REINFORCEMENT, SEAT TRACK, LH
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0A010A0

NCP42..RHD..ATM..(15E,15S)

IVORY,TRIM0#,THAILAND SPEC

 1
Common parts
90119-06915
90119-10921
93560-14008
