NCP42R-EEPSKE (2003)

Toyota Vios/Soluna Vios

Production May 2003 - Aug 2007
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0510- )NCP4#,SCP4#..CHI,PHL,TAIW,TH ; (0511-)AXP4# ; (0512- )MA ; (0603-

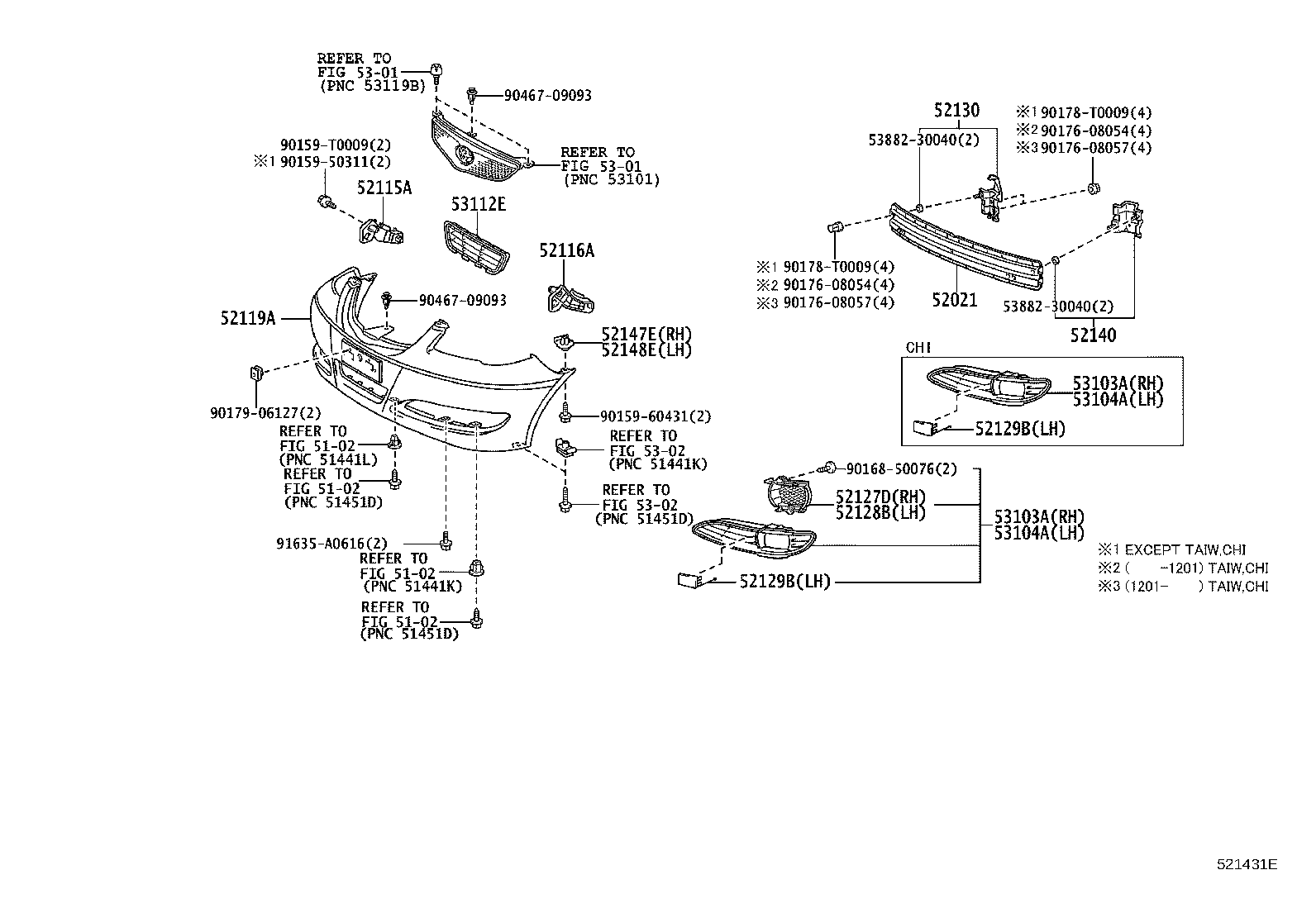

Click highlighted areas on diagram

TYPE B

diagram 5102 5102 5102 5102 52021 52115A 52116A 52119A 52127D 52128B 52129B 52129B 52130 52140 52147E 52148E 5301 5301 5302 5302 53103A 53103A 53104A 53104A 53112E 5388230040 5388230040 9015950311 9015960431 90159T0009 9016850076 9017608054 9017608054 9017608057 9017608057 90178T0009 90178T0009 9017906127 9046709093 9046709093 91635A0616
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-0D020

NCP4#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-0D020

NCP4#

 1
52119A - COVER, FRONT BUMPER
52119-0D976

NCP4#..MA,PHL,TH,VN

PAINT REQ.

 1
52119-0D983

NCP42..MA

PAINT REQ.

 1
52119-0D991

NCP42..MA

PAINT REQ.

 1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52147-16080

NCP4#

 1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52147-16080

NCP4#

 1
Common parts
53882-30040
90159-50311
90159-60431
90159-T0009
90168-50076
90176-08054
90176-08057
90178-T0009
90179-06127
90467-09093
91635-A0616
Linked diagrams
5102
5301
5302
