NCP42R-EEPSKE (2003)

Toyota Vios/Soluna Vios

Production May 2003 - Aug 2007
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0210-0511)DLX,DLXI,GL ; (0212- )ATM..15S ; (0212- )RHD..15E,15J

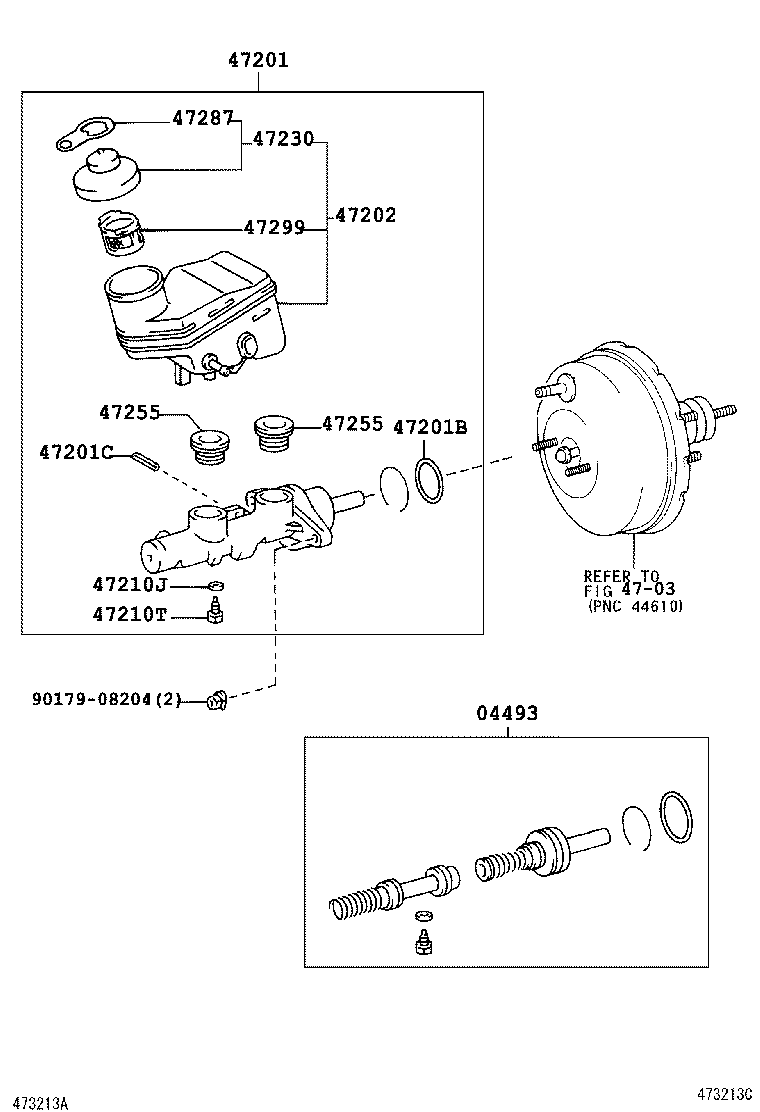

Click highlighted areas on diagram

diagram 04493 4703 47201 47201B 47201C 47202 47210J 47210T 47230 47255 47255 47287 47299 9017908204
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-0D030

NCP42..ATM..15S;NCP42..RHD..(15E,15J)

 1
04493-0D030

NCP42..15E..MA

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-0D120

NCP42..RHD..ATM..(15E,15J,15S)

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059

NCP42..MA,TAIW,TH

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15804

NCP42..RHD

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-0D020

NCP42..RHD..ATM

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

NCP42..15E,15J;NCP42..ATM..(15G,15S)..(TAIW,TH)

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-0K010

NCP42..RHD

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
31417-35010

NCP42..MA,TAIW,TH

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
31417-35010

NCP42..MA,TAIW,TH

 2
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

NCP42..RHD

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060

NCP42..MA,TAIW,TH

 1
Common parts
90179-08204
Linked diagrams
4703
