NCP42R-EEPGKT (2002)

Toyota Vios/Soluna Vios

Production Dec 2002 - Feb 2007
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )NCP4#

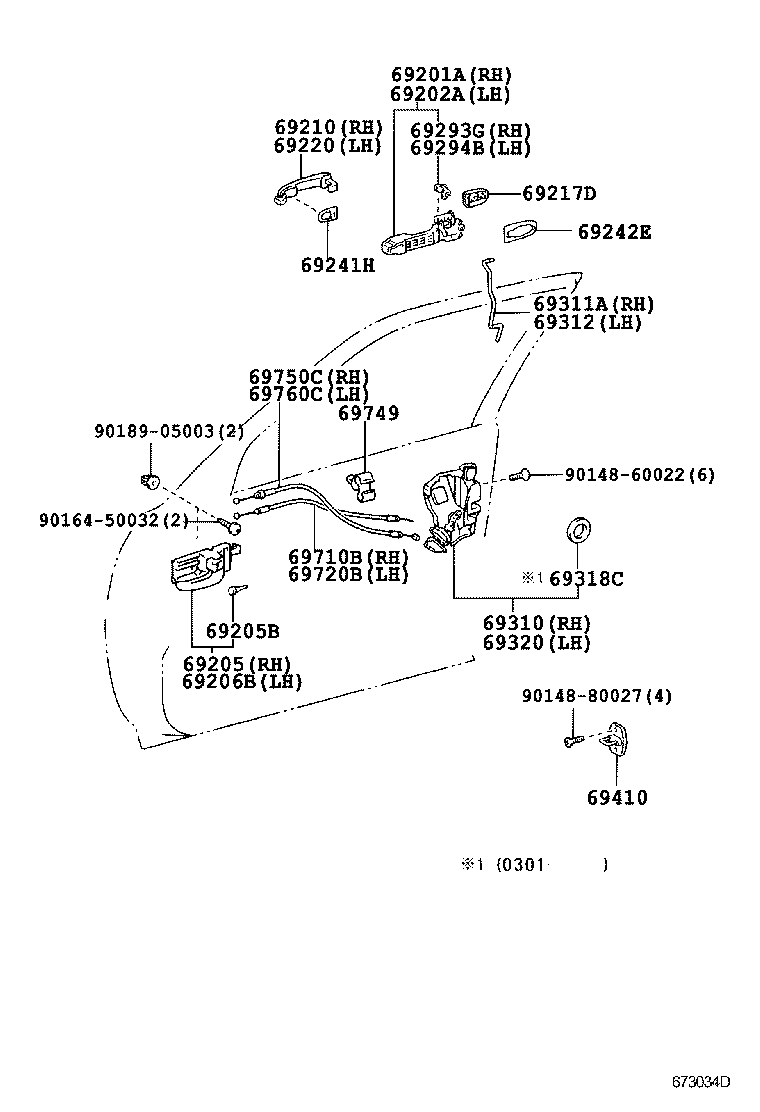

Click highlighted areas on diagram

diagram 69201A 69202A 69205 69205B 69206B 69210 69217D 69220 69241H 69242E 69293G 69294B 69310 69311A 69312 69318C 69320 69410 69710B 69720B 69749 69750C 69760C 9014860022 9014880027 9016450032 9018905003
Part # Description Qty Price
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-06010

NCP4#..MA,PHL,TH

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-06010

NCP4#..MA,PHL,TH

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-12190B1

NCP42..15S

DK.GRAY,TRIM1#

 1
69205-0D080A0

NCP42..ATM..15S

CHROME PLATED HANDLE,IVORY,TRIM0#

 1
69205-0D080B0

NCP42..(15G,15S)..(MA,TAIW,TH)

CHROME PLATED HANDLE,DK.GRAY,TRIM1#

 1
69205-0D080B0

NCP42..ATM..15S

DK.GRAY,TRIM1#

 1
69205-0D080A0

NCP42..ATM..(15E,15S)..TH

CHROME PLATED HANDLE,IVORY,TRIM0#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04027

NCP4#

 2
90541-04027

NCP4#

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-12190B1

NCP42..15S

DK.GRAY,TRIM1#

 1
69206-0D080A0

NCP42..ATM..15S

CHROME PLATED HANDLE,IVORY,TRIM0#

 1
69206-0D080B0

NCP42..(15G,15S)..(MA,TAIW,TH)

CHROME PLATED HANDLE,DK.GRAY,TRIM1#

 1
69206-0D080B0

NCP42..ATM..15S

DK.GRAY,TRIM1#

 1
69206-0D080A0

NCP42..ATM..(15E,15S)..TH

CHROME PLATED HANDLE,IVORY,TRIM0#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-06040

NCP42..RHD..(15G,15S)

PLATED

 1
69217D - COVER, FRONT DOOR OUTSIDE HANDLE
69217-06020

NCP42..RHD..(15G,15S)

*CR

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-06040

NCP42..RHD..(15G,15S)

PLATED

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-06020

NCP4#..MA,PHL,TH

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-06020

NCP4#..MA,PHL,TH

 2
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-33010

NCP4#..MA,PHL,TH

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-33020

NCP4#..MA,PHL,TH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-0D100

NCP42..15E,15S

W(POWER DOOR LOCK)

 1
69030-33241

NCP42..RHD..(15E,15G,15S)

W(POWER DOOR LOCK)

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-52110

NCP4#..MA,PHL,TH

 1
69311-0D060

NCP42

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-52110

NCP4#..MA,PHL,TH

 1
69312-0D060

NCP42

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

NCP4#

 2
69320 - LOCK ASSY, FRONT DOOR, LH
69040-0D090

NCP42..15E,15S

W(POWER DOOR LOCK)

 1
69040-13051

NCP42..RHD..(15E,15G,15S)

W(POWER DOOR LOCK)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20110

NCP4#..MA,PHL,TH,VN

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-0D070

NCP4#..PHL,TH

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-0D070

NCP4#..PHL,TH

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32040

NCP4#

 2
69749-32040

NCP4#

 2
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-0D030

NCP4#..PHL,TH

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69760-0D030

NCP4#..PHL,TH

 1
Common parts
90148-60022
90148-80027
90164-50032
90189-05003
