NCP42R-EEPGKT (2002)
Toyota Vios/Soluna Vios
Production
Dec 2002
-
Feb 2007
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0212- )RHD

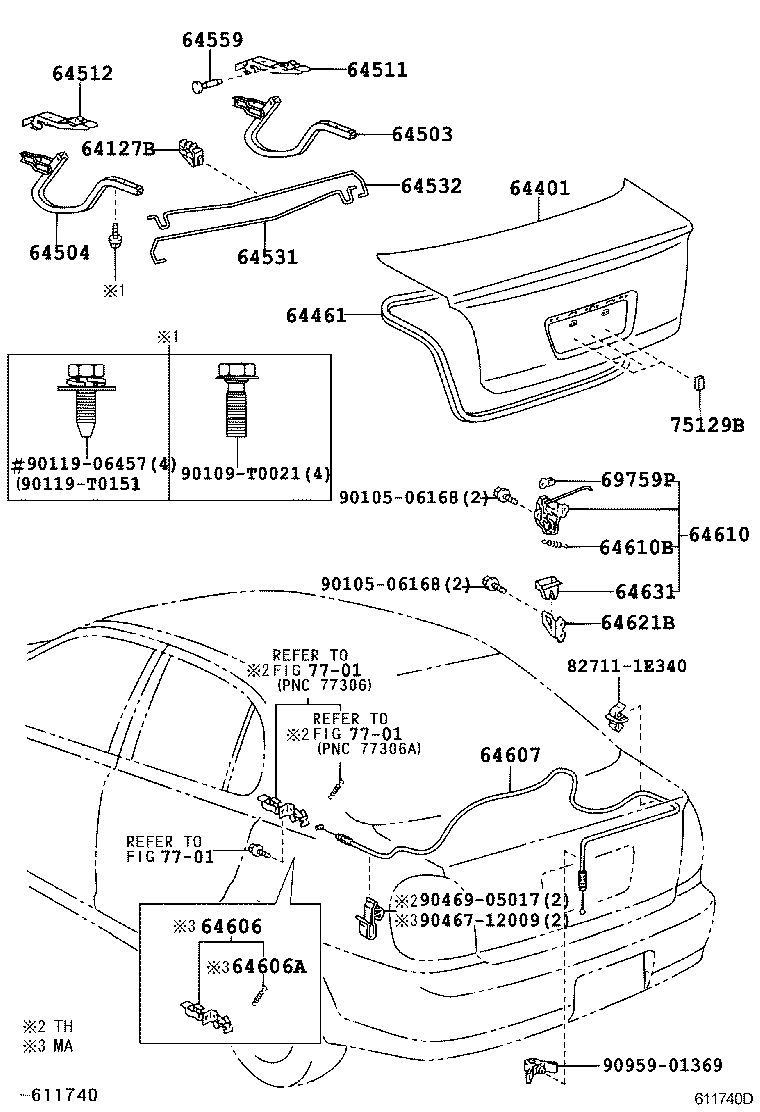

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-33041 |
NCP4# |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-0D070 |
NCP42..ATM..(15G,15S)..(TAIW,TH) W(REAR SPOILER) |
1 | ||
| 64401-0D030 |
NCP4# |
1 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-0D020 |
NCP4# |
1 | ||
| 64461-0D020 |
NCP4# |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-12150 |
NCP4# |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-12150 |
NCP4# |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-12270 |
NCP4# |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64511-12270 |
NCP4# |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-0D060 |
NCP42..ATM..(15G,15S)..(TAIW,TH) W(REAR SPOILER) |
1 | ||
| 64531-0D030 |
NCP4# |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-0D060 |
NCP42..ATM..(15G,15S)..(TAIW,TH) W(REAR SPOILER) |
1 | ||
| 64532-0D030 |
NCP4# |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
NCP4# |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-0D030 |
NCP42..TH |
1 | ||
| 64607-0D030 |
NCP42..TH |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-0D020 |
NCP4# |
1 | ||
| 64610-0D020 |
NCP4# |
1 | ||
| 64610B - SPRING, TENSION(FOR LOCK) | ||||
| 90506-05001 |
NCP4# WD=0.55,CW=17.5 |
1 | ||
| 90506-05001 |
NCP4# WD=0.55,CW=17.5 |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-12070 |
NCP4# |
1 | ||
| 64621-12070 |
NCP4# |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-12050 |
NCP4# |
1 | ||
| 64631-12050 |
NCP4# |
1 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20040 |
NCP4# |
1 | ||
| 69759-20040 |
NCP4# |
1 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-13010 |
NCP4# |
2 | ||
| 75129-13010 |
NCP4# |
2 | ||
| 75129-13020 |
NCP42 |
2 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 90105-06168 | ||||
| 90109-T0021 | ||||
| 90119-06457 | ||||
| 90119-T0151 | ||||
| 90467-12009 | ||||
| 90469-05017 | ||||
| 90959-01369 | ||||
| Linked diagrams | ||||
| 7701 | ||||
