NCP42R-EEMSKT (2002)
Toyota Vios/Soluna Vios
Production
Dec 2002
-
Feb 2007
Engine
1NZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

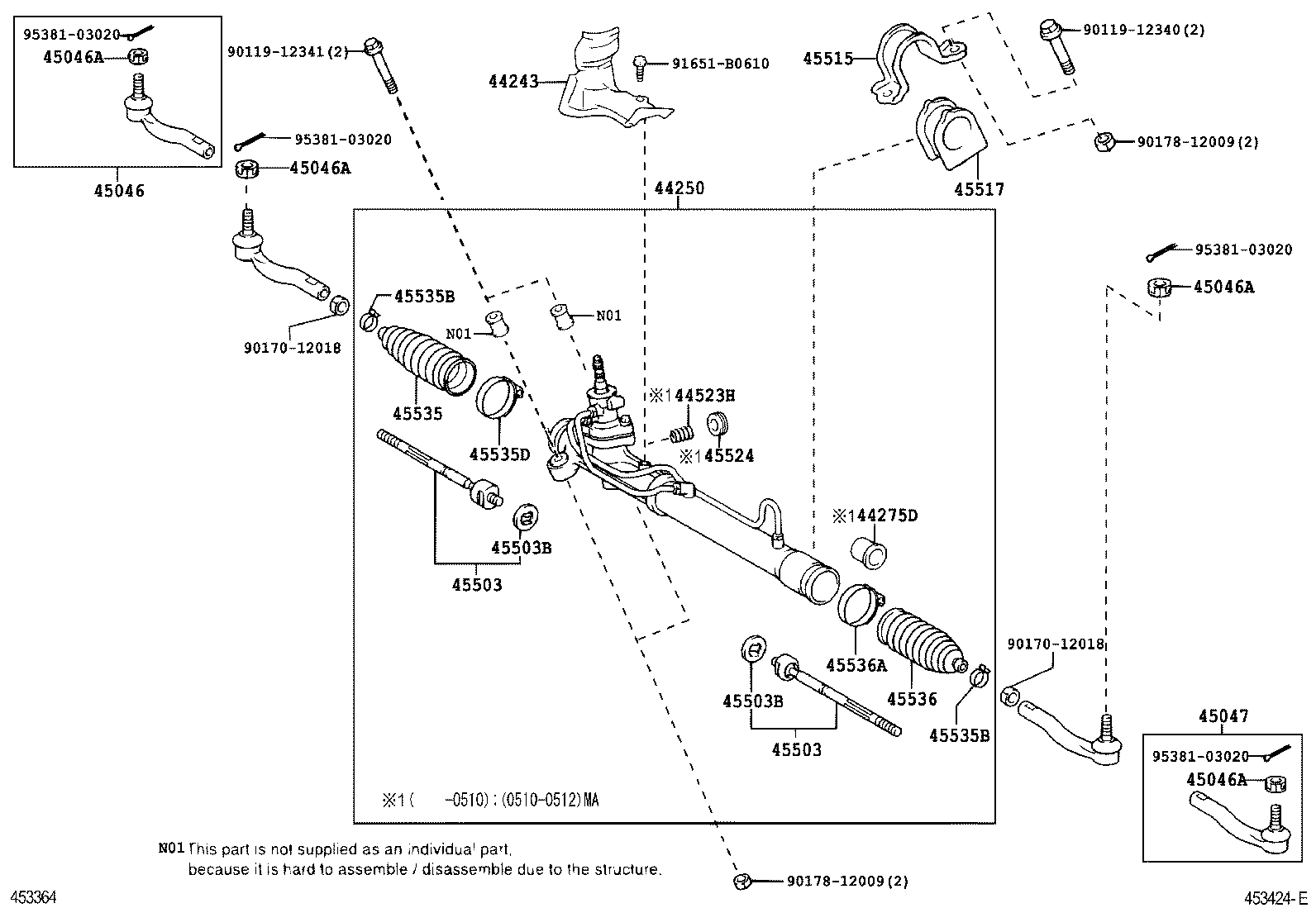

ILLUST NO. 1 OF 2(0212- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44243 - INSULATOR, POWER STEERING RACK HOUSING HEAT | ||||
| 44243-0D020 |
NCP42..RHD |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-0D030 |
NCP42..RHD..(15E,15J) |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 90386-22001 |
NCP42..RHD |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90080-50368 |
NCP42..RHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09120 |
NCP4# |
1 | ||
| 45046-09120 |
NCP4# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP4# |
2 | ||
| 90171-12028 |
NCP4# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP4# |
2 | ||
| 90171-12028 |
NCP4# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP4# |
2 | ||
| 90171-12028 |
NCP4# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP4# |
2 | ||
| 90171-12028 |
NCP4# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-09040 |
NCP4# |
1 | ||
| 45047-09040 |
NCP4# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09290 |
NCP4# |
2 | ||
| 45503-09260 |
NCP42 |
2 | ||
| 45503-09290 |
NCP4# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09290 |
NCP4# |
2 | ||
| 45503-09260 |
NCP42 |
2 | ||
| 45503-09290 |
NCP4# |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14010 |
NCP4# OD=34 |
2 | ||
| 90214-14010 |
NCP4# OD=34 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14010 |
NCP4# OD=34 |
2 | ||
| 90214-14010 |
NCP4# OD=34 |
2 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-0D030 |
NCP4#..MA,PHL,TH,VN |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-0D040 |
NCP4#..MA,PHL,TH,VN |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12041 |
NCP42..RHD |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-02030 |
NCP4# |
1 | ||
| 45535-02030 |
NCP4# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
NCP4# |
2 | ||
| 90467-19019 |
NCP4# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
NCP4# |
2 | ||
| 90467-19019 |
NCP4# |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90080-58059 |
NCP4# |
1 | ||
| 90080-58059 |
NCP4# |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-02030 |
NCP4# |
1 | ||
| 45535-02030 |
NCP4# |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90080-58059 |
NCP4# |
1 | ||
| 90080-58059 |
NCP4# |
1 | ||
| Common parts | ||||
| 90119-12340 | ||||
| 90119-12341 | ||||
| 90170-12018 | ||||
| 90178-12009 | ||||
| 91651-B0610 | ||||
| 95381-03020 | ||||

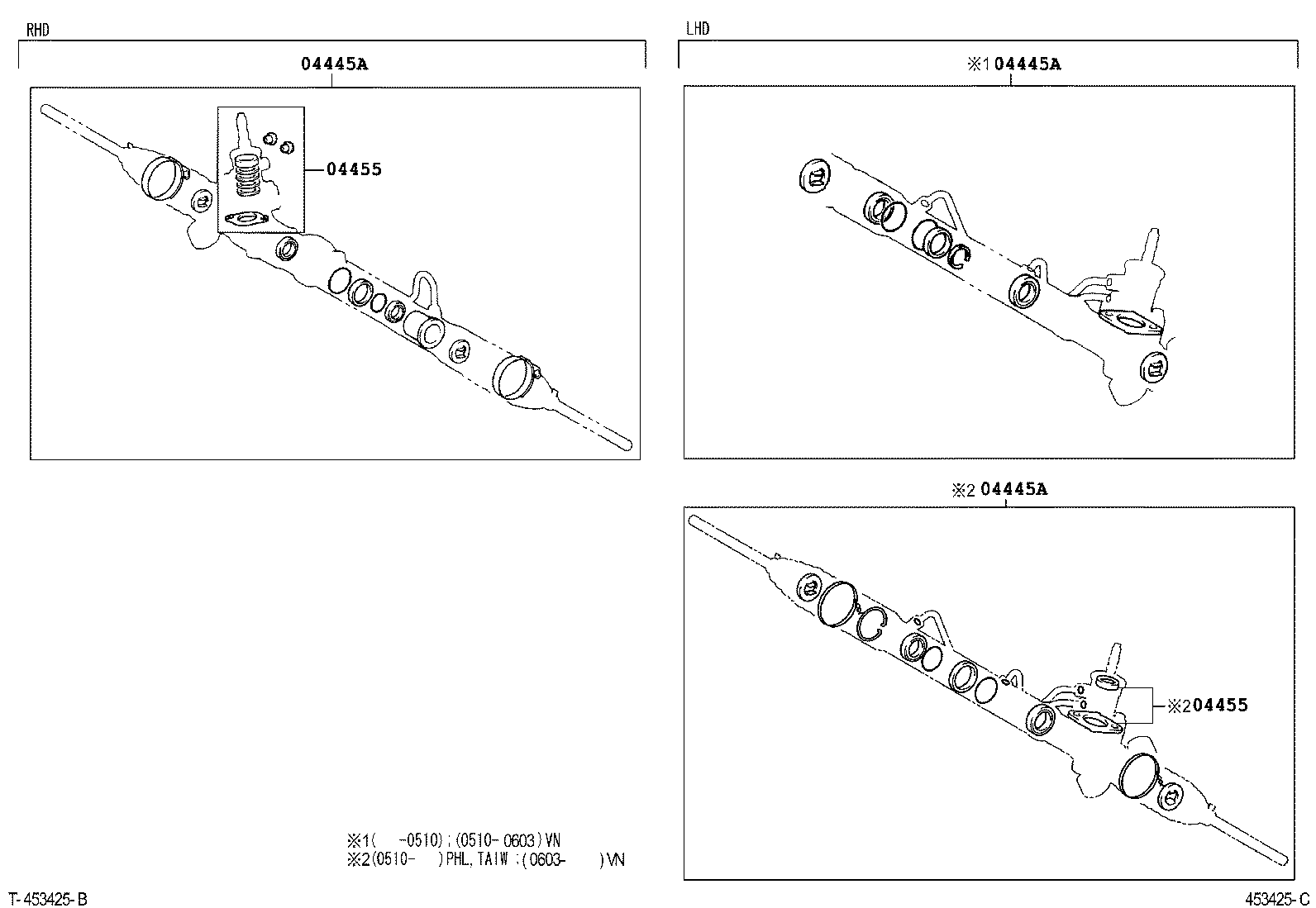

ILLUST NO. 2 OF 2(0212- )NCP4#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-0D010 |
NCP42..RHD |
1 | ||
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-0D010 |
NCP42..RHD |
1 | ||
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-0D010 |
NCP42..RHD |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-52010 |
NCP42..RHD |
1 | ||
| 04455-0D010 |
NCP42 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-52010 |
NCP42..RHD |
1 | ||
| 04455-0D010 |
NCP42 |
1 | ||
