NCP42R-EEMRKT (2002)

Toyota Vios/Soluna Vios

Production Dec 2002 - Feb 2007
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

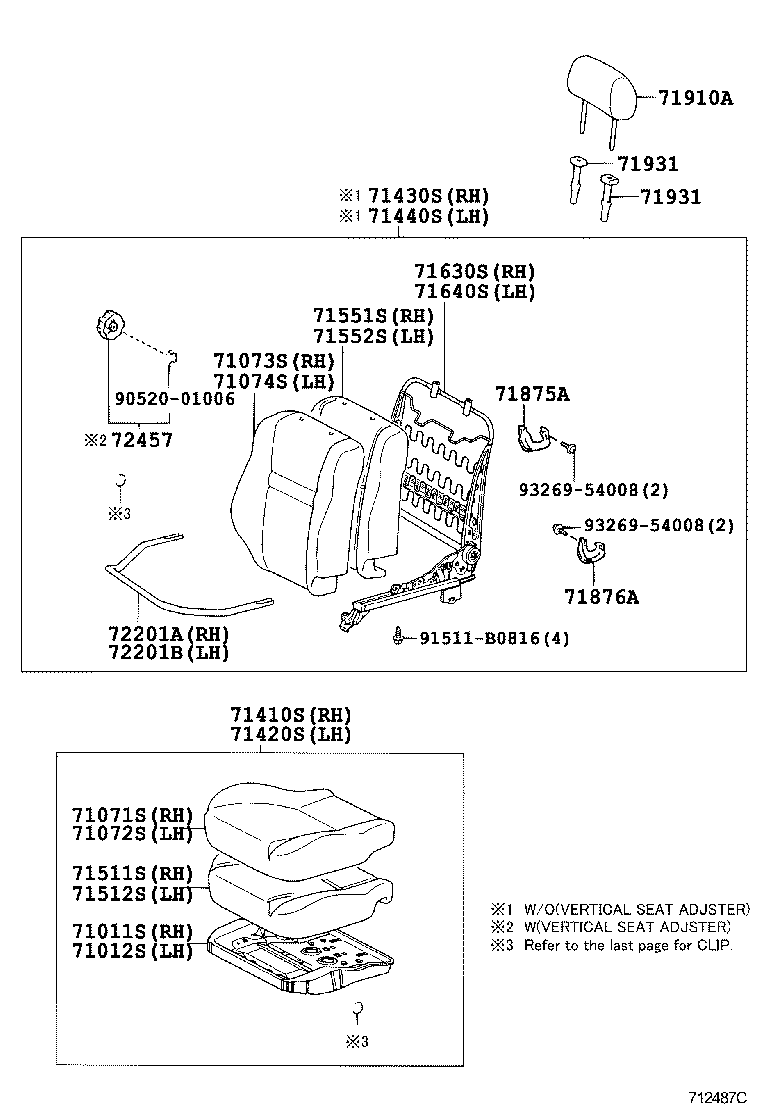

ILLUST NO. 1 OF 2(0212-0510)PHL,TAIW,TH ; (0305-0512)MA ; (0307-)VN

Click highlighted areas on diagram

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71630S 71640S 71875A 71876A 71910A 71931 71931 72201A 72201B 72457 9052001006 91511B0816 9326954008 9326954008
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-02040

NCP4#

 1
71011-02050

NCP42..ATM..15S;NCP42..(15E,15J)..TH

W(VERTICAL SEAT ADJUSTER)

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-02040

NCP4#..MA,PHL,TH,VN

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0D060B2

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71071-0D180B0

NCP42..15J..TH

W(VERTICAL SEAT ADJUSTER),STONE,TRIM12

 1
71071-0D060B3

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM12

 1
71071-0D180B1

NCP42..15J..TH

W(VERTICAL SEAT ADJUSTER),STONE,TRIM12

 1
71071-0D300B0

NCP42..15J..TH

STONE,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0D060B2

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71072-0D060B3

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM12

 1
71072-0D290B0

NCP42..15J..TH

STONE,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0D060B2

NCP4#..(13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71073-0D061B3

NCP4#..(13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71073-0D360B0

NCP42..15J..TH

STONE,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0D060B2

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71073-0D061B3

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71074-0D120B0

NCP42..15J..TH

STONE,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-0D060B2

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71410-0D060B3

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM12

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-0D060B2

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71420-0D060B3

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM12

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-0D060B4

NCP4#..(13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71430-0D061B0

NCP4#..(13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-0D030B2

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71440-0D031B0

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02090

NCP42..ATM..15S;NCP42..(15E,15J)..TH

W(VERTICAL SEAT ADJUSTER)

 1
71511-02100

NCP4#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-02100

NCP4#..MA,PHL,TH,VN

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02100

NCP42..15J..TAIW;NCP4#..MA,PHL,TH,VN

 1
71551-02130

NCP4#..PHL,TH

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-02100

NCP4#..MA,PHL,TH,VN

 1
71552-0D020

NCP4#..PHL,TH

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0D070

NCP4#..PHL,TH

 1
71630-0D031

NCP42..ATM..15S;NCP42..(15E,15J)..TH

W(VERTICAL SEAT ADJUSTER)

 1
71630-0D071

NCP4#..PHL,TH

 1
71630-0D031

NCP42..TH

W(VERTICAL SEAT ADJUSTER)

 1
71630-0D030

NCP42..ATM..15S;NCP42..(15E,15J)..TH

W(VERTICAL SEAT ADJUSTER)

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0D051

NCP42..TH

 1
71640-0D050

NCP4#..PHL,TH

 1
71640-0D051

NCP4#..PHL,TH

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-06060B1

NCP4#

DK.GRAY,TRIM1#

 2
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-06060B1

NCP4#

DK.GRAY,TRIM1#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-0D100B3

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM1#

 2
71910-0D100B4

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM12

 2
71910-0D360B0

NCP4#..(13E,13STD,15J)..(PHL,TH)

STONE,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02050B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

W(LOCK),STONE,TRIM1#

 2
71931-02030B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

W/O(LOCK),STONE,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02050B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

W(LOCK),STONE,TRIM1#

 2
71931-02030B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

W/O(LOCK),STONE,TRIM1#

 2
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-02020

NCP4#

 1
72211-02020

NCP4#

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-02020

NCP4#

 1
72211-02020

NCP4#

 1
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-12030B2

NCP42..ATM..15S;NCP42..(15E,15J)..TH

DK.GRAY,TRIM1#

 1
Common parts
90520-01006
91511-B0816
93269-54008

ILLUST NO. 2 OF 2(0210- )CHI,VN ; (0212-0510)PHL,TAIW,TH ; (0305-0512)MA

Click highlighted areas on diagram

diagram 71811D 71812D 71861 71861B 71862 71862B 72137 72138 72157A 72158 72261 72261A 72525A 72526A 9011910921 9011910921 9011910921 9356014008
Part # Description Qty Price
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0A010B3

NCP4#

DK.GRAY,TRIM1#,THAILAND SPEC

 1
71811-0A010B3

NCP42..ATM..15S;NCP42..(15E,15J)..TH

DK.GRAY,TRIM1#

 1
71811-02060B3

NCP4#

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0A010B3

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,THAILAND SPEC

 1
71812-02060B3

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-02040B2

NCP4#

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
71861-0A010B3

NCP4#

DK.GRAY,TRIM1#,THAILAND SPEC

 1
71861-0A010B3

NCP42..ATM..15S;NCP42..(15E,15J)..TH

THAILAND SPEC OR MALAYSIA SPEC,DK.GRAY,TRIM1#

 1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-07161B3

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0A010B3

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,THAILAND SPEC

 1
71862-02030B2

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
90467-07161B3

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-0D020B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-0D020B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-0D020B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-0D020B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
72261 - REINFORCEMENT, SEAT TRACK, RH
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72261A - REINFORCEMENT, SEAT TRACK, LH
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0A010B3

NCP4#

DK.GRAY,TRIM1#,THAILAND SPEC

 1
72525-0A010B3

NCP42..ATM..15S;NCP42..(15E,15J)..TH

DK.GRAY,TRIM1#

 1
72525-16010S1

NCP4#

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0A010B3

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,THAILAND SPEC

 1
72526-16010S1

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
Common parts
90119-10921
93560-14008

ILLUST NO. 2 OF 2(0510- )PHL,TAIW,TH,VN ; (0512- )MA

Click highlighted areas on diagram

diagram 58543D 58544D 71753 71811D 71812D 71861 71861B 71862 71862B 72137 72138 72157A 72158 72261 72261A 72525A 72526A 9011906915 9011910921 9011910921 9011910921 9356014008
Part # Description Qty Price
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0A010B3

NCP4#

DK.GRAY,TRIM1#,THAILAND SPEC

 1
71811-0A010B3

NCP42..ATM..15S;NCP42..(15E,15J)..TH

DK.GRAY,TRIM1#

 1
71811-02060B3

NCP4#

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0A010B3

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,THAILAND SPEC

 1
71812-02060B3

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-02040B2

NCP4#

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
71861-0A010B3

NCP4#

DK.GRAY,TRIM1#,THAILAND SPEC

 1
71861-0A010B3

NCP42..ATM..15S;NCP42..(15E,15J)..TH

THAILAND SPEC OR MALAYSIA SPEC,DK.GRAY,TRIM1#

 1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-07161B3

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0A010B3

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,THAILAND SPEC

 1
71862-02030B2

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
90467-07161B3

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-0D020B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-0D020B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-0D020B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-0D020B0

NCP42..PHL,VN;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
72261 - REINFORCEMENT, SEAT TRACK, RH
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72261A - REINFORCEMENT, SEAT TRACK, LH
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72261-0D030

NCP4#..MA,PHL,TH,VN

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0A010B3

NCP4#

DK.GRAY,TRIM1#,THAILAND SPEC

 1
72525-0A010B3

NCP42..ATM..15S;NCP42..(15E,15J)..TH

DK.GRAY,TRIM1#

 1
72525-16010S1

NCP4#

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0A010B3

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,THAILAND SPEC

 1
72526-16010S1

NCP4#..MA,PHL,TH,VN

DK.GRAY,TRIM1#,EXCEPT THAILAND

 1
Common parts
90119-06915
90119-10921
93560-14008
