NCP42R-EEMRKT (2002)

Toyota Vios/Soluna Vios

Production Dec 2002 - Feb 2007
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )RHD

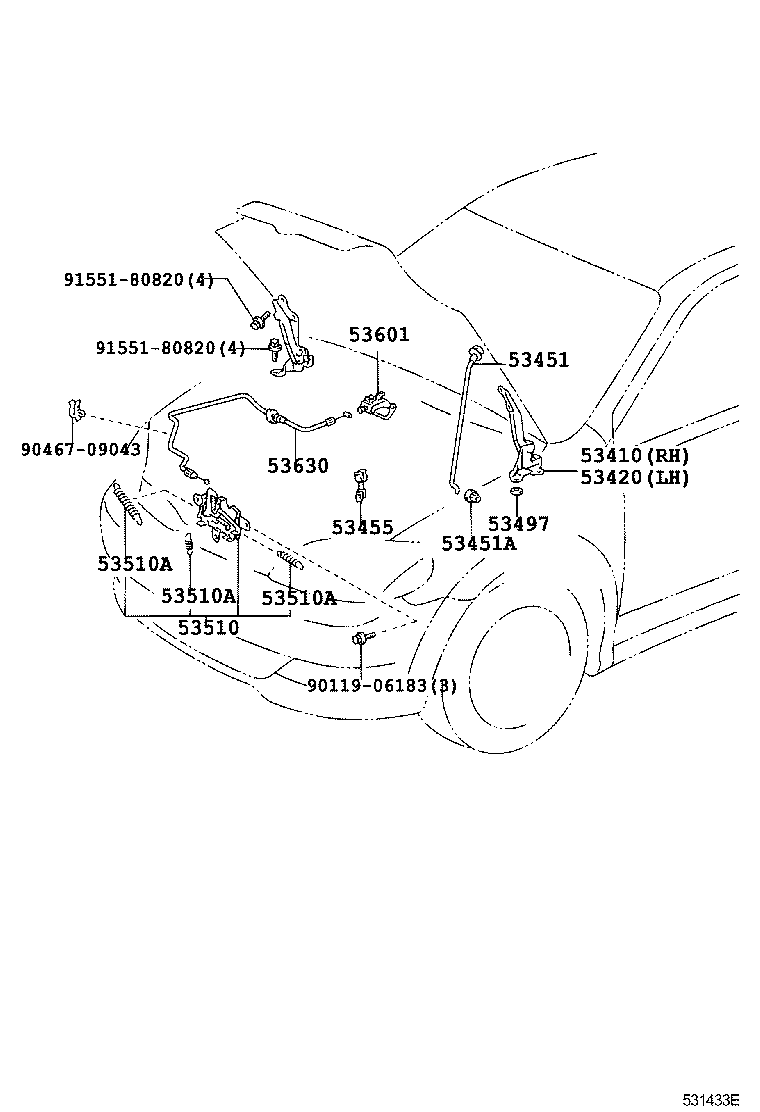

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53497 53510 53510A 53510A 53510A 53601 53630 9011906183 9046709043 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0D040

NCP4#

 1
53420 - HINGE ASSY, HOOD, LH
53420-0D040

NCP4#

 1
53451 - ROD, HOOD SUPPORT
53440-0D010

NCP4#

 1
53440-0D010

NCP4#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15034

NCP4#

 1
90480-15034

NCP4#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-0D030

NCP4#

 1
53455-0D030

NCP4#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-0D020

NCP4#..PHL,TAIW,TH,VN

T=1.0

 4
53497-0D060

NCP4#..PHL,TAIW,TH,VN

T=2.0

 4
53497-0D060

NCP4#

T=2.0

 4
53497-0D020

NCP4#

T=1.0

 4
53497-0D030

NCP4#

T=1.5

 4
53497-0D030

NCP4#..PHL,TAIW,TH,VN

T=1.5

 4
53510 - LOCK ASSY, HOOD
53510-0D100

NCP42..TH

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

NCP42..RHD

WD=0.9,CW=21

 1
90506-18067

NCP4#

WD=1.8,CW=13

 1
90506-12063

NCP4#

WD=1.2,CW=8.5

 1
90506-09055

NCP4#

WD=0.9,CW=21

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

NCP42..RHD

WD=0.9,CW=21

 1
90506-18067

NCP4#

WD=1.8,CW=13

 1
90506-12063

NCP4#

WD=1.2,CW=8.5

 1
90506-09055

NCP4#

WD=0.9,CW=21

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

NCP42..RHD

WD=0.9,CW=21

 1
90506-18067

NCP4#

WD=1.8,CW=13

 1
90506-12063

NCP4#

WD=1.2,CW=8.5

 1
90506-09055

NCP4#

WD=0.9,CW=21

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-02030B0

NCP42..PHL;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)

STONE,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0D040

NCP4#..PHL,TH

 1
53630-0D040

NCP4#..PHL,TH

 1
Common parts
90119-06183
90467-09043
91551-80820
