AXP42L-EEPQKC (2002)
Toyota Vios/Soluna Vios
ILLUST NO. 1 OF 3(0210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

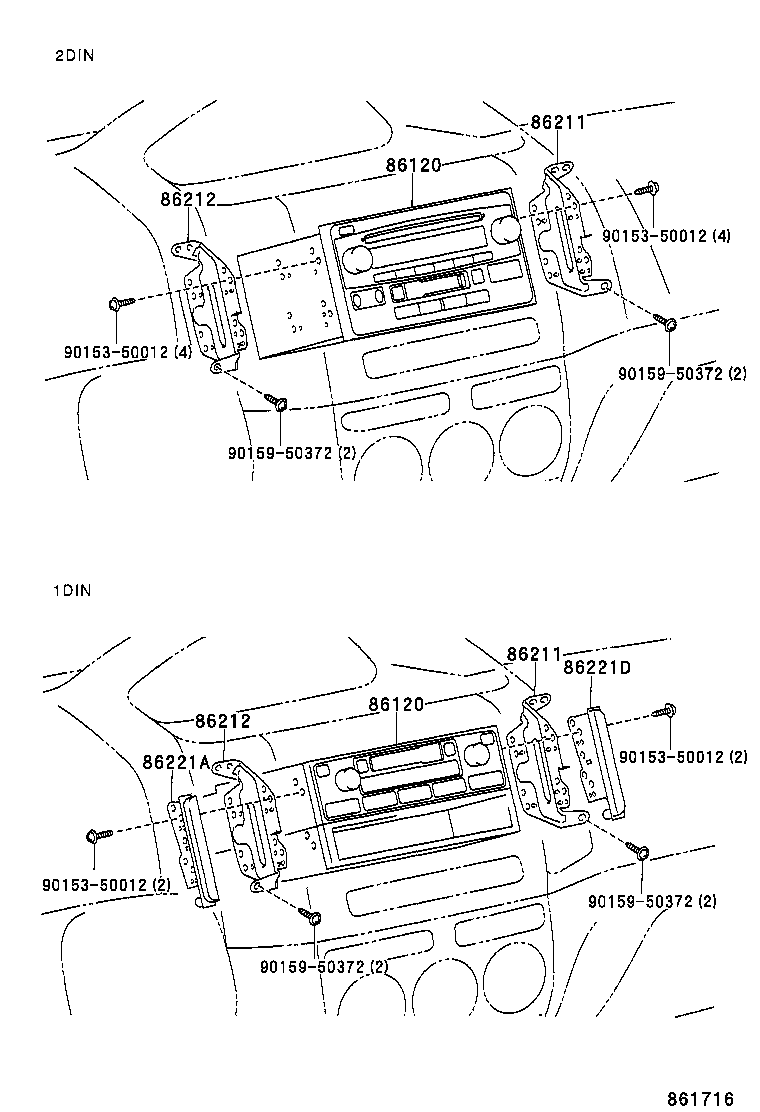

| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-0D080 |

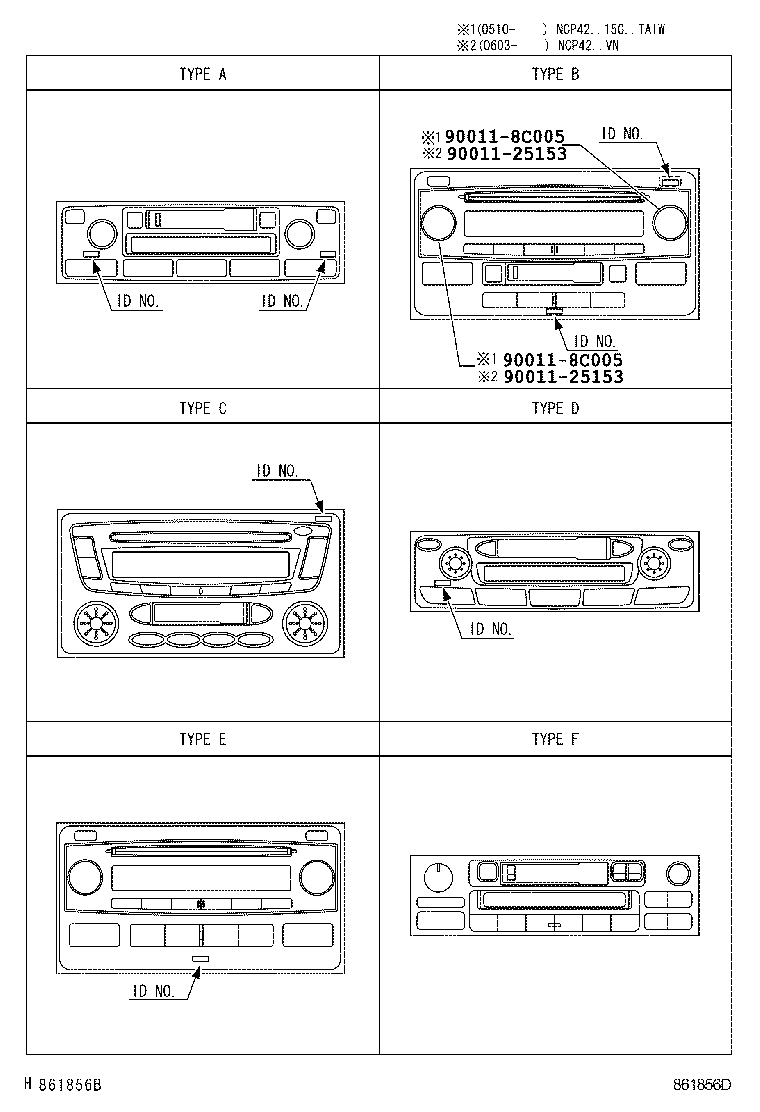

AXP4#..DLX,DLXI,GLI,GLXI FUJITSU TEN,ID=17415,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-0D230 |
AXP42..GLS,GLXI MATSUSHITA,ID=57820,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-0D280 |

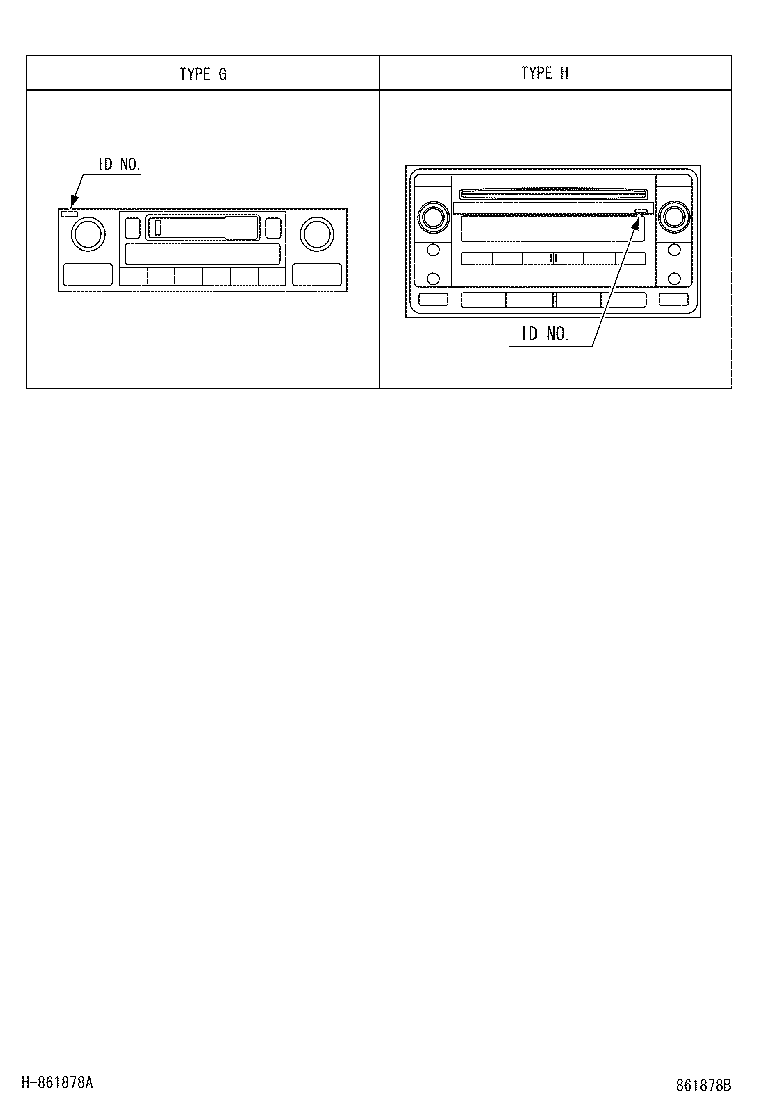

AXP4# FUJITSU TEN,ID=12829,TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 86120-0D290 |
AXP4#..15GLI,GL,GLS PIONEER,ID=P7861,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-0D090 |
AXP4#..15GLI,GL FUJITSU TEN,ID=17813,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-0D080 |
AXP4#..DLX,DLXI,GLI,GLXI FUJITSU TEN,ID=17415,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-0D230 |
AXP42..GLS,GLXI MATSUSHITA,ID=57820,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-0D280 |
AXP4# FUJITSU TEN,ID=12829,TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 86120-0D290 |
AXP4#..15GLI,GL,GLS PIONEER,ID=P7861,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-0D090 |
AXP4#..15GLI,GL FUJITSU TEN,ID=17813,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-0D010 |
AXP4# |
1 | ||
| 86211-0D010 |
AXP4# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-0D010 |
AXP4# |
1 | ||
| 86211-0D010 |
AXP4# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-0D010 |
AXP4# |
1 | ||
| 86212-0D010 |
AXP4# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-0D010 |
AXP4# |
1 | ||
| 86212-0D010 |
AXP4# |
1 | ||
| 86221A - PANEL, RADIO RECEIVER | ||||
| 86221-52050 |
AXP4#..DLX,DLXI,GLI,GLXI |
1 | ||
| 86221D - PANEL, RADIO RECEIVER | ||||
| 86221-52060 |
AXP4#..DLX,DLXI,GLI,GLXI |
1 | ||
| Common parts | ||||
| 90153-50012 | ||||
| 90159-50372 | ||||
ILLUST NO. 3 OF 3(0210- )

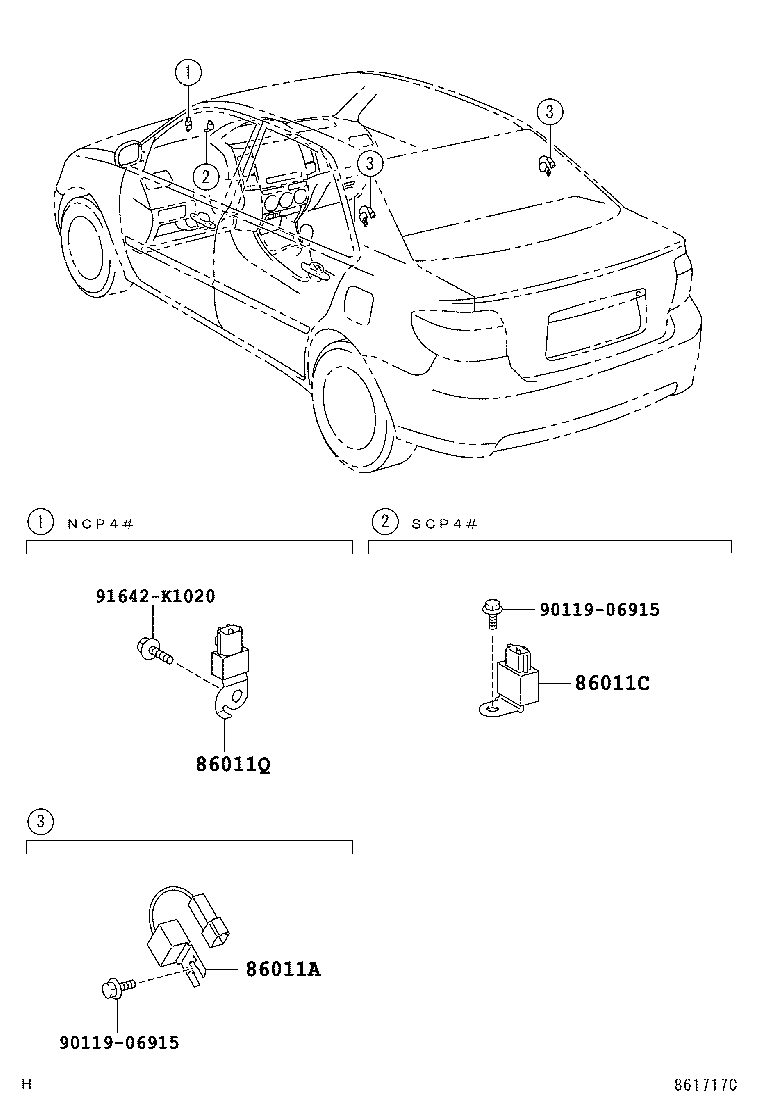

CONDENSER & NOISE FILTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90084-98008 |
AXP4# |
1 | ||
| 90084-98008 |
AXP4# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91642-K1020 | ||||
ILLUST NO. 2 OF 3(0210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90011-25153 | ||||
| 90011-8C005 | ||||
ILLUST NO. 2 OF 3(0210- )
| Part # | Description | Qty | Price |
|---|
