AXP42L-EEPQKC (2002)
Toyota Vios/Soluna Vios
Production
Oct 2002
-
Aug 2006
Engine
5AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0210- )AXP4#,SCP4#

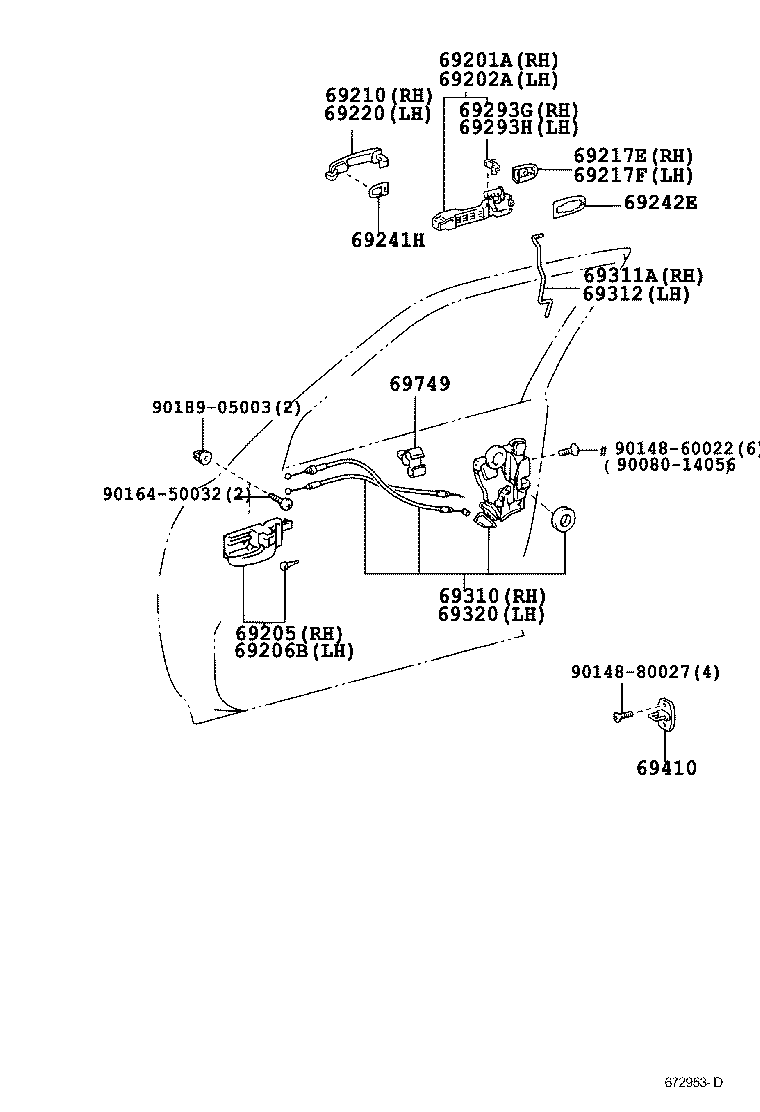

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-06020 |
AXP4# |
1 | ||
| 69201-06020 |
AXP4# |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-06020 |
AXP4# |
1 | ||
| 69202-06020 |
AXP4# |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-0D050E0 |
AXP42..GLI,GLXI DK.BROWN,TRIM0# |
1 | ||
| 69205-0D050E0 |
AXP42..15GLI,GLXI DK.BROWN,TRIM0# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-0D050E0 |
AXP42..GLI,GLXI DK.BROWN,TRIM0# |
1 | ||
| 69206-0D050E0 |
AXP42..15GLI,GLXI DK.BROWN,TRIM0# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-02070 |
AXP42..GLXI PLATED |
1 | ||
| 69210-02070 |
AXP42 PLATED |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-12010 |
AXP42..GLXI *CR |
1 | ||
| 69217-12010 |
AXP42 *CR |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-12010 |
AXP42..GLXI *CR |
1 | ||
| 69217-12010 |
AXP42 *CR |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-02070 |
AXP42..GLXI PLATED |
1 | ||
| 69210-02070 |
AXP42 PLATED |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-42020 |
AXP4# |
2 | ||
| 69241-42020 |
AXP4# |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-42010 |
AXP4# |
2 | ||
| 69242-42010 |
AXP4# |
2 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
AXP4# |
1 | ||
| 69293-12030 |
AXP4# |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
AXP4# |
1 | ||
| 69293-12040 |
AXP4# |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-0D080 |
AXP4# W(POWER DOOR LOCK) |
1 | ||
| 69030-0D080 |
AXP4# |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-0D040 |
AXP4# |
1 | ||
| 69311-0D040 |
AXP4# |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-0D040 |
AXP4# |
1 | ||
| 69312-0D040 |
AXP4# |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-0D080 |
AXP4# W(POWER DOOR LOCK) |
1 | ||
| 69040-0D080 |
AXP4# |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-0D020 |
AXP4# |
2 | ||
| 69410-0D020 |
AXP4# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32040 |
AXP4# |
2 | ||
| 69749-32040 |
AXP4# |
2 | ||
| Common parts | ||||
| 90080-14056 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90164-50032 | ||||
| 90189-05003 | ||||
