AXP42L-EEPQKC (2002)
Toyota Vios/Soluna Vios

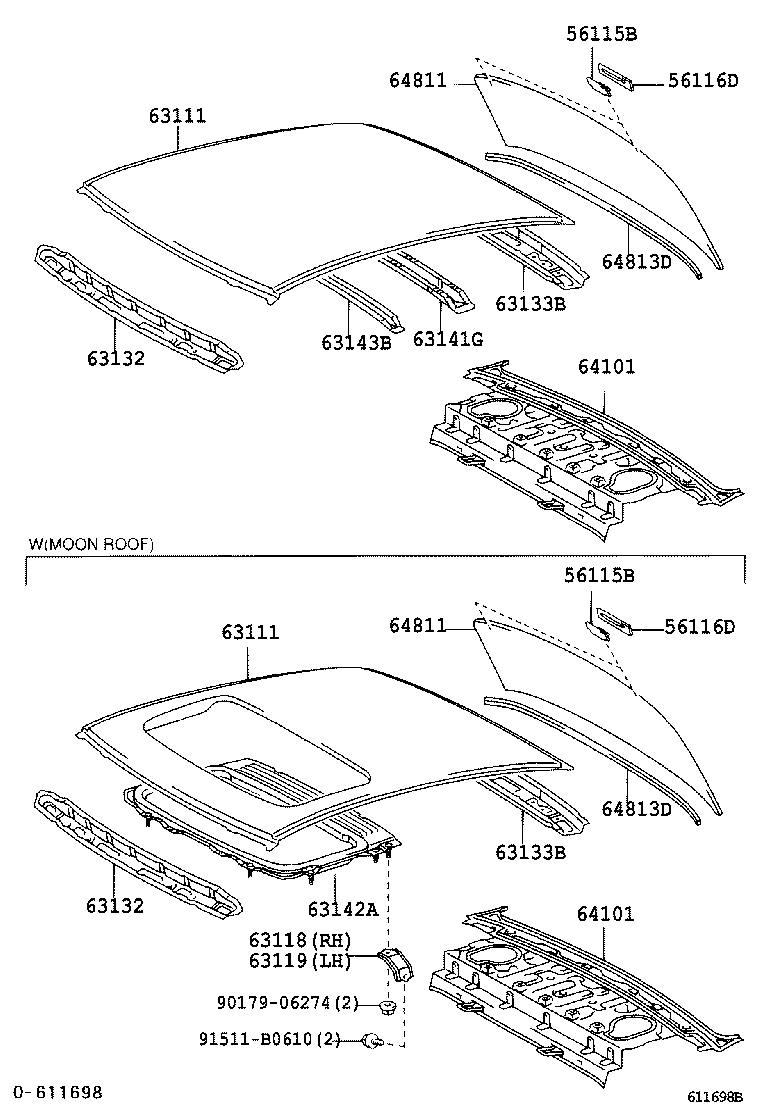

ILLUST NO. 1 OF 2(0210- )AXP4#,SCP4#
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30100 |
AXP4# |
2 | ||
| 56115-30100 |
AXP4# |
2 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30100 |
AXP4# |
2 | ||
| 56115-30100 |
AXP4# |
2 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
AXP4# |
2 | ||
| 56116-22050 |
AXP4# |
2 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
AXP4# |
2 | ||
| 56116-22050 |
AXP4# |
2 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0D030 |
AXP4# |
1 | ||
| 63111-0D040 |
AXP42..GLI,GLXI W(MOON ROOF) |
1 | ||
| 63111-0D030 |
AXP4#..15GLI,GL,GLS |
1 | ||
| 63111-0D040 |
AXP42..GLS,GLXI W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-0D030 |
AXP4# |
1 | ||
| 63111-0D040 |
AXP42..GLI,GLXI W(MOON ROOF) |
1 | ||
| 63111-0D030 |
AXP4#..15GLI,GL,GLS |
1 | ||
| 63111-0D040 |
AXP42..GLS,GLXI W(MOON ROOF) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-0D010 |
AXP42..GLI,GLXI |
1 | ||
| 63118-0D010 |
AXP42..GLS,GLXI |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-0D010 |
AXP42..GLI,GLXI |
1 | ||
| 63118-0D010 |
AXP42..GLS,GLXI |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-0D020 |
AXP4# |
1 | ||
| 63132-0D020 |
AXP4# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-0D020 |
AXP4# |
1 | ||
| 63132-0D020 |
AXP4# |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-0D010 |
AXP4# |
1 | ||
| 63133-0D010 |
AXP4# |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-0D010 |
AXP4# |
1 | ||
| 63133-0D010 |
AXP4# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-0D020 |
AXP4# |
1 | ||
| 63141-0D020 |
AXP4#..15GLI,GL,GLS |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12100 |
AXP42..GLI,GLXI |
1 | ||
| 63142-12100 |
AXP42..GLS,GLXI |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-0D020 |
AXP4# |
1 | ||
| 63143-0D020 |
AXP4#..15GLI,GL,GLS |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-0D010 |
AXP4# |
1 | ||
| 64101-0D010 |
AXP4# |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-0D010 |
AXP4# |
1 | ||
| 64101-0D010 |
AXP4# |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-0D010 |
AXP4# *EHTT,T=3.1,GREEN |
1 | ||
| 64811-0D020 |
AXP4# *EHTT,T=3.1,GREEN,COLD SPEC |
1 | ||
| 64811-0D021 |
AXP4# *EHTT,T=3.1,GREEN,COLD SPEC |
1 | ||
| 64811-0D011 |
AXP4# *EHTT,T=3.1,GREEN |
1 | ||
| 64811-0D021 |
AXP4# *EHTT,T=3.1,GREEN,COLD SPEC |
1 | ||
| 64811-0D011 |
AXP4# *EHTT,T=3.1,GREEN |
1 | ||
| 64811-0D021 |
AXP4# *EHTT,T=3.1,GREEN |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-0D010 |
AXP4# *EHTT,T=3.1,GREEN |
1 | ||
| 64811-0D020 |
AXP4# *EHTT,T=3.1,GREEN,COLD SPEC |
1 | ||
| 64811-0D021 |
AXP4# *EHTT,T=3.1,GREEN,COLD SPEC |
1 | ||
| 64811-0D011 |
AXP4# *EHTT,T=3.1,GREEN |
1 | ||
| 64811-0D021 |
AXP4# *EHTT,T=3.1,GREEN,COLD SPEC |
1 | ||
| 64811-0D011 |
AXP4# *EHTT,T=3.1,GREEN |
1 | ||
| 64811-0D021 |
AXP4# *EHTT,T=3.1,GREEN |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-0D010 |
AXP4# |
1 | ||
| 64813-0D010 |
AXP4# |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-0D010 |
AXP4# |
1 | ||
| 64813-0D010 |
AXP4# |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91511-B0610 | ||||

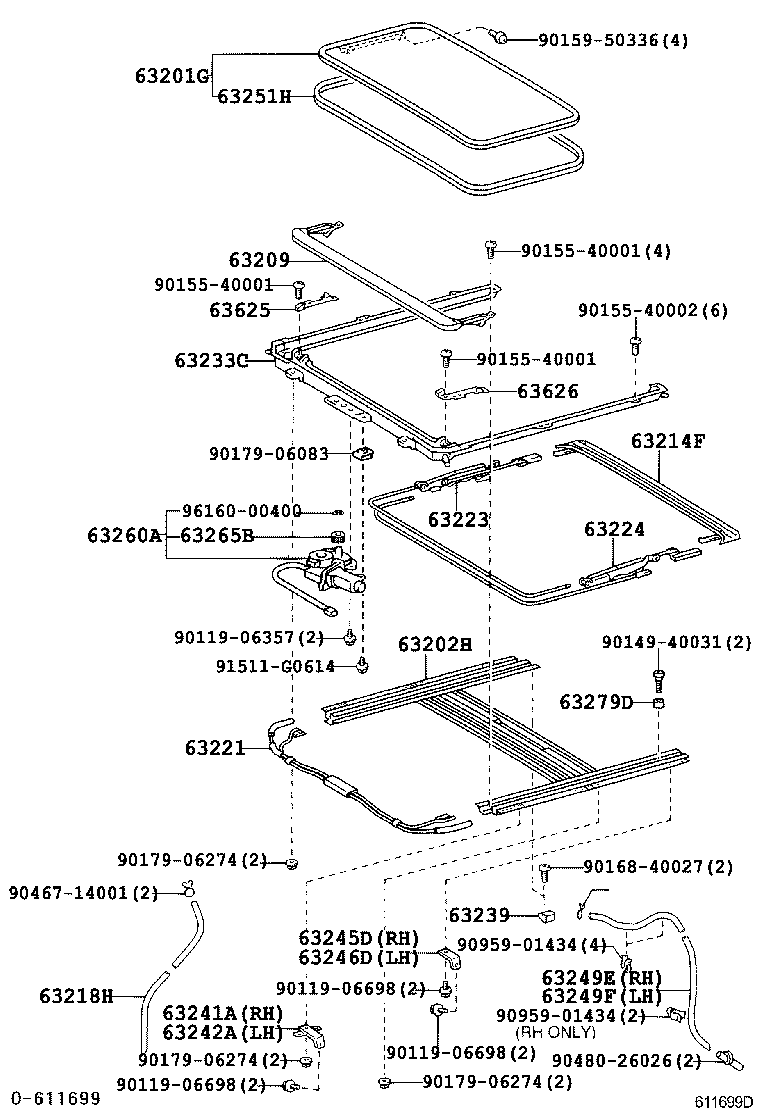

ILLUST NO. 2 OF 2(0210-0511)GLI,GLXI ; (0303- )15E,15G..TAIW ;(0511- )GLS,GLXI
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-12260 |
AXP42..GLI,GLXI *TT,T=4.0,GRAY |
1 | ||
| 63201-12262 |
AXP42..GLI,GLXI *TT,T=4.0,GRAY |
1 | ||
| 63201-12261 |
AXP42..GLI,GLXI *TT,T=4.0,GRAY |
1 | ||
| 63201-12262 |
AXP42..GLS,GLXI *TT,T=4.0,GRAY |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-0D020 |
AXP42..GLS,GLXI |
1 | ||
| 63202-0D020 |
AXP42..GLI,GLXI |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-52060 |
AXP42..GLS,GLXI |
1 | ||
| 63209-52060 |
AXP42..GLI,GLXI |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-02030 |
AXP42..GLI,GLXI |
1 | ||
| 63214-02030 |
AXP42..GLS,GLXI |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-52090 |
AXP42..GLI,GLXI |
2 | ||
| 63249-52090 |
AXP42..GLS,GLXI |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-52020 |
AXP42..GLI,GLXI |
1 | ||
| 63221-52020 |
AXP42..GLS,GLXI |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-02030 |
AXP42..GLS,GLXI |
1 | ||
| 63223-02030 |
AXP42..GLI,GLXI |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-02030 |
AXP42..GLS,GLXI |
1 | ||
| 63224-02030 |
AXP42..GLI,GLXI |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-02030 |
AXP42..GLI,GLXI |
1 | ||
| 63233-02030 |
AXP42..GLS,GLXI |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
AXP42..GLI,GLXI |
2 | ||
| 63239-12030 |
AXP42..GLS,GLXI |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-0D020 |
AXP42..GLI,GLXI |
1 | ||
| 63241-0D020 |
AXP42..GLS,GLXI |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-0D020 |
AXP42..GLI,GLXI |
1 | ||
| 63241-0D020 |
AXP42..GLS,GLXI |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63243-0D020 |
AXP42..GLS,GLXI |
1 | ||
| 63243-0D020 |
AXP42..GLI,GLXI |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63243-0D020 |
AXP42..GLI,GLXI |
1 | ||
| 63243-0D020 |
AXP42..GLS,GLXI |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63247-52020 |
AXP42..GLI,GLXI |
1 | ||
| 63247-52020 |
AXP42..GLS,GLXI |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63248-52010 |
AXP42..GLS,GLXI |
1 | ||
| 63248-52010 |
AXP42..GLI,GLXI |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-12161 |
AXP42..GLI,GLXI |
1 | ||
| 63251-12161 |
AXP42..GLS,GLXI |
1 | ||
| 63251-12160 |
AXP42..GLI,GLXI |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-52040 |
AXP42..GLS,GLXI |
1 | ||
| 63260-52040 |
AXP42..GLI,GLXI |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12040 |
AXP42..GLS,GLXI |
1 | ||
| 63265-12040 |
AXP42..GLI,GLXI |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
AXP42..GLI,GLXI |
2 | ||
| 63279-12030 |
AXP42..GLS,GLXI |
2 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-12050 |
AXP42..GLI,GLXI |
1 | ||
| 63625-12050 |
AXP42..GLS,GLXI |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-12050 |
AXP42..GLI,GLXI |
1 | ||
| 63626-12050 |
AXP42..GLS,GLXI |
1 | ||
| Common parts | ||||
| 90119-06357 | ||||
| 90119-06698 | ||||
| 90149-40031 | ||||
| 90155-40001 | ||||
| 90155-40002 | ||||
| 90159-50336 | ||||
| 90168-40027 | ||||
| 90179-06083 | ||||
| 90179-06274 | ||||
| 90467-14001 | ||||
| 90480-26026 | ||||
| 90959-01434 | ||||
| 91511-G0614 | ||||
| 96160-00400 | ||||
