AXP42L-EEPQKC (2002)
Toyota Vios/Soluna Vios
Production
Oct 2002
-
Aug 2006
Engine
5AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0210- )AXP4#,SCP4#

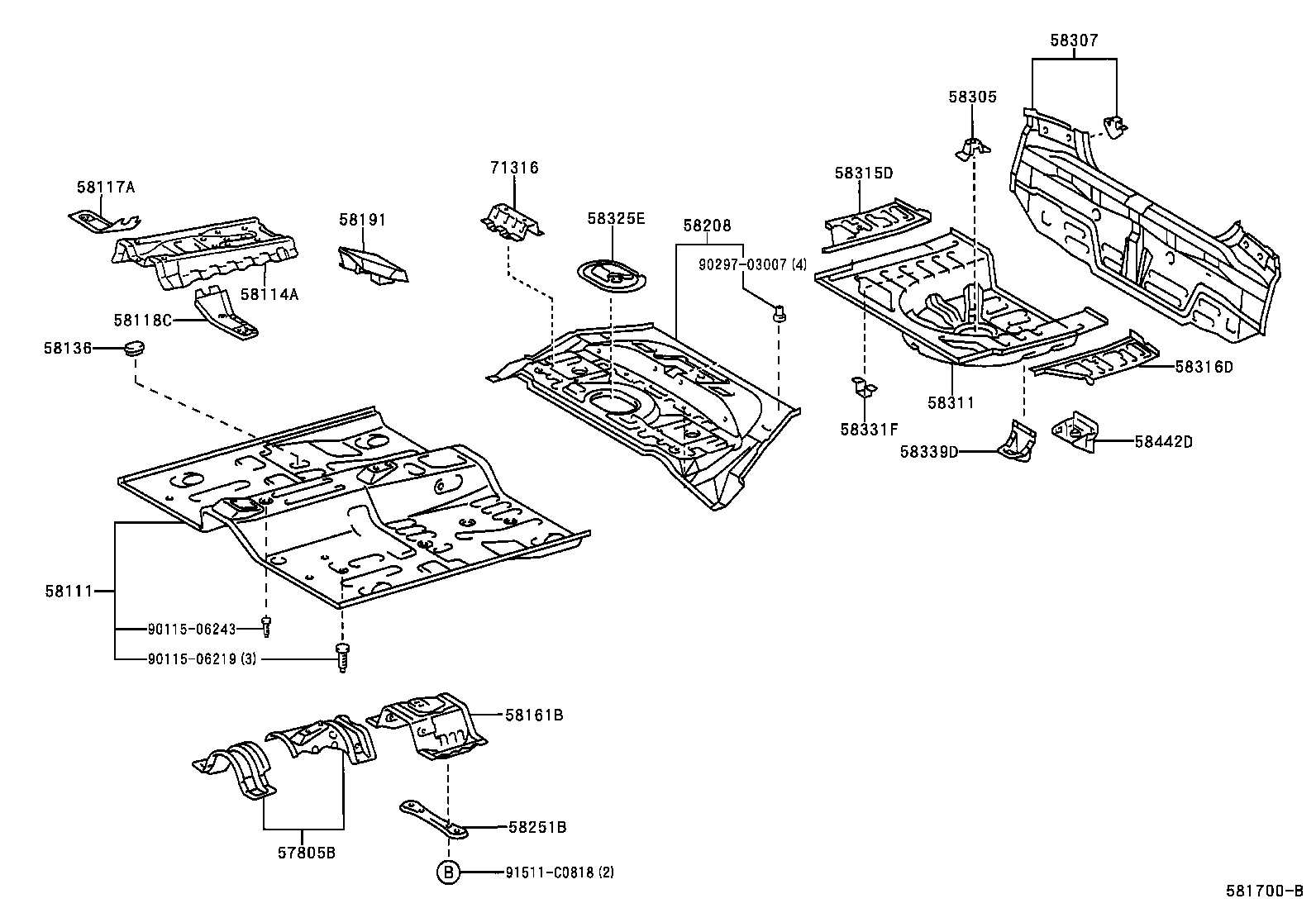

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-52090 |
AXP4# |
1 | ||
| 57805-52090 |
AXP4# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-0D020 |
AXP4# |
1 | ||
| 58111-0D020 |
AXP4# |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-0D020 |
AXP4# |
1 | ||
| 58114-0D020 |
AXP4# |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-52030 |
AXP4# |
1 | ||
| 58117-52030 |
AXP4# |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-52020 |
AXP4# |
1 | ||
| 58118-52020 |
AXP4# |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-52010 |
AXP4# |
2 | ||
| 58136-52010 |
AXP4# |
2 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-52030 |
AXP4# |
1 | ||
| 58161-52030 |
AXP4# |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58190-52010 |
AXP4# |
1 | ||
| 58190-52010 |
AXP4# |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-0D020 |
AXP4# |
1 | ||
| 58211-0D020 |
AXP4# |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-52010 |
AXP4# |
1 | ||
| 58251-52010 |
AXP4# |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-33010 |
AXP4# |
1 | ||
| 58351-33010 |
AXP4# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-0D020 |
AXP4# |
1 | ||
| 58307-0D020 |
AXP4# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-0D040 |
AXP4# |
1 | ||
| 58311-0D040 |
AXP4# |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-0D010 |
AXP4# |
1 | ||
| 58315-0D010 |
AXP4# |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-0D010 |
AXP4# |
1 | ||
| 58316-0D010 |
AXP4# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52010 |
AXP4# |
1 | ||
| 58325-52010 |
AXP4# |
1 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10010 |
AXP4# |
1 | ||
| 58331-10010 |
AXP4# |
1 | ||
| 58339D - BRACKET, JACK UP | ||||
| 58339-52010 |
AXP4# |
1 | ||
| 58339-52010 |
AXP4# |
1 | ||
| 58442D - COVER, JACK | ||||
| 58442-0D010 |
AXP4# |
1 | ||
| 58442-0D010 |
AXP4# |
1 | ||
| 71316 - BRACKET, REAR SEAT SUPPORT | ||||
| 71316-0D010 |
AXP4# |
2 | ||
| 71316-0D010 |
AXP4# |
2 | ||
| Common parts | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 90297-03007 | ||||
| 91511-C0818 | ||||
