AXP42L-EEPHKC (2005)

Toyota Vios/Soluna Vios

Production Nov 2005 - Aug 2006
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0210-0608)AXP4#

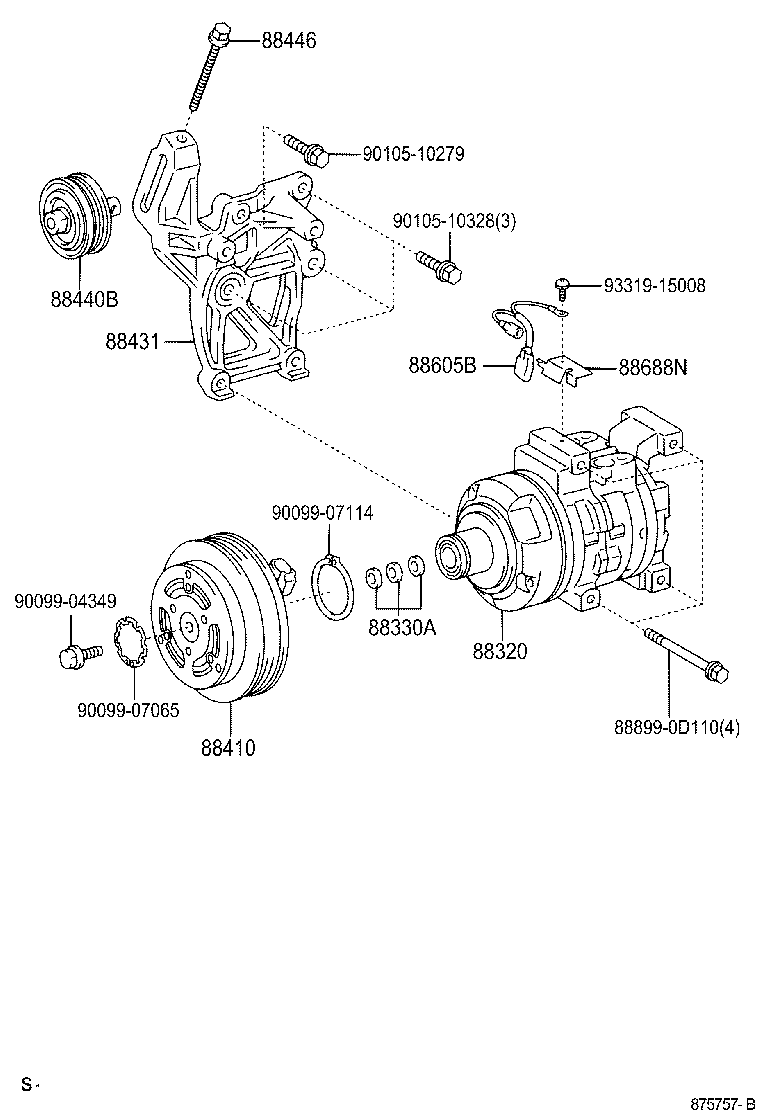

Click highlighted areas on diagram

diagram 88320 88330A 88410 88431 88440B 88446 88605B 88688N 888990D110 9009904349 9009907065 9009907114 9010510279 9010510328 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-0D020

AXP4#

 1
88320-0D020

AXP4#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AXP4#

 1
88335-14020

AXP4#

 1
88410 - CLUTCH ASSY, MAGNET
88410-0D040

AXP4#

 1
88410-0D090

AXP4#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0D020

AXP4#

 1
88431-0D020

AXP4#

 1
88440B - PULLEY ASSY, IDLE
88440-0D020

AXP4#

 1
88440-0D020

AXP4#

 1
88446 - BOLT, IDLE PULLEY
88446-0D010

AXP4#

 1
88446-0D010

AXP4#

 1
88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-0D050

AXP4#

 1
88605-0D050

AXP4#

 1
88688N - BRACKET, COOLER
88688-0D190

AXP4#

 1
88688-25200

AXP4#

 1
Common parts
88899-0D110
90099-04349
90099-07065
90099-07114
90105-10279
90105-10328
93319-15008
