AXP42L-EEPHKC (2005)

Toyota Vios/Soluna Vios

Production Nov 2005 - Aug 2006
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

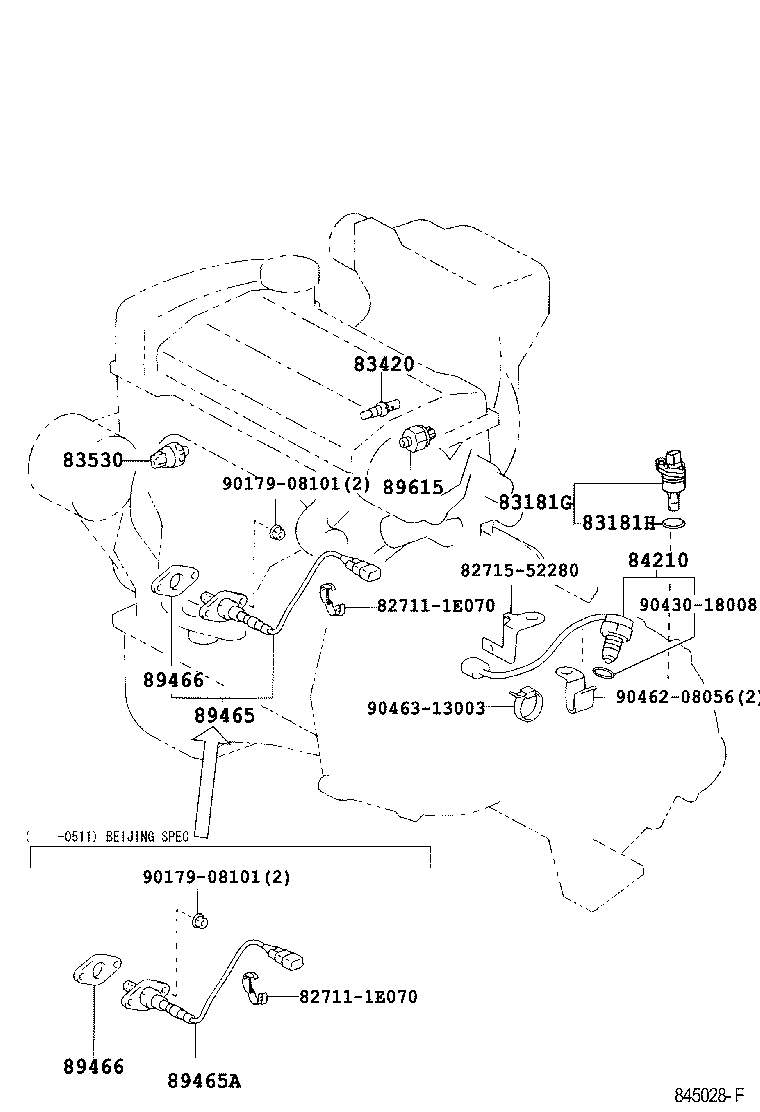

ILLUST NO. 1 OF 6(0210-0608)AXP4#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 827111E070 827111E070 8271552280 83181G 83181H 83420 83530 84210 89465 89465A 89466 89466 89615 9017908101 9017908101 9043018008 9046208056 9046313003
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20040

AXP4#

 1
83420-20040

AXP4#

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020

AXP4#

YAZAKI

 1
83530-28020

AXP4#

DENSO

 1
83530-60020

AXP4#

YAZAKI

 1
83530-28020

AXP4#

DENSO

 1
89465 - SENSOR, OXYGEN
89465-59035

AXP4#

 1
89465-59035

AXP4#

 1
89465-09420

AXP4#

BEIJING SPEC

 1
89466 - GASKET, OXYGEN SENSOR
89466-20020

AXP4#

 1
89466-20020

AXP4#

 1
89466 - GASKET, OXYGEN SENSOR
89466-20020

AXP4#

 1
89466-20020

AXP4#

 1
89615 - SENSOR, KNOCK CONTROL
89615-52010

AXP4#

 1
89615-52010

AXP4#

 1
Common parts
82711-1E070
82715-52280
90179-08101
90430-18008
90462-08056
90463-13003
