AXP42L-EEPHKC (2005)

Toyota Vios/Soluna Vios

Production Nov 2005 - Aug 2006
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 8(0210-0608)AXP4#

Click highlighted areas on diagram

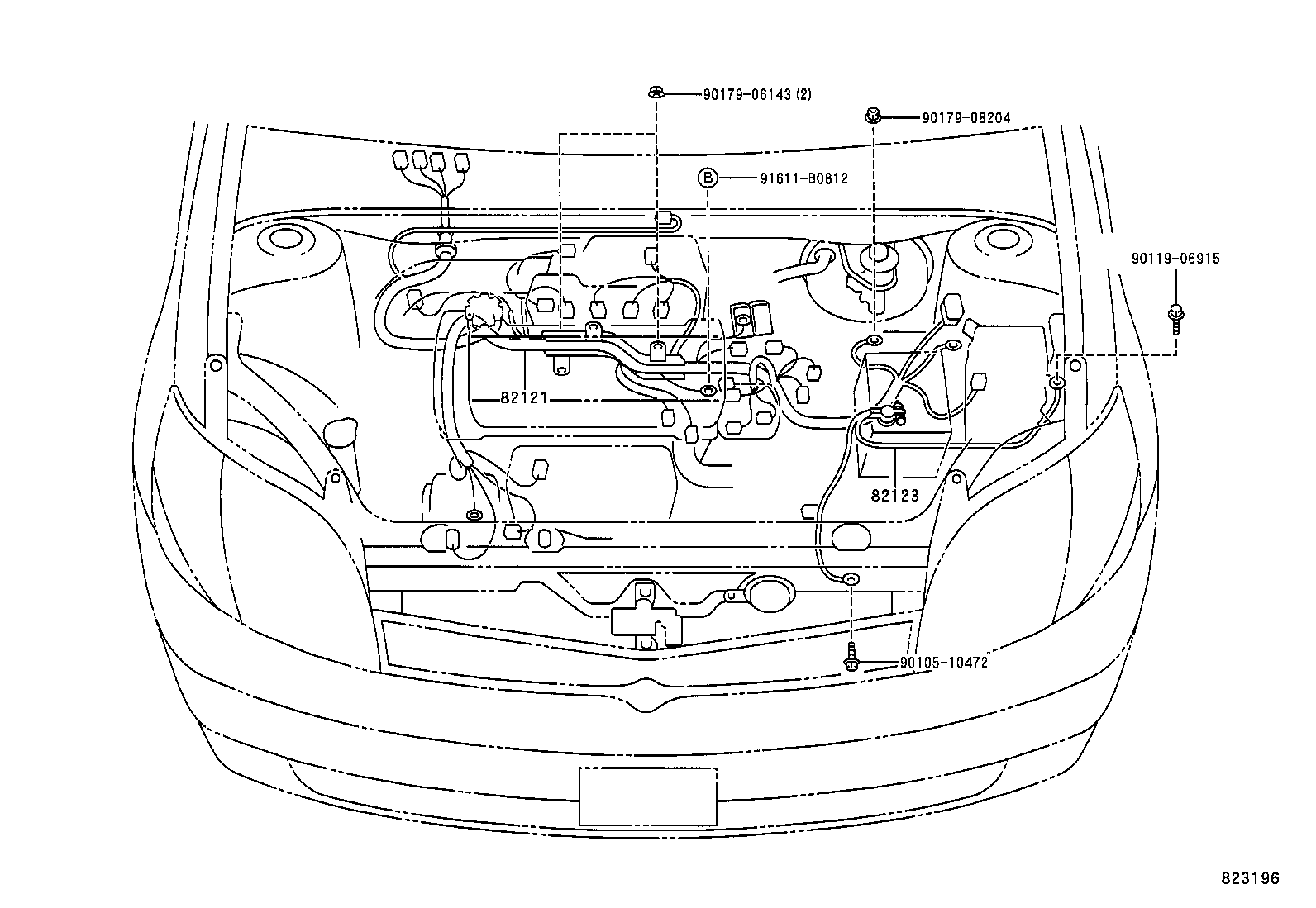

ENGINE

diagram 82121 82123 9010510472 9011906915 9017906143 9017908204 91611B0812
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0D110

AXP4#..ATM

 1
82121-0D570

AXP4#..ATM

 1
82123 - WIRE, ENGINE, NO.3
82123-0D040

AXP4#..ATM

 1
82123-0D040

AXP4#..ATM

 1
Common parts
90105-10472
90119-06915
90179-06143
90179-08204
91611-B0812

ILLUST NO. 1 OF 8(0511- )AXP4#,SCP4#

Click highlighted areas on diagram

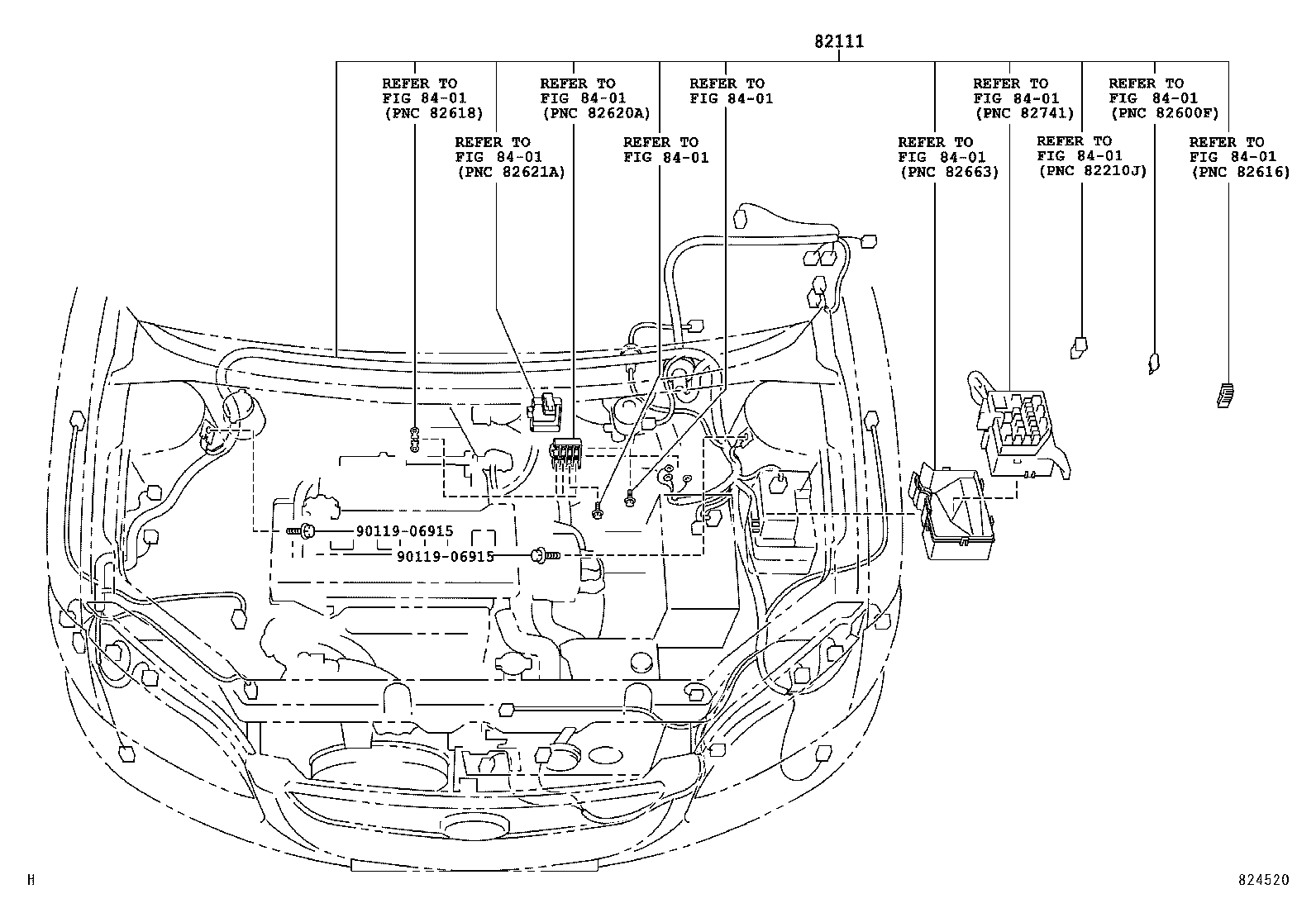

ENGINE ROOM

diagram 82111 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-0D150

AXP4#..GL,GLI,GLXI

W(ABS)

 1
82111-0DC20

AXP4#

 1
Common parts
90119-06915
Linked diagrams
8401
