AXP42L-EEPHKC (2005)

Toyota Vios/Soluna Vios

Production Nov 2005 - Aug 2006
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0210-0608)AXP4#

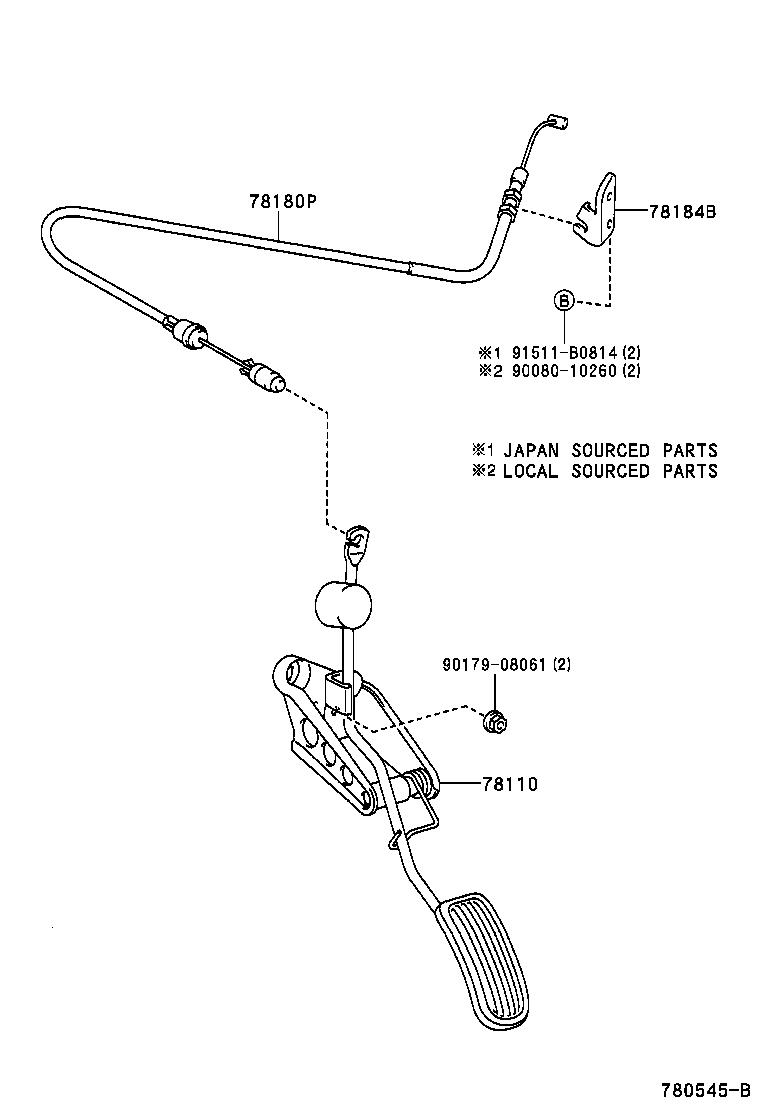

Click highlighted areas on diagram

diagram 78110 78180P 78184B 9008010260 9017908061 91511B0814
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-0D020

AXP4#

 1
78120-0D020

AXP4#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-0D030

AXP4#

 1
78180-0D030

AXP4#

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-52020

AXP4#

(J)

 1
78184-52020

AXP4#

(J)

 1
78184-0D010

AXP4#

(L)

 1
78184-0D010

AXP4#

(L)

 1
Common parts
90080-10260
90179-08061
91511-B0814
