AXP42L-EEPHKC (2005)

Toyota Vios/Soluna Vios

Production Nov 2005 - Aug 2006
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0210-0608)AXP4# ; (0608- )SCP4#

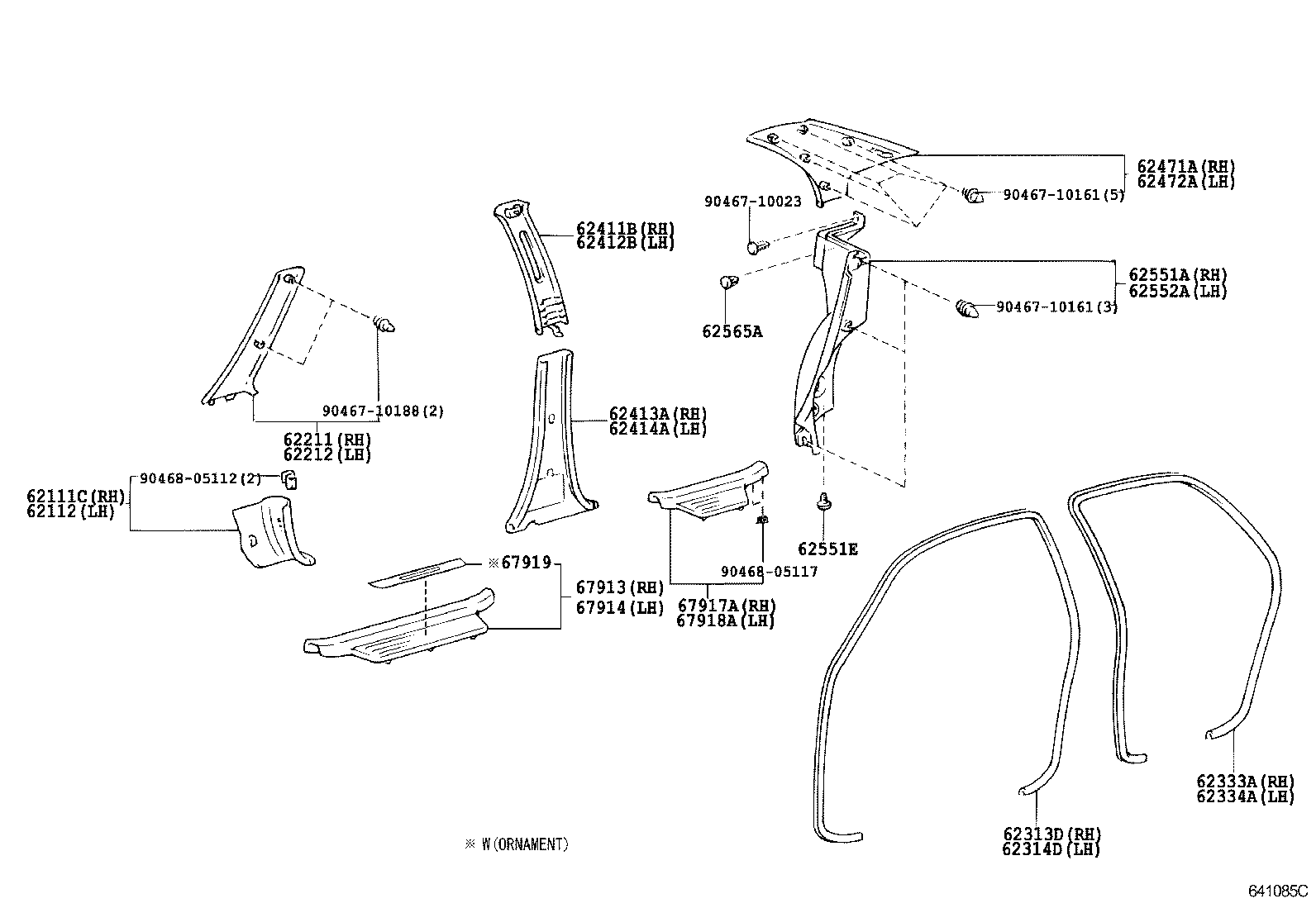

Click highlighted areas on diagram

diagram 62111C 62112 62211 62212 62313D 62314D 62333A 62334A 62411B 62412B 62413A 62414A 62471A 62472A 62551A 62551E 62552A 62565A 67913 67914 67917A 67918A 67919 9046710023 9046710161 9046710161 9046710188 9046805112 9046805117
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-0D020E0

AXP4#

DK.BROWN,TRIM0#

 1
62111-0D020B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
62111-0D020E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-0D020E0

AXP4#

DK.BROWN,TRIM0#

 1
62112-0D020E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
62112-0D020B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-0D020A0

AXP4#

IVORY,TRIM0#

 1
62211-0D020A0

AXP4#..15GLI,GL,GLXI

IVORY,TRIM0#

 1
62211-0D020B0

AXP42..15GLI,GLS

LT.GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-0D020A0

AXP4#

IVORY,TRIM0#

 1
62212-0D020A0

AXP4#..15GLI,GL,GLXI

IVORY,TRIM0#

 1
62212-0D020B0

AXP42..15GLI,GLS

LT.GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62311-0D050E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
62311-0D050E0

AXP4#..GL,GLI,GLXI

DK.BROWN,TRIM0#

 1
62311-0D050B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62312-0D050B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
62312-0D050E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
62312-0D050E0

AXP4#..GL,GLI,GLXI

DK.BROWN,TRIM0#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-0D020E0

AXP4#

DK.BROWN,TRIM0#

 1
62333-0D020E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
62333-0D020B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62334-0D020E0

AXP4#

DK.BROWN,TRIM0#

 1
62334-0D020B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
62334-0D020E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-0D020B0

AXP42..15GLI,GLS

LT.GRAY,TRIM1#

 1
62411-0D020A0

AXP4#

IVORY,TRIM0#

 1
62411-0D020A0

AXP4#..15GLI,GL,GLXI

IVORY,TRIM0#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-0D020A0

AXP4#

IVORY,TRIM0#

 1
62412-0D020B0

AXP42..15GLI,GLS

LT.GRAY,TRIM1#

 1
62412-0D020A0

AXP4#..15GLI,GL,GLXI

IVORY,TRIM0#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62030-0D020E0

AXP4#

DK.BROWN,TRIM0#

 1
62030-0D020B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
62030-0D020E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62040-0D020E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
62040-0D020E0

AXP4#

DK.BROWN,TRIM0#

 1
62040-0D020B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-0D040B0

AXP42..15GLI,GLS

LT.GRAY,TRIM1#

 1
62471-0D040A0

AXP4#..15GLI,GL,GLXI

IVORY,TRIM0#

 1
62471-0D040A0

AXP4#

IVORY,TRIM0#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-0D040A0

AXP4#

IVORY,TRIM0#

 1
62472-0D040B0

AXP42..15GLI,GLS

LT.GRAY,TRIM1#

 1
62472-0D040A0

AXP4#..15GLI,GL,GLXI

IVORY,TRIM0#

 1
62551A - COVER, REAR SEAT SIDE, RH
62551-0D020E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
62551-0D020E0

AXP4#

DK.BROWN,TRIM0#

 1
62551-0D020B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
62551E - CLIP(FOR REAR SEAT SIDE GARNISH)
90467-07115E0

AXP4#

DK.BROWN,TRIM0#

 2
90467-07115E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 2
90467-07115B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 2
62552A - COVER, REAR SEAT SIDE, LH
62552-0D010E0

AXP4#

DK.BROWN,TRIM0#

 1
62552-0D010B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
62552-0D010E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
62565A - CLIP (FOR REAR SEAT SIDE GARNISH)
90467-12129B1

AXP4#

LT. BLUISH GRAY,TRIM0#

 2
90467-12129B1

AXP4#

LT. BLUISH GRAY

 2
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-0D030B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
67913-0D030E0

AXP4#

DK.BROWN,TRIM0#

 1
67913-0D030E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-0D030E0

AXP4#

DK.BROWN,TRIM0#

 1
67914-0D030E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
67914-0D030B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-0D020E0

AXP4#

DK.BROWN,TRIM0#

 1
67917-0D020B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
67917-0D020E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-0D020E0

AXP4#

DK.BROWN,TRIM0#

 1
67918-0D020E0

AXP4#..15GLI,GL,GLXI

DK.BROWN,TRIM0#

 1
67918-0D020B0

AXP42..15GLI,GLS

DK.GRAY,TRIM1#

 1
Common parts
90467-10023
90467-10161
90467-10188
90468-05112
90468-05117
