AXP42L-EEPHKC (2005)
Toyota Vios/Soluna Vios

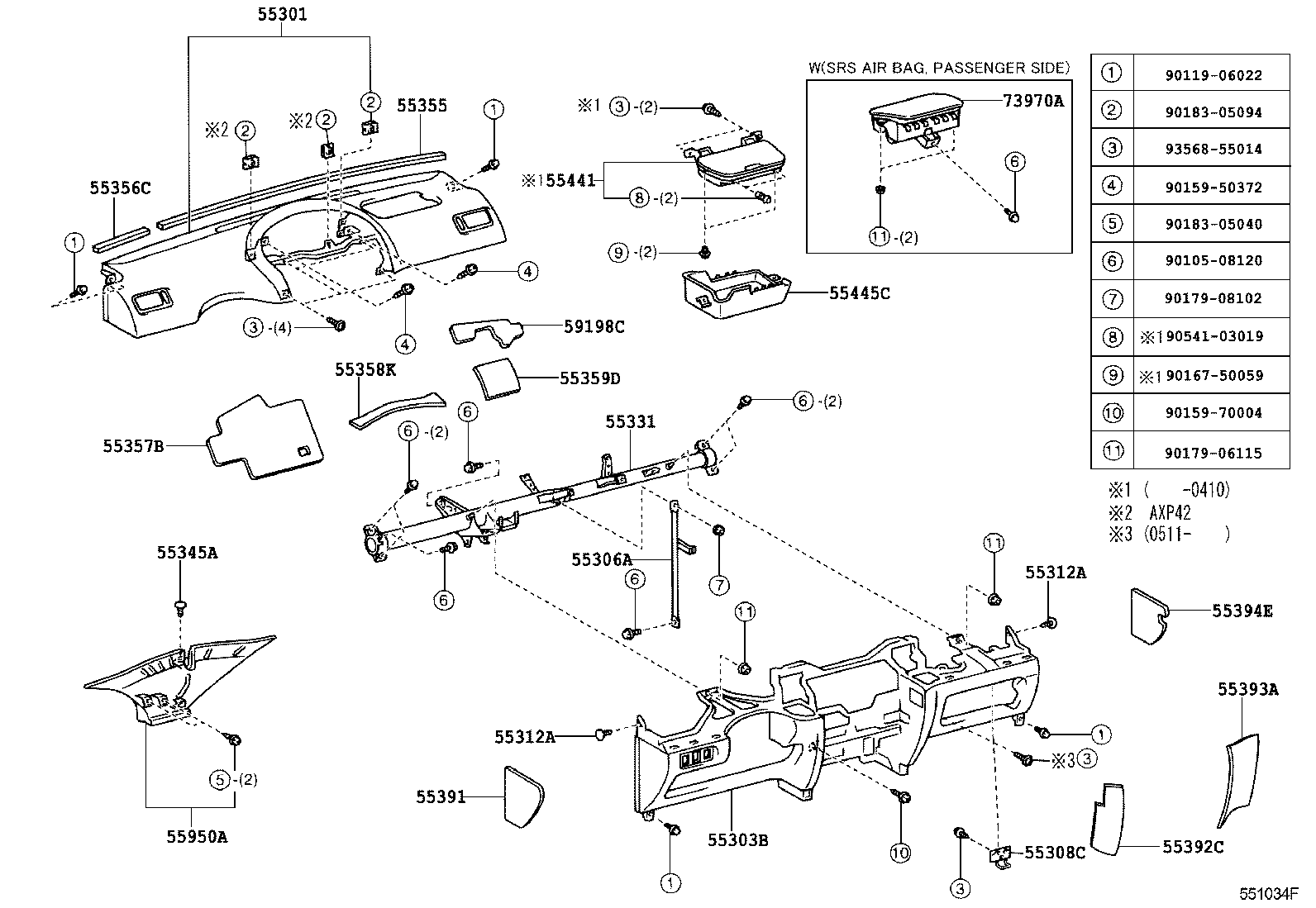

ILLUST NO. 1 OF 2(0210-0608)AXP4# ; (0608- )SCP4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-0D030B0 |
AXP42..15GLI,GLS DK.GRAY,TRIM1# |
1 | ||
| 55301-0D030E0 |
AXP4# DK.BROWN,TRIM0# |
1 | ||
| 55301-0D030E0 |
AXP4#..15GLI,GL,GLXI DK.BROWN,TRIM0# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0D040A0 |
AXP4# IVORY,TRIM0# |
1 | ||
| 55303-0D040B0 |
AXP42..15GLI,GLS STONE,TRIM1# |
1 | ||
| 55303-0D040A0 |
AXP4#..15GLI,GL,GLXI IVORY,TRIM0# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D030 |
AXP4# |
1 | ||
| 55306-0D030 |
AXP4# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12280 |
AXP4# |
1 | ||
| 55308-12280 |
AXP4# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05020A4 |
AXP4# IVORY,TRIM0# |
2 | ||
| 90467-05020A4 |
AXP4# IVORY,TRIM0# |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05020A4 |
AXP4# IVORY,TRIM0# |
2 | ||
| 90467-05020A4 |
AXP4# IVORY,TRIM0# |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D080 |
AXP4#..ATM W(SRS AIR BAG,PASSENGER SIDE) |
1 | ||
| 55330-0D070 |
AXP4#..ATM |
1 | ||
| 55330-0D080 |
AXP4#..ATM |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-05020A4 |
AXP4# IVORY,TRIM0# |
1 | ||
| 90467-05020E7 |
AXP4# DK.BROWN |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55349-52030 |
AXP4# |
1 | ||
| 55355-52020 |
AXP4#..DLX,DLXI,GL,GLI,GLXI |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55349-52050 |
AXP4# |
1 | ||
| 55356-52080 |
AXP4#..DLX,DLXI,GL,GLI,GLXI |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-0D050 |
AXP4# |
1 | ||
| 55357-0D050 |
AXP4# |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-0D040 |
AXP4# |
1 | ||
| 55358-0D040 |
AXP4# |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-0D010 |
AXP4# |
1 | ||
| 55359-0D010 |
AXP4# |
1 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-0D030 |
AXP4# |
1 | ||
| 55391-0D030 |
AXP4# |
1 | ||
| 55392C - CUSHION, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55392-0D030 |
AXP4# |
1 | ||
| 55392-0D030 |
AXP4# |
1 | ||
| 55393A - CUSHION, INSTRUMENT PANEL, LOWER NO.3 | ||||
| 55393-0D030 |
AXP4# |
1 | ||
| 55393-0D030 |
AXP4# |
1 | ||
| 55394E - CUSHION, INSTRUMENT PANEL, LOWER NO.4 | ||||
| 55394-0D020 |
AXP4# |
1 | ||
| 55394-0D020 |
AXP4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-0D030E0 |
AXP4#..DLX,DLXI,GL,GLI,GLXI DK.BROWN,TRIM0# |
1 | ||
| 55445C - PLATE, INSTRUMENT PANEL BOX | ||||
| 55445-0D030 |
AXP4#..DLX,DLXI,GL,GLI,GLXI |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0D030 |
AXP4# |
1 | ||
| 55950-0D030 |
AXP4# |
1 | ||
| 59198C - SEAL, NOISE SHUTTER | ||||
| 59198-0D040 |
AXP4# |
1 | ||
| 59198-0D040 |
AXP4# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-0D030E0 |
AXP4#..GL,GLI,GLXI DK.BROWN,TRIM0# |
1 | ||
| 73970-0D030E0 |
AXP4#..15GLI,GL,GLXI DK.BROWN,TRIM0# |
1 | ||
| 73970-0D030B0 |
AXP42..15GLI,GLS DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06022 | ||||
| 90159-50372 | ||||
| 90159-70004 | ||||
| 90167-50059 | ||||
| 90179-06115 | ||||
| 90179-08102 | ||||
| 90183-05040 | ||||
| 90183-05094 | ||||
| 90541-03019 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(0210-0608)AXP4# ; (0608- )SCP4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 55346-52010B0 |
AXP4# DK.GRAY |
1 | ||
| 90467-06046C0 |
AXP4# BLACK,TRIM0# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D070 |
AXP42..GLI,GLXI WOOD GRAIN |
1 | ||
| 55405-0D060 |
AXP4#..GL,GLI |
1 | ||
| 55405-0D290 |
AXP42..15GLI,GLS |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-0D040 |
AXP4#..DLX,DLXI,GL,GLI |
1 | ||
| 55406-0D210 |
AXP42..15GLI,GLS |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0D030C0 |
AXP4# BLACK,TRIM0# |
1 | ||
| 55411-0D030C0 |
AXP4#..GL,GLXI BLACK,TRIM0# |
1 | ||
| 55411-0D030C0 |
AXP42..15GLI BLACK,TRIM0#,1# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55413-0D040 |
AXP4#..DLX,DLXI,GL,GLI |
1 | ||
| 55413-0D050 |
AXP42..GLI,GLXI WOOD GRAIN |
1 | ||
| 55413-0D150 |
AXP42..15GLI,GLS |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-03015 |
AXP4# |
1 | ||
| 90541-03015 |
AXP4# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D030A0 |
AXP4# IVORY,TRIM0# |
1 | ||
| 55550-0D030A0 |
AXP4#..15GLI,GL,GLXI IVORY,TRIM0# |
1 | ||
| 55550-0D030B0 |
AXP42..15GLI,GLS STONE,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05020 |
AXP4# |
2 | ||
| 90541-05020 |
AXP4# |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-0D020 |
AXP4#..DLX,DLXI,GLI,GLXI |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010A0 |
AXP4#..DLX,DLXI,GL,GLI IVORY,TRIM0# |
2 | ||
| 55539-32010A0 |
AXP42..15GLI,GLXI IVORY,TRIM0# |
1 | ||
| 55539-32010P1 |
AXP42..15GLI,GLS STONE,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010A0 |
AXP4#..DLX,DLXI,GL,GLI IVORY,TRIM0# |
2 | ||
| 55539-32010A0 |
AXP42..15GLI,GLXI IVORY,TRIM0# |
1 | ||
| 55539-32010P1 |
AXP42..15GLI,GLS STONE,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-0D020B2 |
AXP42..15GLI,GLS STONE,TRIM1# |
1 | ||
| 55545-0D020A0 |
AXP4#..15GLI,GL,GLXI IVORY,TRIM0# |
1 | ||
| 55545-0D020A0 |
AXP4# IVORY,TRIM0# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28010A0 |
AXP4#..DLX,DLXI,GLI IVORY,TRIM0# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12120A0 |
AXP4# IVORY,TRIM0# |
1 | ||
| 55560-12120B0 |
AXP42..15GLI,GLS STONE,TRIM1# |
1 | ||
| 55560-12120A0 |
AXP4#..15GLI,GL,GLXI IVORY,TRIM0# |
1 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-0D030A0 |
AXP4# IVORY,TRIM0# |
1 | ||
| 55611-0D030A0 |
AXP4#..15GLI,GL,GLXI IVORY,TRIM0# |
1 | ||
| 55611-0D030B0 |
AXP42..15GLI,GLS STONE,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D020B0 |
AXP42..15GLI,GLS DK.GRAY,TRIM1# |
1 | ||
| 55650-0D020E1 |
AXP4#..15GLI,GL,GLXI ORCHID BROWN,TRIM0# |
1 | ||
| 55650-0D020E0 |
AXP4# ORCHID BROWN,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0D010E0 |
AXP4# ORCHID BROWN,TRIM0# |
1 | ||
| 55660-0D010B0 |
AXP42..15GLI,GLS DK.GRAY,TRIM1# |
1 | ||
| 55660-0D010E1 |
AXP4#..15GLI,GL,GLXI ORCHID BROWN,TRIM0# |
1 | ||
| 74155A - RAIL, FRONT ASH RECEPTACLE GUIDE, NO.1 | ||||
| 74155-0D020 |
AXP4# |
1 | ||
| 74155-0D020 |
AXP4# |
1 | ||
| 74156A - RAIL, FRONT ASH RECEPTACLE GUIDE, NO.2 | ||||
| 74156-0D020 |
AXP4# |
1 | ||
| 74156-0D020 |
AXP4# |
1 | ||
| 89279J - COVER | ||||
| 89279-0D030 |
AXP4# |
1 | ||
| 89279-0D030 |
AXP4# |
1 | ||
| Common parts | ||||
| 90161-40026 | ||||
| 90161-T0001 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
