AXP42L-EEPHKC (2005)

Toyota Vios/Soluna Vios

Production Nov 2005 - Aug 2006
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0210-0608)15GLI,DLXI,GL,GLI,GLS,GLXI

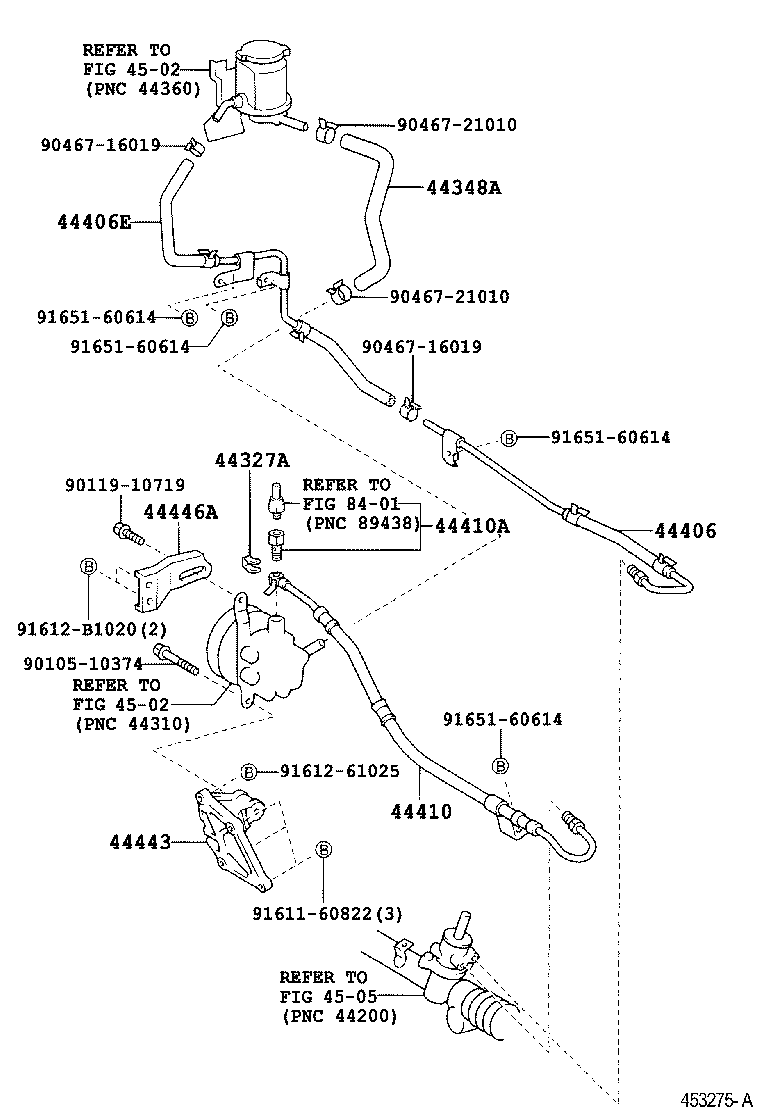

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44406E 44410 44410A 44443 44446A 4502 4502 4505 8401 9010510374 9011910719 9046716019 9046716019 9046721010 9046721010 9161160822 9161261025 91612B1020 9165160614 9165160614 9165160614 9165160614
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AXP4#..DLXI,GL,GLI,GLXI

 1
44327-12010

AXP4#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-52010

AXP4#..DLXI,GL,GLI,GLXI

 1
44348-52010

AXP4#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-52020

AXP4#..DLXI,GL,GLI,GLXI

 1
44406-52020

AXP4#

 1
44406E - TUBE SUB-ASSY, RETURN, NO.2
44406-52030

AXP4#

 1
44406-52030

AXP4#..DLXI,GL,GLI,GLXI

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-52140

AXP4#

 1
44410-52140

AXP4#..DLXI,GL,GLI,GLXI

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
44338-33090

AXP4#

 1
44338-33090

AXP4#..DLXI,GL,GLI,GLXI

 1
44443 - BRACKET, PUMP
44443-12100

AXP4#

 1
44443-12100

AXP4#..DLXI,GL,GLI,GLXI

 1
44446A - STRUT, ADJUSTING NO.1
44446-52020

AXP4#

 1
44446-52020

AXP4#..DLXI,GL,GLI,GLXI

 1
Common parts
90105-10374
90119-10719
90467-16019
90467-21010
91611-60822
91612-61025
91612-B1020
91651-60614
Linked diagrams
4502
4505
8401
