AXP42L-EEPHKC (2005)

Toyota Vios/Soluna Vios

Production Nov 2005 - Aug 2006
Engine 5AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0210-0608)5AFE,8AFE..ATM

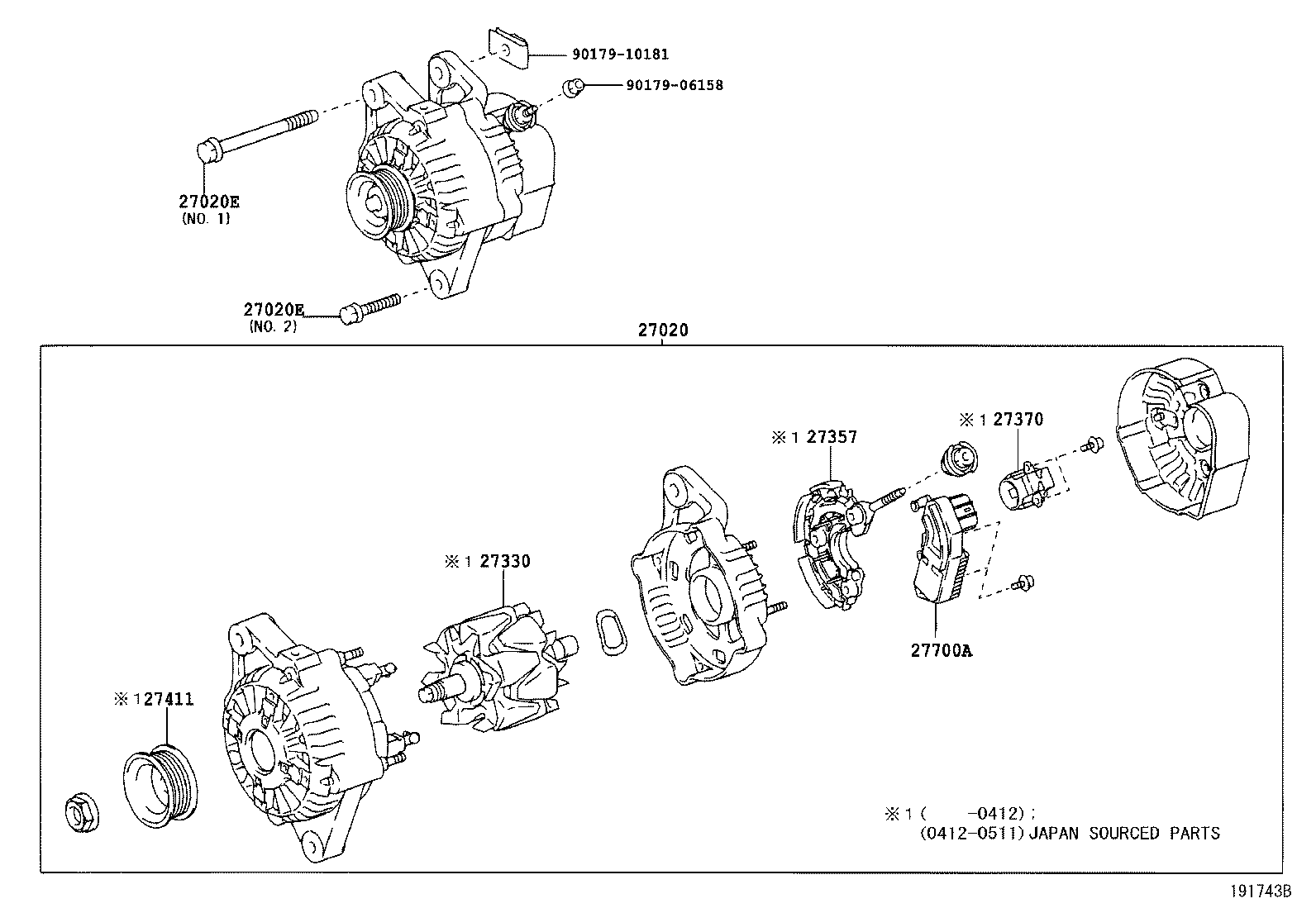

Click highlighted areas on diagram

12V 70A

diagram 27020 27020E 27020E 27330 27357 27370 27411 27700A 9017906158 9017910181
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-14020

5AFE,8AFE..AXP4#..ATM

12V 70A

 1
27060-02150

5AFE,8AFE..AXP4#..ATM

12V 70A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10336

5AFE,8AFE..AXP4#

NO.1

 1
90119-08875

5AFE,8AFE..AXP4#

NO.2

 1
90119-08875

5AFE,8AFE..AXP4#

NO.2

 1
90105-10336

5AFE,8AFE..AXP4#

NO.1

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10336

5AFE,8AFE..AXP4#

NO.1

 1
90119-08875

5AFE,8AFE..AXP4#

NO.2

 1
90119-08875

5AFE,8AFE..AXP4#

NO.2

 1
90105-10336

5AFE,8AFE..AXP4#

NO.1

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-67100

5AFE,8AFE..AXP4#..ATM

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-21060

5AFE,8AFE..AXP4#..ATM

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

5AFE,8AFE..AXP4#

 1
27411 - PULLEY, ALTERNATOR
27411-16150

5AFE,8AFE..AXP4#..ATM

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74040

5AFE,8AFE..AXP4#..ATM

 1
27700-74040

5AFE,8AFE..AXP4#..ATM

 1
Common parts
90179-06158
90179-10181
