AXP42L-EEMRKC (2002)

Toyota Vios/Soluna Vios

Production Oct 2002 - Nov 2005
Engine 5AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0210- )5AFE,8AFE

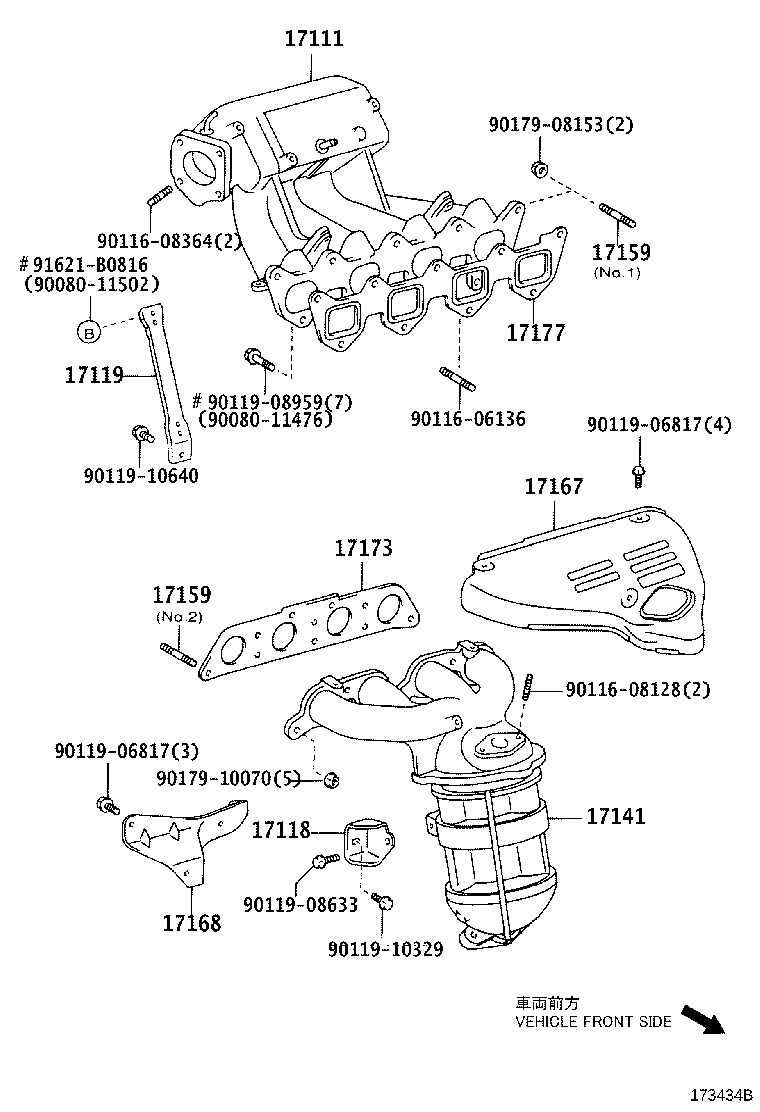

Click highlighted areas on diagram

diagram 17111 17118 17119 17141 17159 17159 17167 17168 17173 17177 9008011476 9008011502 9011606136 9011608128 9011608364 9011906817 9011906817 9011908633 9011908959 9011910329 9011910640 9017908153 9017910070 91621B0816
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-14020

5AFE,8AFE..AXP4#

 1
17118 - STAY, MANIFOLD
17118-16110

5AFE,8AFE..AXP4#

(J)

 1
17118-02090

5AFE,8AFE..AXP4#

(L)

 1
17119 - STAY, MANIFOLD, NO.2
17139-02090

5AFE,8AFE..AXP4#

(L)

 1
17139-15050

5AFE,8AFE..AXP4#

(J)

 1
17141 - MANIFOLD, EXHAUST
17140-14010

5AFE,8AFE..AXP4#

(J)

 1
17140-14010

5AFE,8AFE..AXP4#

 1
17140-02010

5AFE,8AFE..AXP4#

(L)

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028

5AFE,8AFE..AXP4#

NO.2

 5
92112-60825

5AFE,8AFE..AXP4#

NO.1

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028

5AFE,8AFE..AXP4#

NO.2

 5
92112-60825

5AFE,8AFE..AXP4#

NO.1

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-02080

5AFE,8AFE..AXP4#

(L)

 1
17167-16141

5AFE,8AFE..AXP4#

(J)

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-16110

5AFE,8AFE..AXP4#

(J)

 1
17168-02040

5AFE,8AFE..AXP4#

(L)

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-02060

5AFE,8AFE..AXP4#

(L)

 1
17173-15040

5AFE,8AFE..AXP4#

(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15030

5AFE,8AFE..AXP4#

(J)

 1
17171-02050

5AFE,8AFE..AXP4#

(L)

 1
Common parts
90080-11476
90080-11502
90116-06136
90116-08128
90116-08364
90119-06817
90119-08633
90119-08959
90119-10329
90119-10640
90179-08153
90179-10070
91621-B0816
