AXP42L-EEMGKC (2002)

Toyota Vios/Soluna Vios

Production Oct 2002 - Nov 2005
Engine 5AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0210- )AXP4#,SCP4#

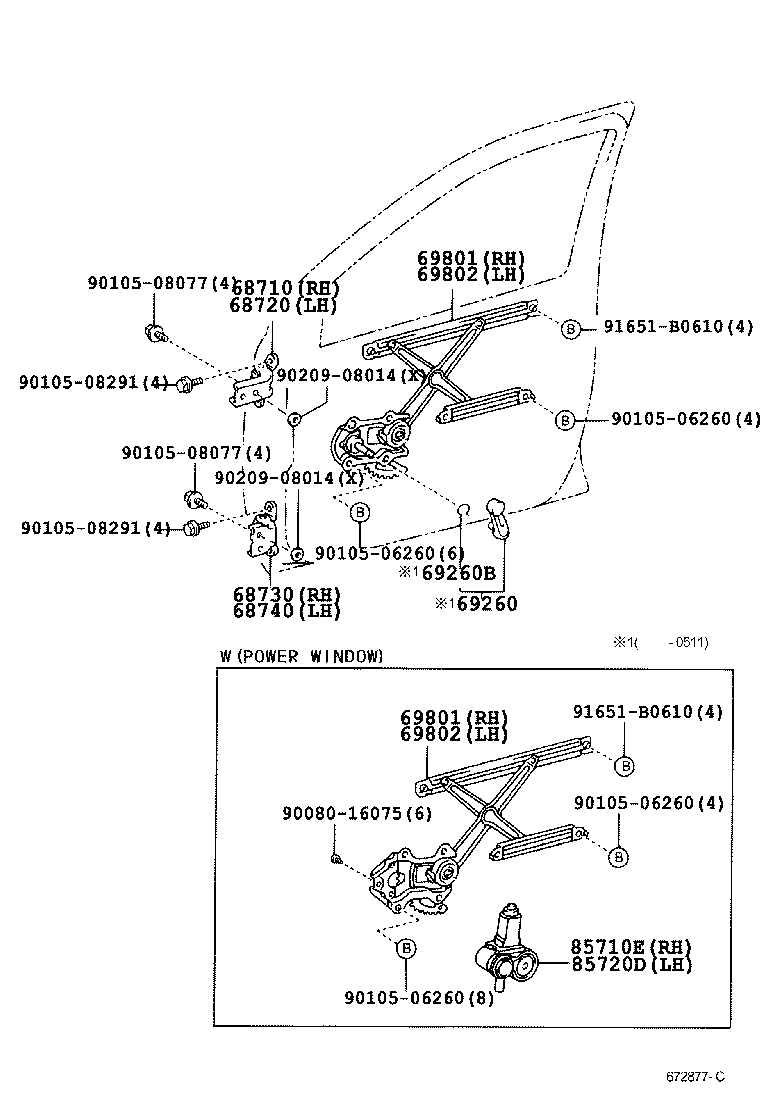

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69801 69801 69802 69802 85710E 85720D 9008016075 9010506260 9010506260 9010506260 9010506260 9010508077 9010508077 9010508291 9010508291 9020908014 9020908014 91651B0610 91651B0610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-0D020

AXP4#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-0D020

AXP4#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-0D020

AXP4#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-0D020

AXP4#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0D030

AXP4#

W(POWER WINDOW)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0D030

AXP4#

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0D030

AXP4#

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0D030

AXP4#

W(POWER WINDOW)

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-0D030

AXP4#

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-0D030

AXP4#

 1
Common parts
90080-16075
90105-06260
90105-08077
90105-08291
90209-08014
91651-B0610
