AXP41L-EEPGKC (2002)
Toyota Vios/Soluna Vios
Production
Oct 2002
-
Aug 2006
Engine
8AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0210- )AXP4#,SCP4#

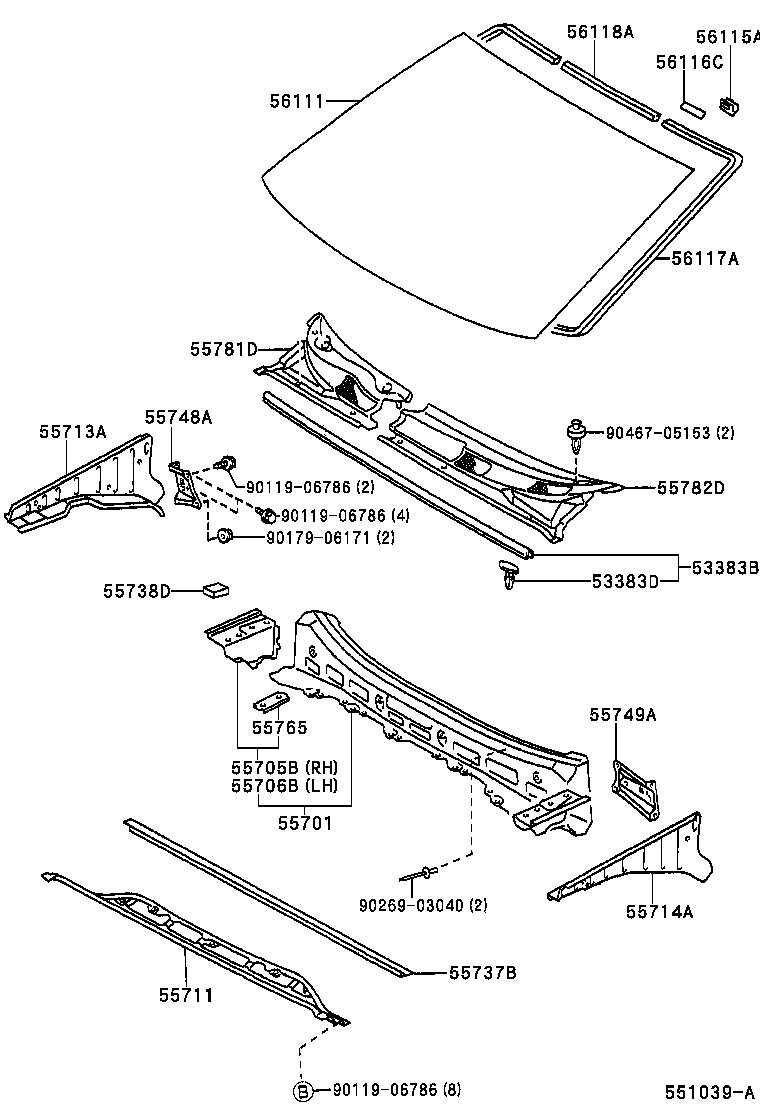

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-0D020 |
AXP4# |
1 | ||
| 53383-0D020 |
AXP4# |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 90080-46318 |
AXP4# |
8 | ||
| 90080-46318 |
AXP4# |
8 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-0D030 |
AXP4# |
1 | ||
| 55700-0D030 |
AXP4# |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-0D020 |
AXP4# |
1 | ||
| 55705-0D020 |
AXP4# |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-0D020 |
AXP4# |
1 | ||
| 55706-0D020 |
AXP4# |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-0D030 |
AXP4# |
1 | ||
| 55701-0D030 |
AXP4# |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-0D010 |
AXP4# |
1 | ||
| 55713-0D010 |
AXP4# |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-0D010 |
AXP4# |
1 | ||
| 55714-0D010 |
AXP4# |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-52010 |
AXP4# (J) |
1 | ||
| 55737-52010 |
AXP4# |
1 | ||
| 55737-52010 |
AXP4# |
1 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55738-0D010 |
AXP4# |
2 | ||
| 55738-0D010 |
AXP4# |
2 | ||
| 55748A - BRACE, COWL TOP INNER TO PILLAR | ||||
| 55748-0D010 |
AXP4# |
1 | ||
| 55748-0D010 |
AXP4# |
1 | ||
| 55749A - BRACE, COWL TOP INNER TO PILLAR, LH | ||||
| 55749-0D010 |
AXP4# |
1 | ||
| 55749-0D010 |
AXP4# |
1 | ||
| 55765 - BRACKET, HOOD DAMPER MOUNTING | ||||
| 55765-44010 |
AXP4# |
2 | ||
| 55765-44010 |
AXP4# |
2 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55781-0D040 |
AXP4# |
1 | ||
| 55781-0D040 |
AXP4# |
1 | ||
| 55781-0D050 |
AXP4# COLD SPEC |
1 | ||
| 55781-0D050 |
AXP4# COLD SPEC |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-0D080 |
AXP4# COLD SPEC |
1 | ||
| 55782-0D080 |
AXP4# COLD SPEC |
1 | ||
| 55782-0D040 |
AXP4# |
1 | ||
| 55782-0D040 |
AXP4# |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-0D031 |
AXP4# *LAM,T=4.76,GREEN |
1 | ||
| 56101-0D030 |
AXP4# *LAM,T=4.76,GREEN |
1 | ||
| 56101-0D031 |
AXP4# *LAM,T=4.76,GREEN |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
AXP4# |
2 | ||
| 56115-30100 |
AXP4# |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
AXP4# |
2 | ||
| 56116-22050 |
AXP4# |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-0D010 |
AXP4# L=3095 |
1 | ||
| 56117-0D010 |
AXP4# |
1 | ||
| 56118A - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 56118-0D010 |
AXP4# |
1 | ||
| 56118-0D010 |
AXP4# L=618 |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| 90179-06171 | ||||
| 90269-03040 | ||||
| 90467-05153 | ||||
