AXP41L-EEPGKC (2002)

Toyota Vios/Soluna Vios

Production Oct 2002 - Aug 2006
Engine 8AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

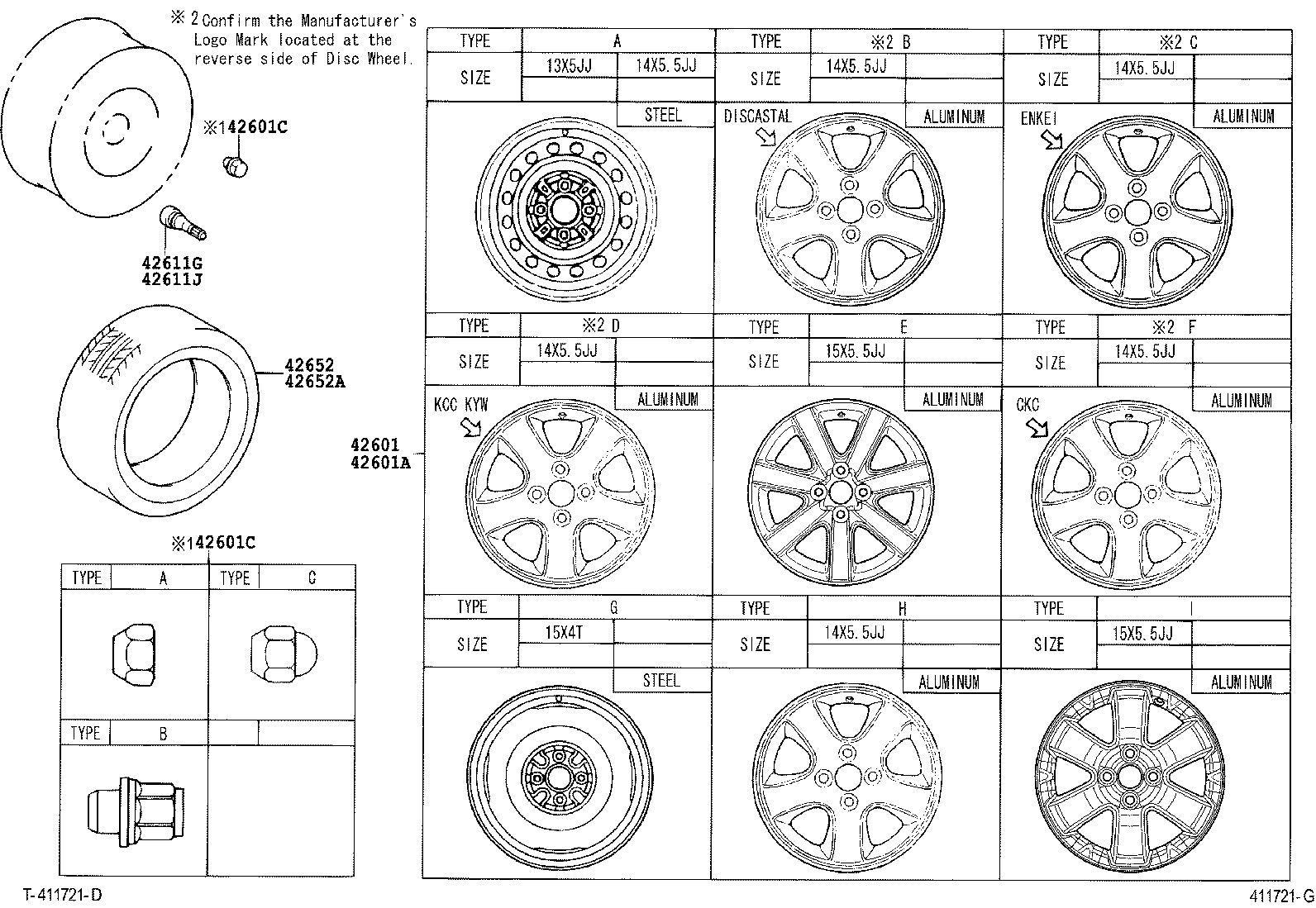

ILLUST NO. 1 OF 6(0210- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42601C 42611G 42611J 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-0D190

AXP4#..DLXI,GL,GLI,GLXI

15X5.5JJ, #,TYPE I:REFER ILLUST.

 4
42611-0D060

AXP4#..DLXI,GL,GLI,GLXI

14X5.5JJ, #,TYPE B:REFER ILLUST.

 4
42611-0D190

AXP4#

15X5.5JJ, #,TYPE I:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-0D190

AXP4#..DLXI,GL,GLI,GLXI

15X5.5JJ, #,TYPE I:REFER ILLUST.

 1
42611-0D190

AXP4#

15X5.5JJ, #,TYPE I:REFER ILLUST.

 1
42611-0D060

AXP4#..DLXI,GL,GLI,GLXI

14X5.5JJ, #,TYPE B:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

AXP4#

TYPE B:REFER ILLUST.

 16
90942-01033

AXP4#..DLXI,GL,GLI,GLXI

TYPE B:REFER ILLUST.

 16
42601C - NUT, HUB (FOR AXLE)
90942-01033

AXP4#

TYPE B:REFER ILLUST.

 16
90942-01033

AXP4#..DLXI,GL,GLI,GLXI

TYPE B:REFER ILLUST.

 16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

AXP4#

 4
90942-05009

AXP4#

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

AXP4#

 1
90942-05009

AXP4#

 1
42652 - TIRE
42652-0D121

AXP4#..DLXI,GL,GLI,GLXI

175/65R14,*B/S

 4
42652-0D350

AXP4#

185/60R15,*B/S

 4
42652A - TIRE (FOR SPARE)
42652-0D350

AXP4#

185/60R15,*B/S

 1
42652-0D121

AXP4#..DLXI,GL,GLI,GLXI

175/65R14,*B/S

 1

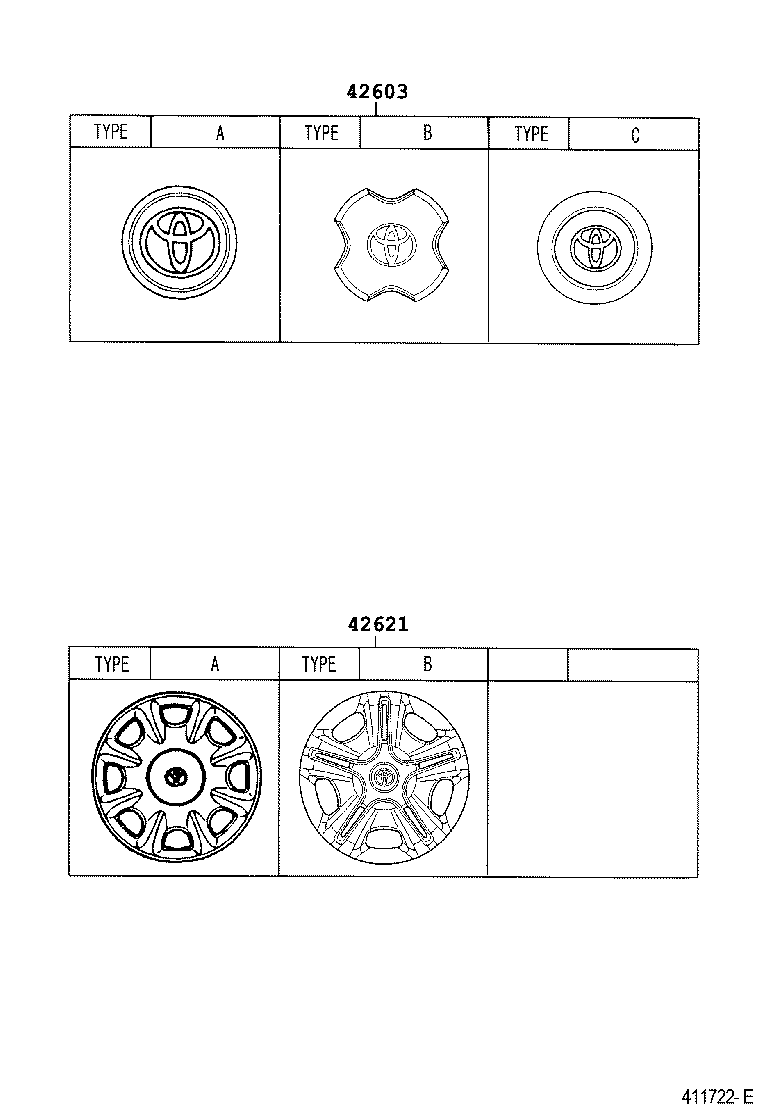

ILLUST NO. 3 OF 6(0210- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-52030

AXP4#..DLXI,GL,GLI,GLXI

*ALU,TYPE C:REFER ILLUST.

 4
42603-12700

AXP4#..DLXI,GL,GLI,GLXI

*ALU, NO PAINT REQ.,TYPE A:REFER ILLUST.

 4
42603-52030

AXP4#

*ALU,TYPE C:REFER ILLUST.

 4

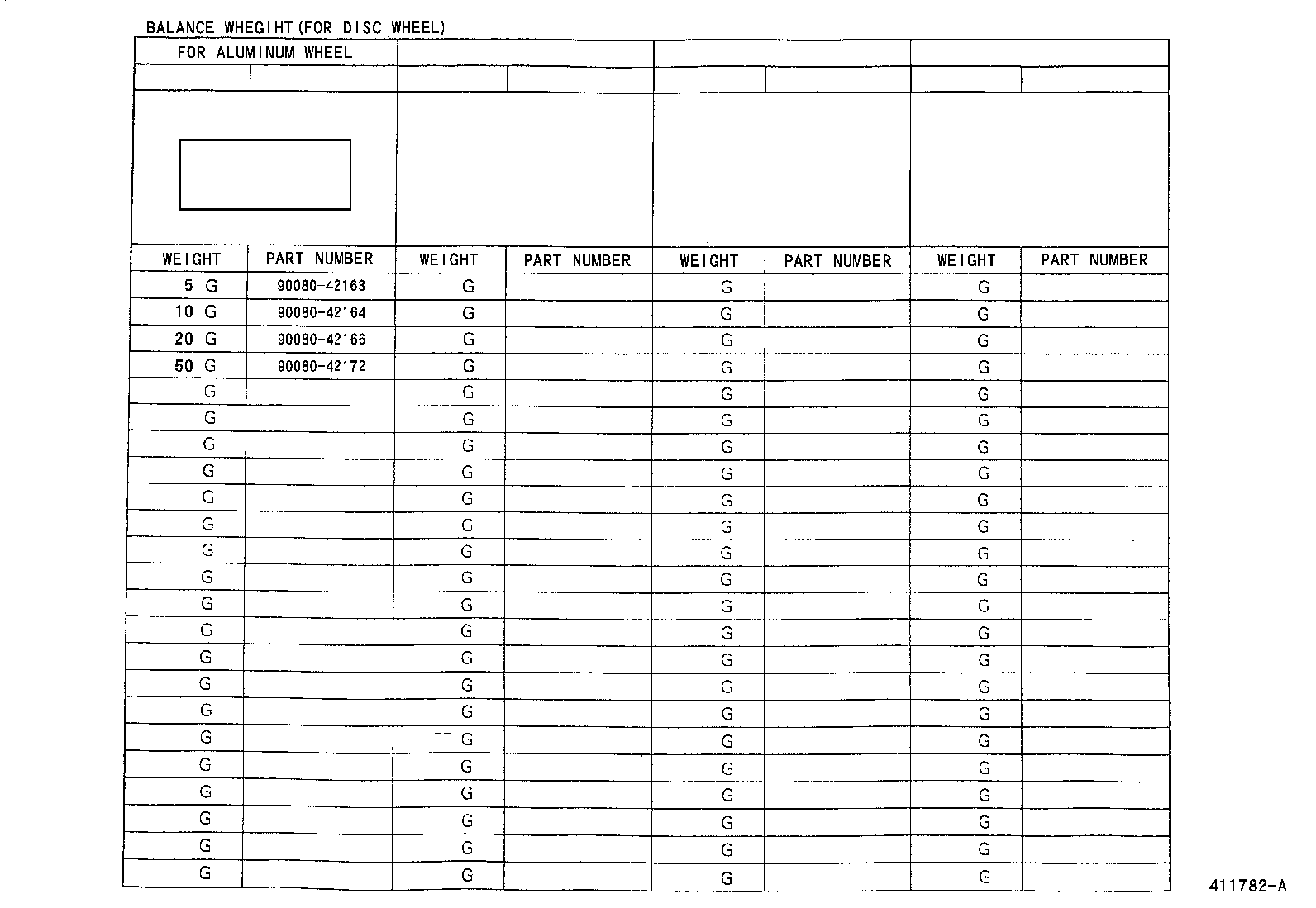

ILLUST NO. 6 OF 6(0210- )AXP4#,NCP4#

Click highlighted areas on diagram

diagram 9008042163 9008042164 9008042166 9008042172
Part # Description Qty Price
Common parts
90080-42163
90080-42164
90080-42166
90080-42172

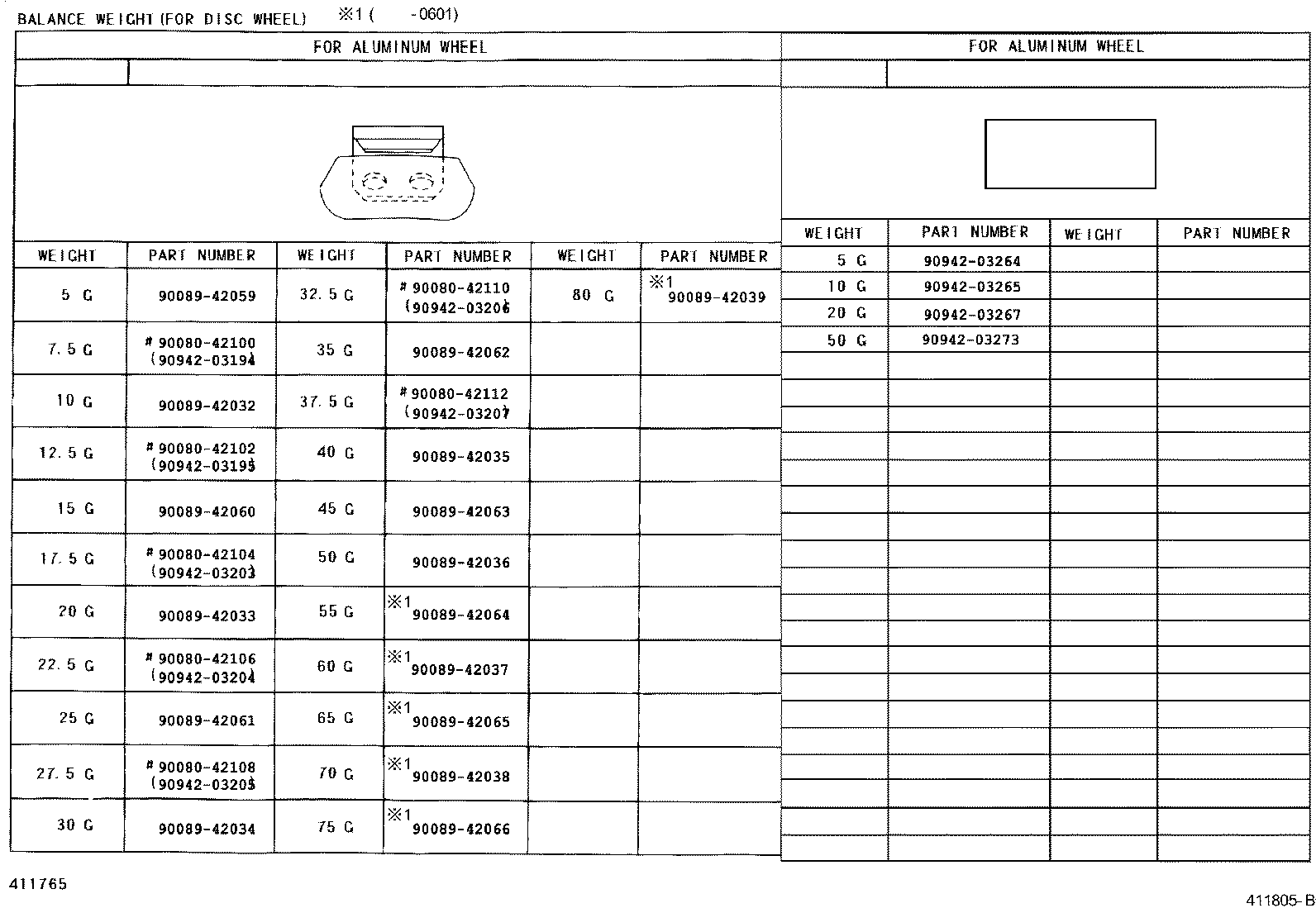

ILLUST NO. 5 OF 6(0210- )

Click highlighted areas on diagram

diagram 9008042100 9008042102 9008042104 9008042106 9008042108 9008042110 9008042112 9008942032 9008942033 9008942034 9008942035 9008942036 9008942037 9008942038 9008942039 9008942059 9008942060 9008942061 9008942062 9008942063 9008942064 9008942065 9008942066 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90080-42100
90080-42102
90080-42104
90080-42106
90080-42108
90080-42110
90080-42112
90089-42032
90089-42033
90089-42034
90089-42035
90089-42036
90089-42037
90089-42038
90089-42039
90089-42059
90089-42060
90089-42061
90089-42062
90089-42063
90089-42064
90089-42065
90089-42066
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03264
90942-03265
90942-03267
90942-03273

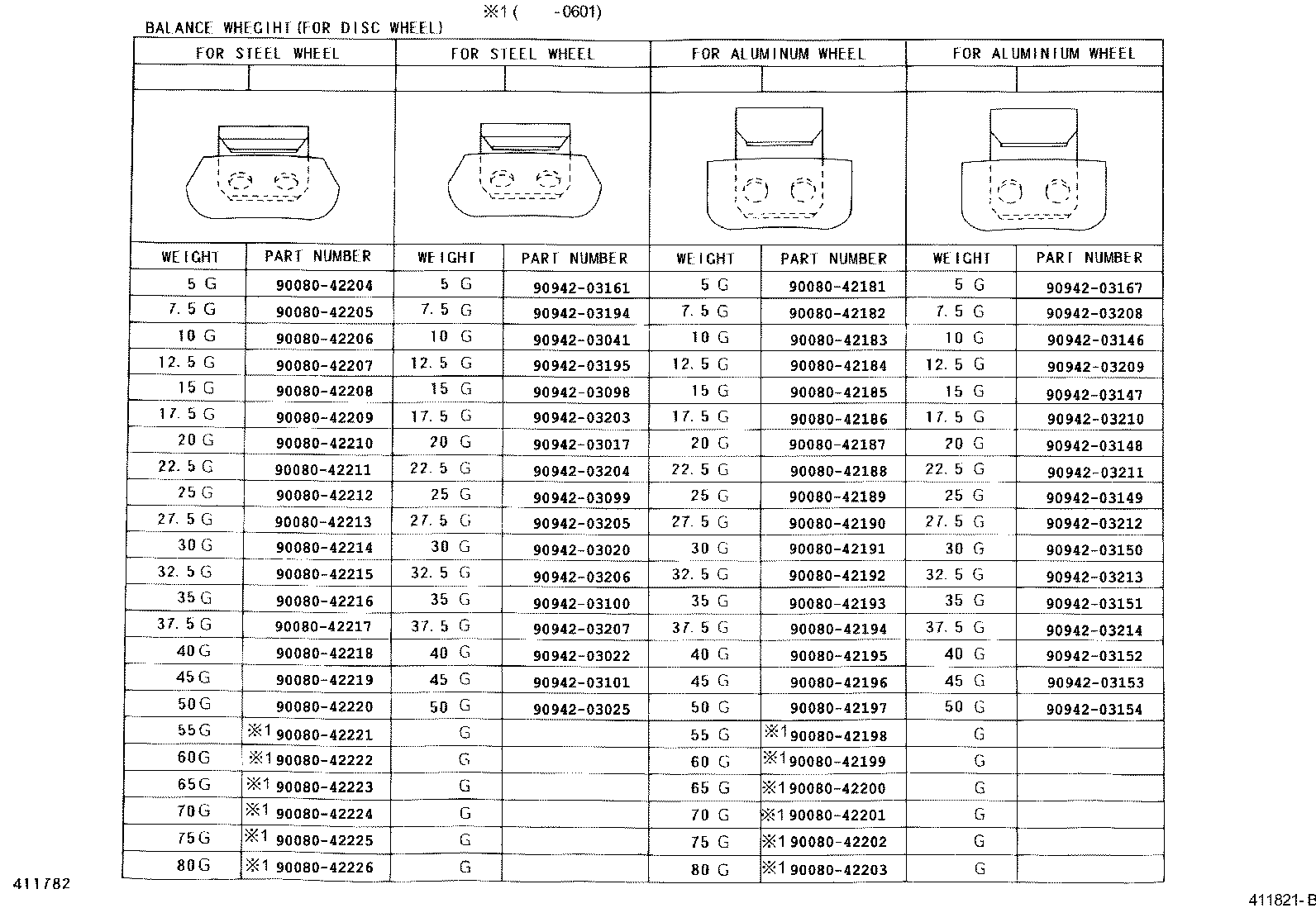

ILLUST NO. 4 OF 6(0210- )

Click highlighted areas on diagram

diagram 9008042181 9008042182 9008042183 9008042184 9008042185 9008042186 9008042187 9008042188 9008042189 9008042190 9008042191 9008042192 9008042193 9008042194 9008042195 9008042196 9008042197 9008042198 9008042199 9008042200 9008042201 9008042202 9008042203 9008042204 9008042205 9008042206 9008042207 9008042208 9008042209 9008042210 9008042211 9008042212 9008042213 9008042214 9008042215 9008042216 9008042217 9008042218 9008042219 9008042220 9008042221 9008042222 9008042223 9008042224 9008042225 9008042226 9094203017 9094203020 9094203022 9094203025 9094203041 9094203098 9094203099 9094203100 9094203101 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203161 9094203167 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214
Part # Description Qty Price
Common parts
90080-42181
90080-42182
90080-42183
90080-42184
90080-42185
90080-42186
90080-42187
90080-42188
90080-42189
90080-42190
90080-42191
90080-42192
90080-42193
90080-42194
90080-42195
90080-42196
90080-42197
90080-42198
90080-42199
90080-42200
90080-42201
90080-42202
90080-42203
90080-42204
90080-42205
90080-42206
90080-42207
90080-42208
90080-42209
90080-42210
90080-42211
90080-42212
90080-42213
90080-42214
90080-42215
90080-42216
90080-42217
90080-42218
90080-42219
90080-42220
90080-42221
90080-42222
90080-42223
90080-42224
90080-42225
90080-42226
90942-03017
90942-03020
90942-03022
90942-03025
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214

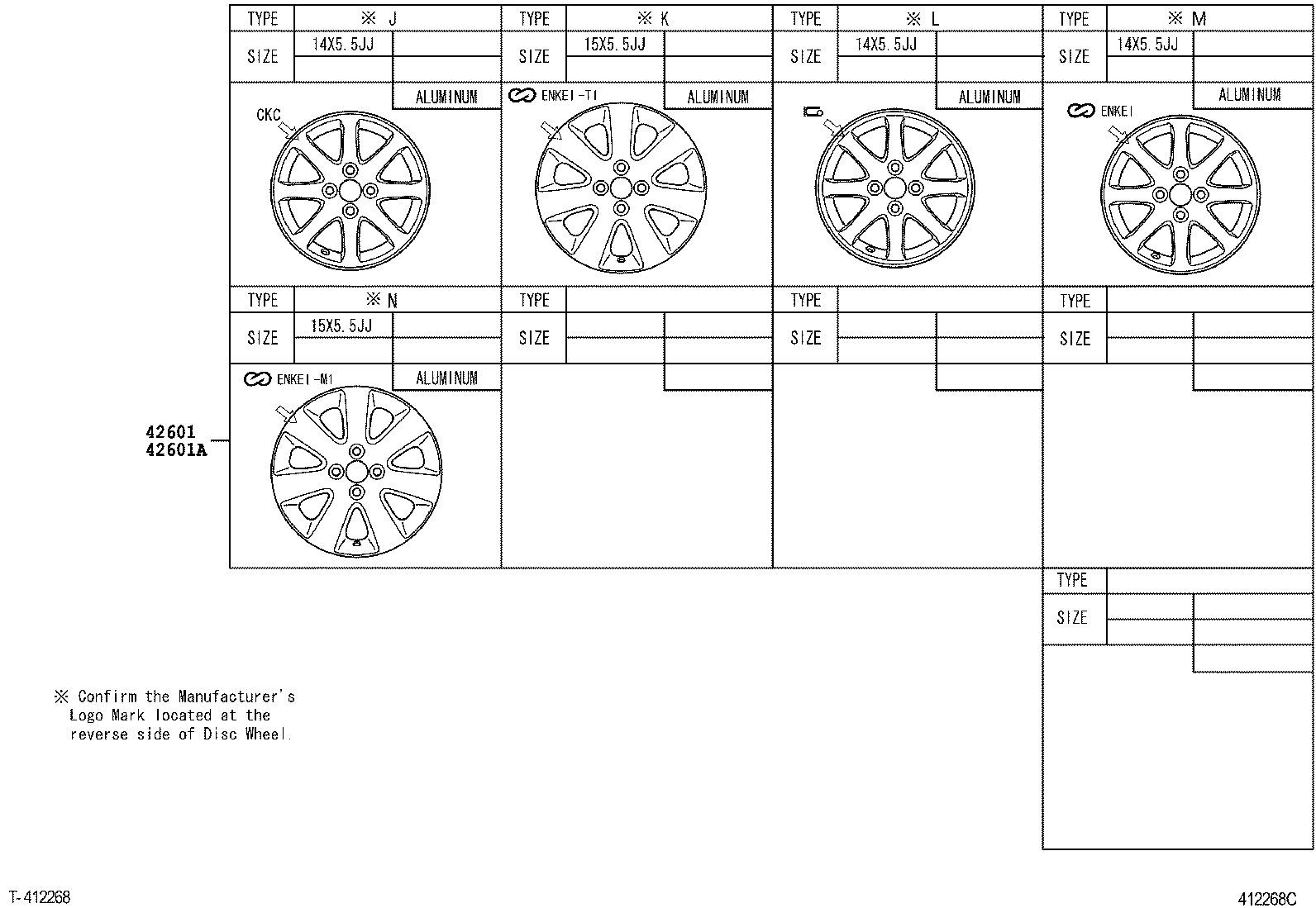

ILLUST NO. 2 OF 6(0210- )

Click highlighted areas on diagram

diagram 42601 42601A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-0D190

AXP4#..DLXI,GL,GLI,GLXI

15X5.5JJ, #,TYPE I:REFER ILLUST.

 4
42611-0D060

AXP4#..DLXI,GL,GLI,GLXI

14X5.5JJ, #,TYPE B:REFER ILLUST.

 4
42611-0D190

AXP4#

15X5.5JJ, #,TYPE I:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-0D190

AXP4#..DLXI,GL,GLI,GLXI

15X5.5JJ, #,TYPE I:REFER ILLUST.

 1
42611-0D190

AXP4#

15X5.5JJ, #,TYPE I:REFER ILLUST.

 1
42611-0D060

AXP4#..DLXI,GL,GLI,GLXI

14X5.5JJ, #,TYPE B:REFER ILLUST.

 1
