AXP41L-EEMRKC (2002)

Toyota Vios/Soluna Vios

Production Oct 2002 - Nov 2005
Engine 8AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0210- )CHI,VN ; (0212-0510)PHL,TAIW,TH ; (0305-0512)MA

Click highlighted areas on diagram

diagram 71811D 71812D 71861 71861B 71862 71862B 72137 72138 72157A 72158 72261 72261A 72525A 72526A 9011910921 9011910921 9011910921 9356014008
Part # Description Qty Price
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0D030A0

AXP4#

IVORY,TRIM0#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0D030A0

AXP4#

IVORY,TRIM0#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0D010A0

AXP4#

IVORY,TRIM0#

 1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-07161A0

AXP4#

IVORY,TRIM0#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0D010A0

AXP4#

IVORY,TRIM0#

 1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
90467-07161A0

AXP4#

IVORY,TRIM0#

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-0D010A0

AXP4#

IVORY,TRIM0#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-0D010A0

AXP4#

IVORY,TRIM0#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-0D010A0

AXP4#

IVORY,TRIM0#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-0D010A0

AXP4#

IVORY,TRIM0#

 1
72261 - REINFORCEMENT, SEAT TRACK, RH
72261-0D010

AXP4#

 1
72261A - REINFORCEMENT, SEAT TRACK, LH
72261-0D010

AXP4#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D030A0

AXP4#

IVORY,TRIM0#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D040A0

AXP4#

IVORY,TRIM0#

 1
Common parts
90119-10921
93560-14008

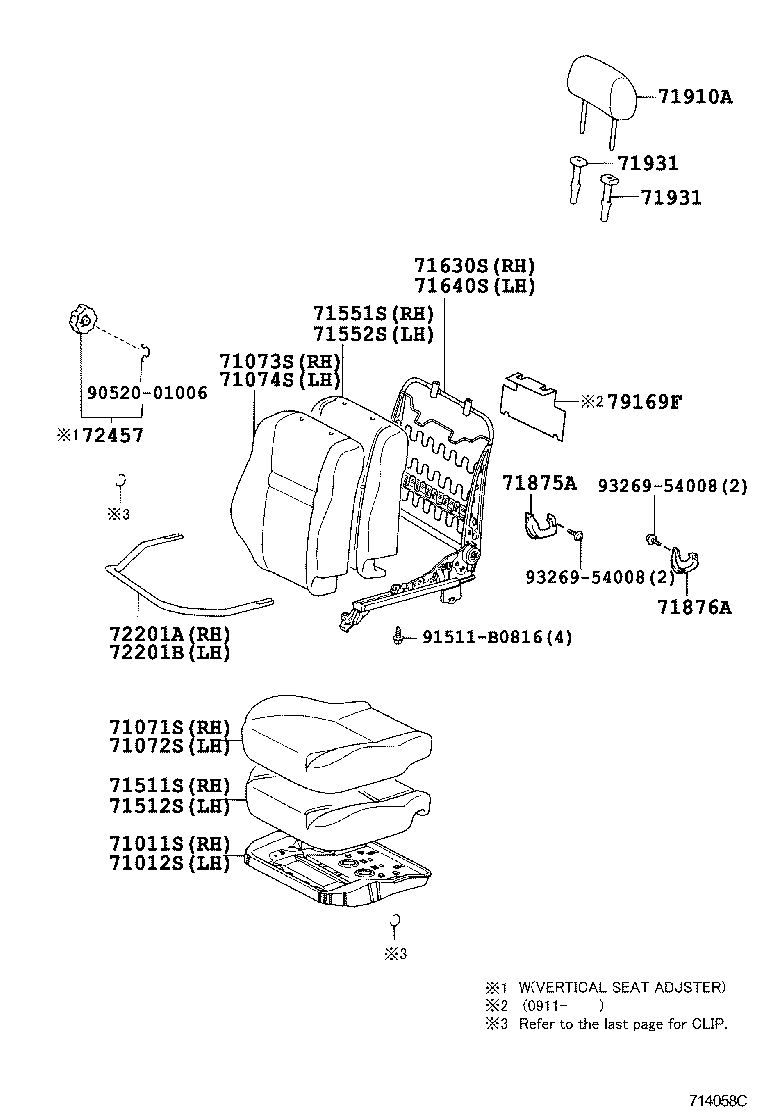

ILLUST NO. 1 OF 2(0210- )AXP4#,SCP4# ; (0510- )PHL,TAIW,TH; (0512- )MA

Click highlighted areas on diagram

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71511S 71512S 71551S 71552S 71630S 71640S 71875A 71876A 71910A 71931 71931 72201A 72201B 72457 79169F 9052001006 91511B0816 9326954008 9326954008
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0D010

AXP4#

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-0D010

AXP4#

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0D010A2

AXP4#..DLX,DLXI

IVORY,TRIM0#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-0D010A2

AXP4#..DLX,DLXI

IVORY,TRIM0#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0D010A2

AXP4#..DLX,DLXI

IVORY,TRIM0#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0D010A2

AXP4#..DLX,DLXI

IVORY,TRIM0#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0D010

AXP4#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-0D010

AXP4#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0D010

AXP4#..DLX,DLXI,GL,GLI

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-0D010

AXP4#..DLX,DLXI,GL,GLI

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0D010

AXP4#

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0D010

AXP4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0D050A1

AXP4#..DLX,DLXI

IVORY,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0D110A0

AXP4#

W/O(LOCK),IVORY,TRIM0#

 2
71930-0D090A0

AXP4#

W(LOCK),IVORY,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0D110A0

AXP4#

W/O(LOCK),IVORY,TRIM0#

 2
71930-0D090A0

AXP4#

W(LOCK),IVORY,TRIM0#

 2
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0D030

AXP4#

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0D030

AXP4#

 1
Common parts
90520-01006
91511-B0816
93269-54008

(0210- )

Click highlighted areas on diagram

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
