AGV15L-AWTGKC (2013)

Toyota Venza

Production Mar 2013 - Jun 2015
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1303- )

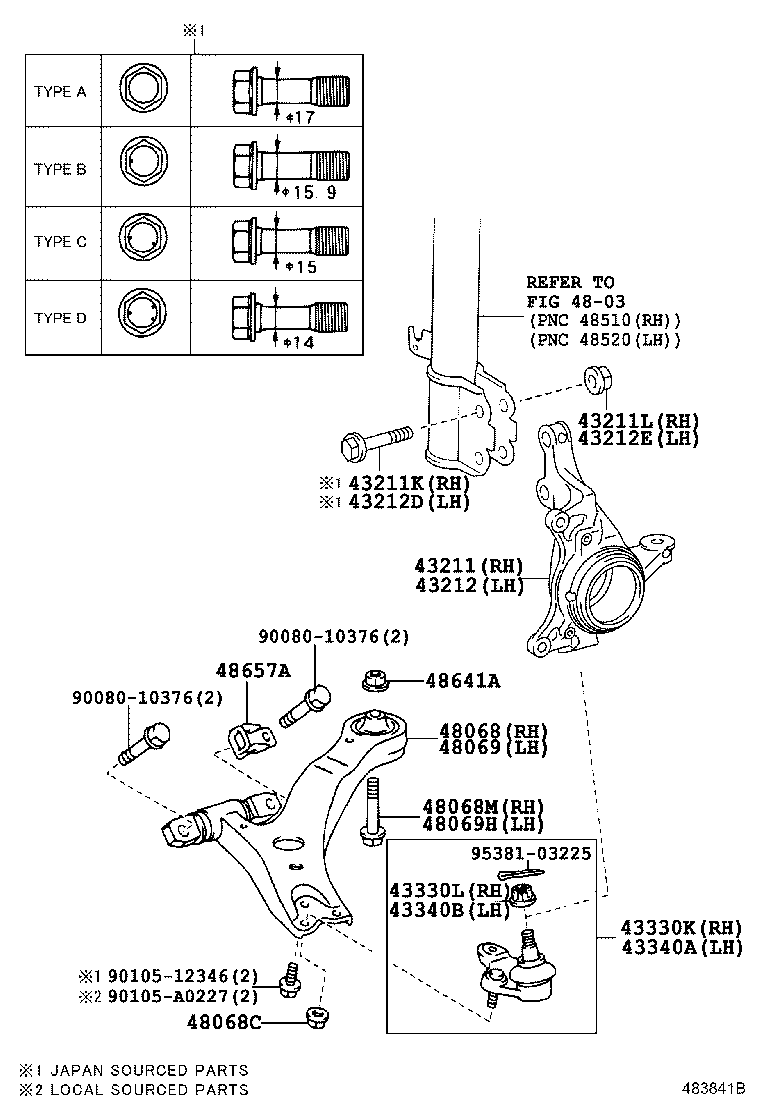

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43340A 43340B 4803 48068 48068C 48068M 48069 48069H 48641A 48657A 9008010376 9008010376 9010512346 90105A0227 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-0T010

AGV1#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17015

AGV1#

OD=14,TYPE D:REFER ILLUST.

 1
90105-17014

AGV1#

OD=15,TYPE C:REFER ILLUST.

 1
90105-17013

AGV1#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-A0052

AGV1#

OD=17,TYPE A:REFER ILLUST.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-A0027

AGV1#

 2
43212 - KNUCKLE, STEERING, LH
43212-0T010

AGV1#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17013

AGV1#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-A0052

AGV1#

OD=17,TYPE A:REFER ILLUST.

 2
90105-17015

AGV1#

OD=14,TYPE D:REFER ILLUST.

 1
90105-17014

AGV1#

OD=15,TYPE C:REFER ILLUST.

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-A0027

AGV1#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09780

AGV1#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90080-17214

AGV1#

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-09140

AGV1#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90080-17214

AGV1#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-0T011

AGV1#

 1
48068C - NUT(FOR FRONT SUSPENSION LOWER ARM)
90178-A0094

AGV1#

 4
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-A0259

AGV1#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-0T011

AGV1#

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-A0259

AGV1#

 1
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90080-17223

AGV1#

 2
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-06010

AGV1#

 2
Common parts
90080-10376
90105-12346
90105-A0227
95381-03225
Linked diagrams
4803
