AGV15L-AWTGKC (2013)

Toyota Venza

Production Mar 2013 - Jun 2015
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

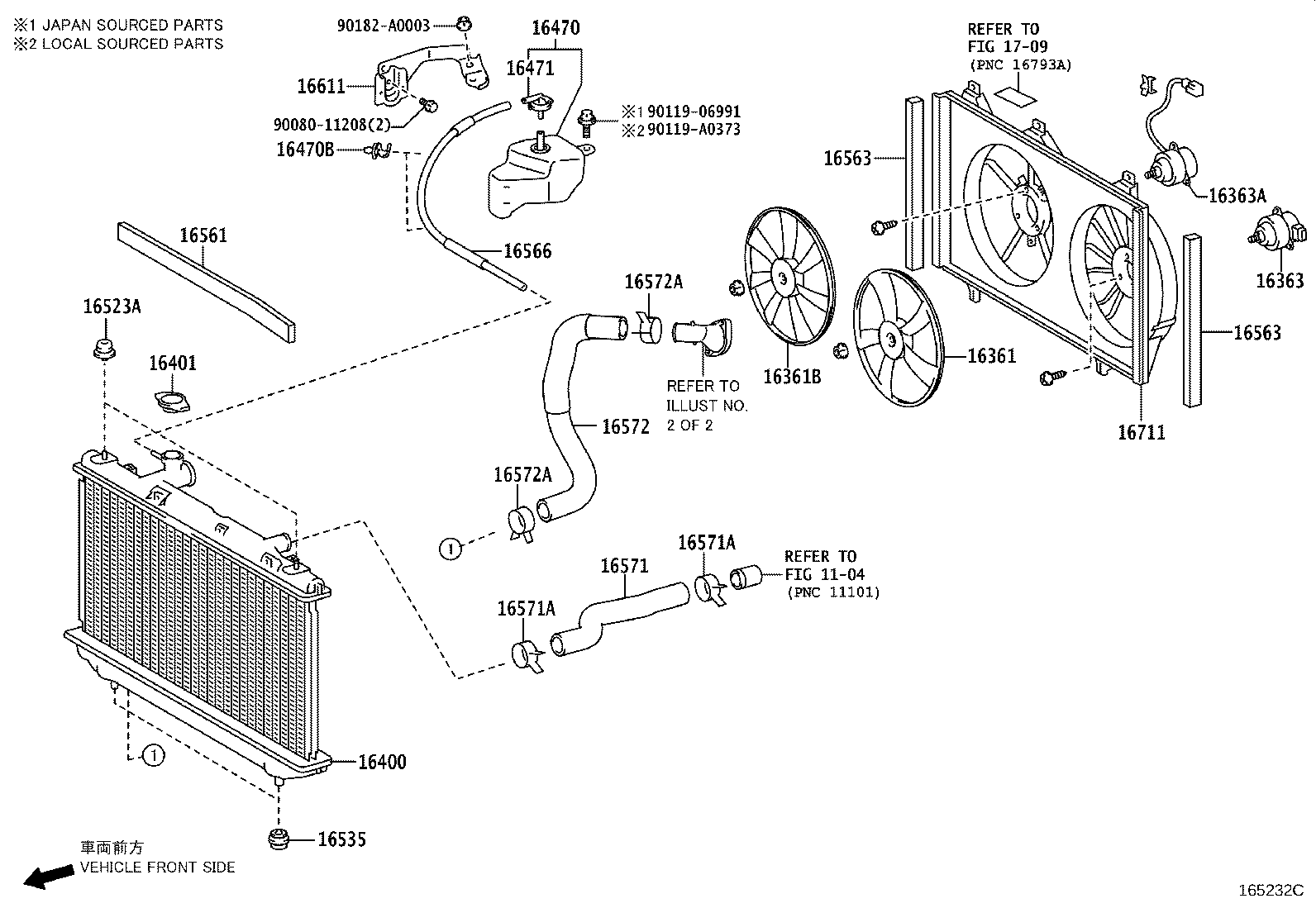

ILLUST NO. 1 OF 2(1303- )

Click highlighted areas on diagram

W/O(ENGINE OIL COOLER)

diagram 1104 16361 16361B 16363 16363A 16400 16400B 16400F 16401 16423 16470 16470B 16471 16495B 16523A 16535 16561 16563 16563 16566 16571 16571A 16571A 16572 16572A 16572A 16611 16711 1709 9008011208 9011906991 90119A0373 90182A0003 90467A0012 90467A0012 9338516012
Part # Description Qty Price
16361 - FAN
16361-0V400

1ARFE..AGV1#

 1
16361B - FAN, NO.2
16361-0V410

1ARFE..AGV1#

 1
16363 - MOTOR, COOLING FAN
16363-0V160

1ARFE..AGV1#

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-0V400

1ARFE..AGV1#

 1
16400 - RADIATOR ASSY
16400-0V010

1ARFE..AGV1#

 1
16400-0V090

1ARFE..AGV1#

RUSSIA SPEC

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0C180

1ARFE..AGV1#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1ARFE..AGV1#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-31520

1ARFE..AGV1#

 1
16423 - HOSE, RADIATOR TANK
16492-AD020

1ARFE..AGV1#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-0V070

1ARFE..AGV1#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90469-12014

1ARFE..AGV1#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16471-AA010

1ARFE..AGV1#

 1
16495B - PIPE (FOR ATM OIL COOLER)
16495-31470

1ARFE..AGV1#

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-AD010

1ARFE..AGV1#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-0H030

1ARFE..AGV1#

 2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-0V010

1ARFE..AGV1#

 1
16563 - SEAL, RADIATOR TO SUPPORT, NO.3
16563-0V010

1ARFE..AGV1#

 2
16563 - SEAL, RADIATOR TO SUPPORT, NO.3
16563-0V010

1ARFE..AGV1#

 2
16566 - HOSE, RESERVE TANK OUTLET
16566-0P010

1ARFE..AGV1#

 1
16571 - HOSE, RADIATOR, INLET
16571-36050

1ARFE..AGV1#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-A0020

1ARFE..AGV1#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-A0020

1ARFE..AGV1#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-0V010

1ARFE..AGV1#

 1
16572-0V210

1ARFE..AGV1#

RUSSIA SPEC

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-A0020

1ARFE..AGV1#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-A0020

1ARFE..AGV1#

 2
16611 - BRACKET, RADIATOR RESERVE TANK
16611-0V020

1ARFE..AGV1#

 1
16711 - SHROUD, FAN
16711-0V010

1ARFE..AGV1#

 1
Common parts
90080-11208
90119-06991
90119-A0373
90182-A0003
90467-A0012
93385-16012
Linked diagrams
1104
1709

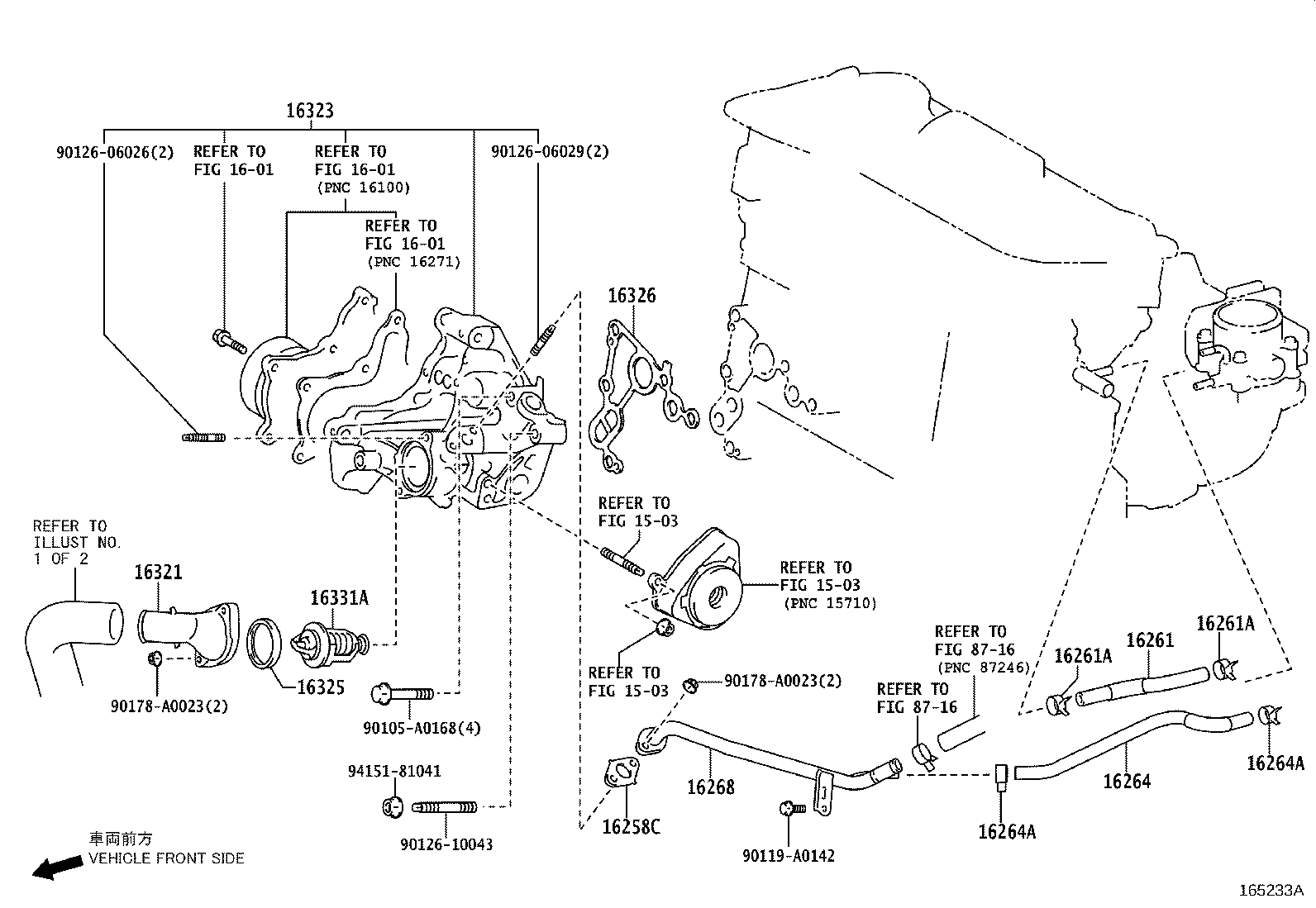

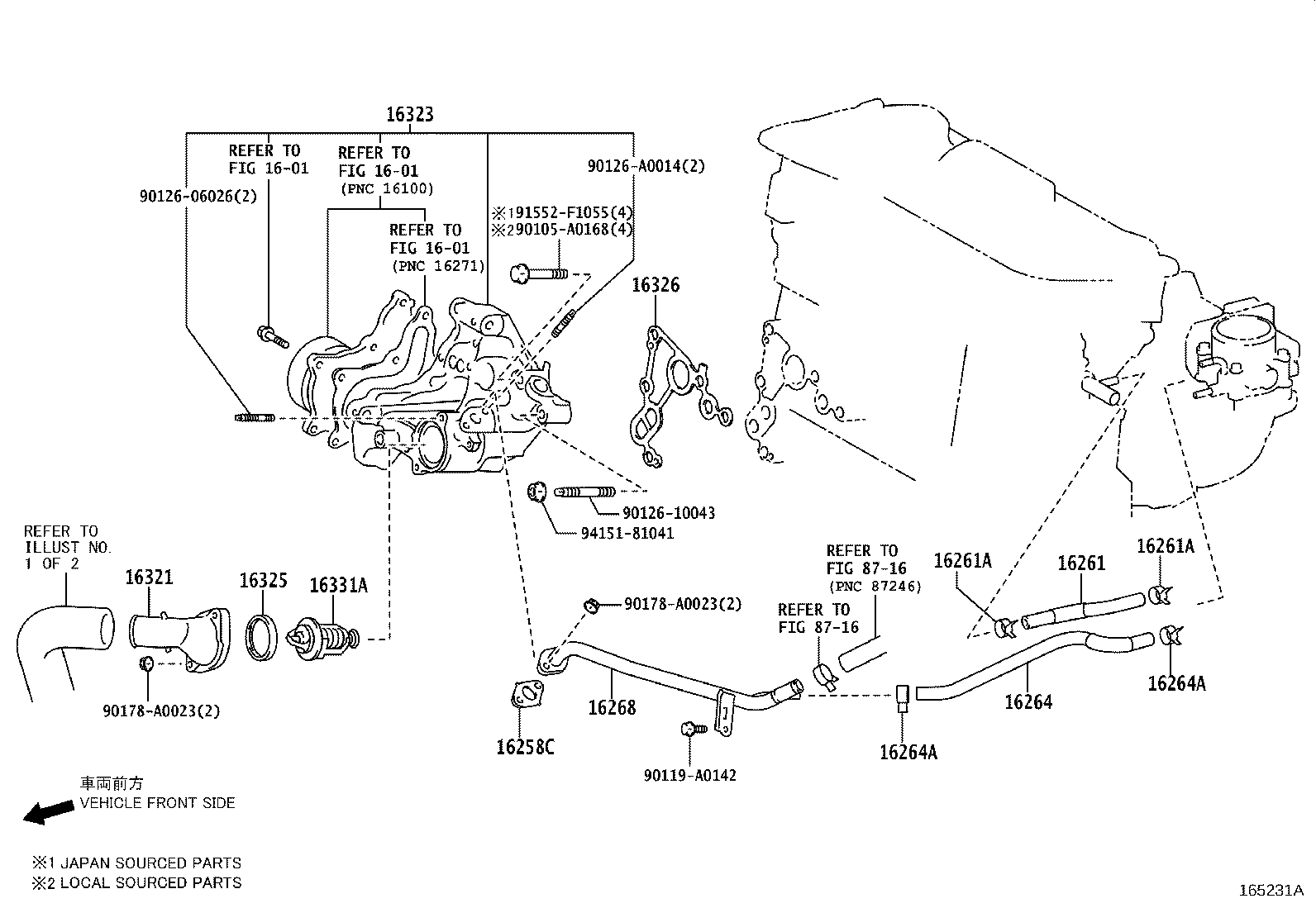

ILLUST NO. 2 OF 2(1303- )

Click highlighted areas on diagram

W/O(ENGINE OIL COOLER)

diagram 1601 1601 1601 16258C 16261 16261A 16261A 16264 16264A 16264A 16268 16321 16323 16325 16326 16331A 8716 8716 90105A0168 90119A0142 9012606026 9012610043 90126A0014 90178A0023 90178A0023 91552F1055 9415181041
Part # Description Qty Price
16258C - GASKET(FOR WATER BY-PASS PIPE)
16258-0H010

1ARFE..AGV1#

 1
16261 - HOSE, WATER BY-PASS
16261-0V020

1ARFE..AGV1#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

1ARFE..AGV1#

(J)

 2
90466-A0017

1ARFE..AGV1#

(L)

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

1ARFE..AGV1#

(J)

 2
90466-A0017

1ARFE..AGV1#

(L)

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0V020

1ARFE..AGV1#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

1ARFE..AGV1#

(J)

 2
90466-A0017

1ARFE..AGV1#

(L)

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

1ARFE..AGV1#

(J)

 2
90466-A0017

1ARFE..AGV1#

(L)

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-36010

1ARFE..AGV1#

(J)

 1
16268-0V080

1ARFE..AGV1#

(L)

 1
16321 - INLET, WATER
16321-0V010

1ARFE..AGV1#

 1
16323 - HOUSING, WATER INLET
16032-0V011

1ARFE..AGV1#

 1
16032-0V050

1ARFE..AGV1#

RUSSIA SPEC,(L)

 1
16032-36021

1ARFE..AGV1#

RUSSIA SPEC,(J)

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-28010

1ARFE..AGV1#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-36010

1ARFE..AGV1#

 1
16331A - THERMOSTAT
90916-03129

1ARFE..AGV1#

*WAX 82-95,(J)

 1
90916-A3003

1ARFE..AGV1#

*WAX 82-95,(L)

 1
Common parts
90105-A0168
90119-A0142
90126-06026
90126-10043
90126-A0014
90178-A0023
91552-F1055
94151-81041
Linked diagrams
1601
8716

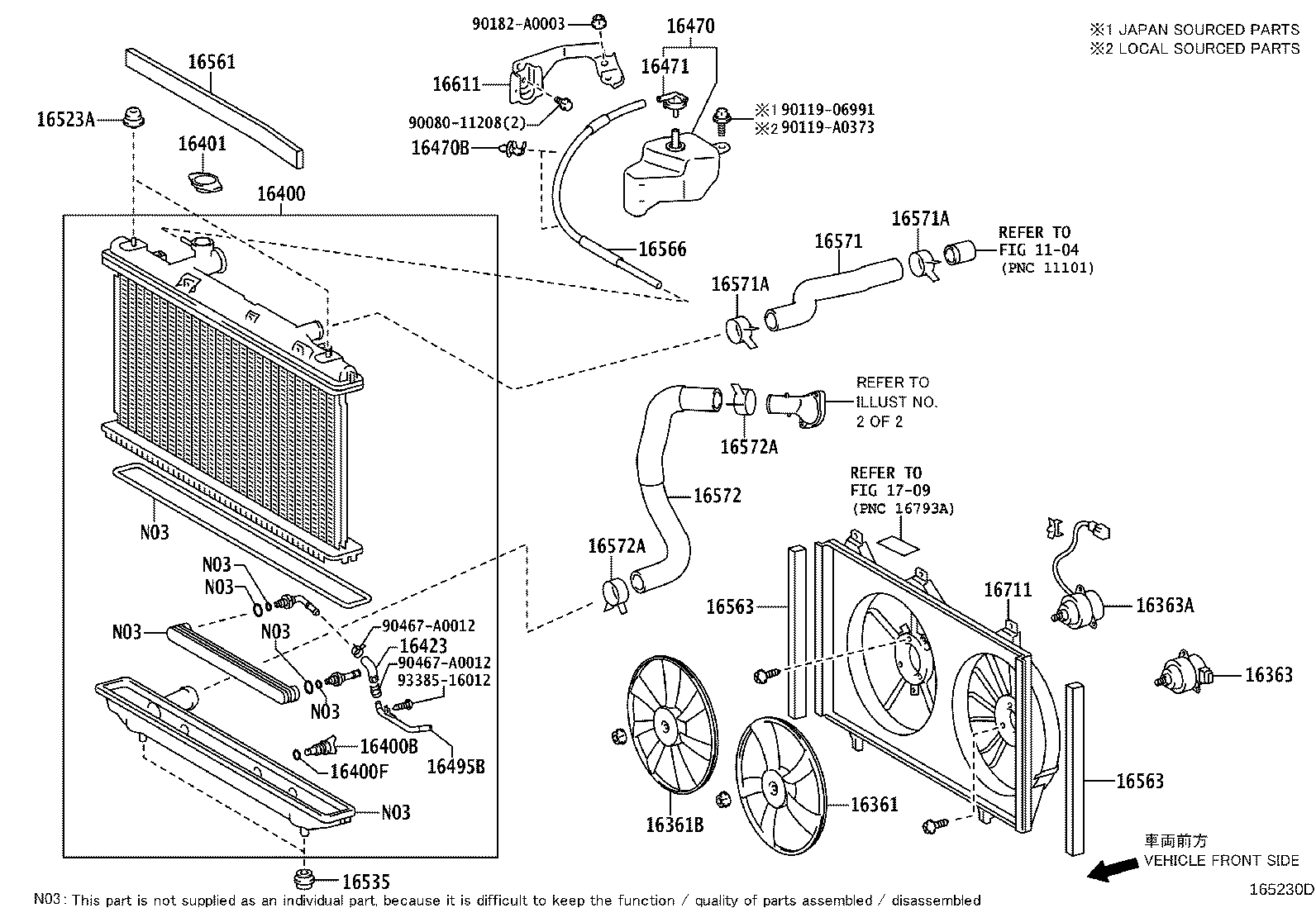

ILLUST NO. 1 OF 2(1303- )

Click highlighted areas on diagram

W(ENGINE OIL COOLER)

diagram 1104 16361 16361B 16363 16363A 16400 16401 16470 16470B 16471 16523A 16535 16561 16563 16563 16566 16571 16571A 16571A 16572 16572A 16572A 16611 16711 1709 9008011208 9011906991 90119A0373 90182A0003
Part # Description Qty Price
16361 - FAN
16361-0V400

1ARFE..AGV1#

 1
16361B - FAN, NO.2
16361-0V410

1ARFE..AGV1#

 1
16363 - MOTOR, COOLING FAN
16363-0V160

1ARFE..AGV1#

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-0V400

1ARFE..AGV1#

 1
16400 - RADIATOR ASSY
16400-0V010

1ARFE..AGV1#

 1
16400-0V090

1ARFE..AGV1#

RUSSIA SPEC

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-31520

1ARFE..AGV1#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-0V070

1ARFE..AGV1#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90469-12014

1ARFE..AGV1#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16471-AA010

1ARFE..AGV1#

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-AD010

1ARFE..AGV1#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-0H030

1ARFE..AGV1#

 2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-0V010

1ARFE..AGV1#

 1
16563 - SEAL, RADIATOR TO SUPPORT, NO.3
16563-0V010

1ARFE..AGV1#

 2
16563 - SEAL, RADIATOR TO SUPPORT, NO.3
16563-0V010

1ARFE..AGV1#

 2
16566 - HOSE, RESERVE TANK OUTLET
16566-0P010

1ARFE..AGV1#

 1
16571 - HOSE, RADIATOR, INLET
16571-36050

1ARFE..AGV1#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-A0020

1ARFE..AGV1#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-A0020

1ARFE..AGV1#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-0V010

1ARFE..AGV1#

 1
16572-0V210

1ARFE..AGV1#

RUSSIA SPEC

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-A0020

1ARFE..AGV1#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-A0020

1ARFE..AGV1#

 2
16611 - BRACKET, RADIATOR RESERVE TANK
16611-0V020

1ARFE..AGV1#

 1
16711 - SHROUD, FAN
16711-0V010

1ARFE..AGV1#

 1
Common parts
90080-11208
90119-06991
90119-A0373
90182-A0003
Linked diagrams
1104
1709

ILLUST NO. 2 OF 2(1303- )

Click highlighted areas on diagram

W(ENGINE OIL COOLER)

diagram 1503 1503 1503 1601 1601 1601 16258C 16261 16261A 16261A 16264 16264A 16264A 16268 16321 16323 16325 16326 16331A 8716 8716 90105A0168 90119A0142 9012606026 9012606029 9012610043 90178A0023 90178A0023 9415181041
Part # Description Qty Price
16258C - GASKET(FOR WATER BY-PASS PIPE)
16258-0H010

1ARFE..AGV1#

 1
16261 - HOSE, WATER BY-PASS
16261-0V020

1ARFE..AGV1#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

1ARFE..AGV1#

(J)

 2
90466-A0017

1ARFE..AGV1#

(L)

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

1ARFE..AGV1#

(J)

 2
90466-A0017

1ARFE..AGV1#

(L)

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0V020

1ARFE..AGV1#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

1ARFE..AGV1#

(J)

 2
90466-A0017

1ARFE..AGV1#

(L)

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

1ARFE..AGV1#

(J)

 2
90466-A0017

1ARFE..AGV1#

(L)

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-36010

1ARFE..AGV1#

(J)

 1
16268-0V080

1ARFE..AGV1#

(L)

 1
16321 - INLET, WATER
16321-0V010

1ARFE..AGV1#

 1
16323 - HOUSING, WATER INLET
16032-0V011

1ARFE..AGV1#

 1
16032-0V050

1ARFE..AGV1#

RUSSIA SPEC,(L)

 1
16032-36021

1ARFE..AGV1#

RUSSIA SPEC,(J)

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-28010

1ARFE..AGV1#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-36010

1ARFE..AGV1#

 1
16331A - THERMOSTAT
90916-03129

1ARFE..AGV1#

*WAX 82-95,(J)

 1
90916-A3003

1ARFE..AGV1#

*WAX 82-95,(L)

 1
Common parts
90105-A0168
90119-A0142
90126-06026
90126-06029
90126-10043
90178-A0023
94151-81041
Linked diagrams
1503
1601
8716
