AGV15L-AWTGKC (2013)

Toyota Venza

Production Mar 2013 - Jun 2015
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1303- )

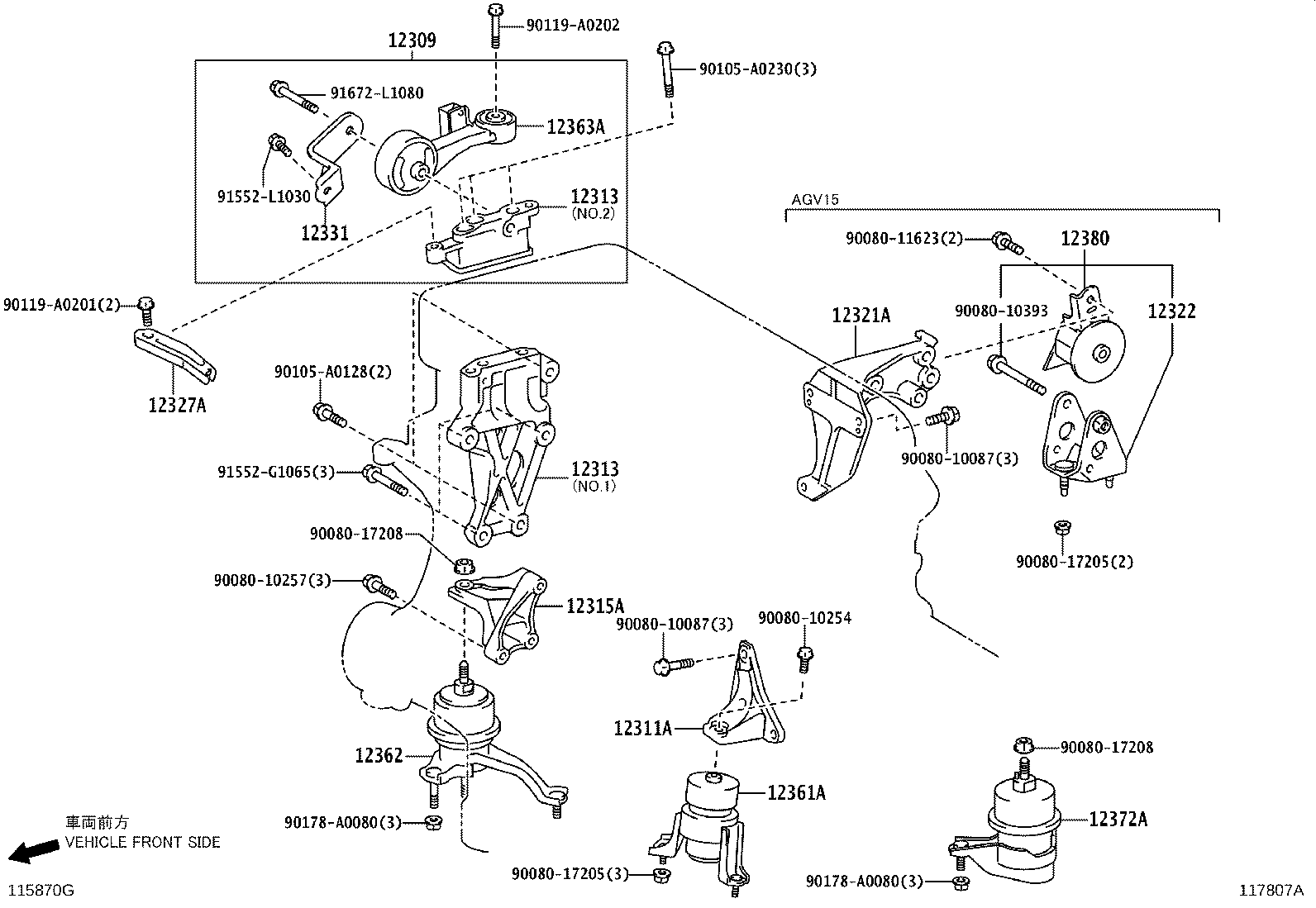

Click highlighted areas on diagram

diagram 12309 12311A 12313 12313 12315A 12321A 12322 12327A 12331 12361A 12362 12363A 12372A 12380 9008010087 9008010087 9008010254 9008010257 9008010393 9008011623 9008017205 9008017205 9008017208 9008017208 90105A0128 90105A0230 90119A0201 90119A0202 90178A0080 90178A0080 91552G1065 91552L1030 91672L1080
Part # Description Qty Price
12309 - ROD SUB-ASSY, ENGINE MOVING CONTROL
12309-0V010

1ARFE..AGV1#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0V170

1ARFE..AGV1#

 1
12311-36020

1ARFE..AGV1#

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-36010

1ARFE..AGV1#

(J),NO.1

 1
12313-0V010

1ARFE..AGV1#

NO.2

 1
12313-0V040

1ARFE..AGV1#

(L),NO.1

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-36010

1ARFE..AGV1#

(J),NO.1

 1
12313-0V010

1ARFE..AGV1#

NO.2

 1
12313-0V040

1ARFE..AGV1#

(L),NO.1

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12319-0V020

1ARFE..AGV1#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-36010

1ARFE..AGV15

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-20040

1ARFE..AGV15

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-0V010

1ARFE..AGV1#

 1
12331 - STAY, ENGINE MOUNTING, NO.3 RH
12331-0V010

1ARFE..AGV1#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0H100

1ARFE..AGV1#

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-0V010

1ARFE..AGV1#

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0V010

1ARFE..AGV1#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0H090

1ARFE..AGV1#

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-0V011

1ARFE..AGV15

 1
Common parts
90080-10087
90080-10254
90080-10257
90080-10393
90080-11623
90080-17205
90080-17208
90105-A0128
90105-A0230
90119-A0201
90119-A0202
90178-A0080
91552-G1065
91552-L1030
91672-L1080
