AGV15L-AWTGKC (2013)

Toyota Venza

Production Mar 2013 - Jun 2015
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

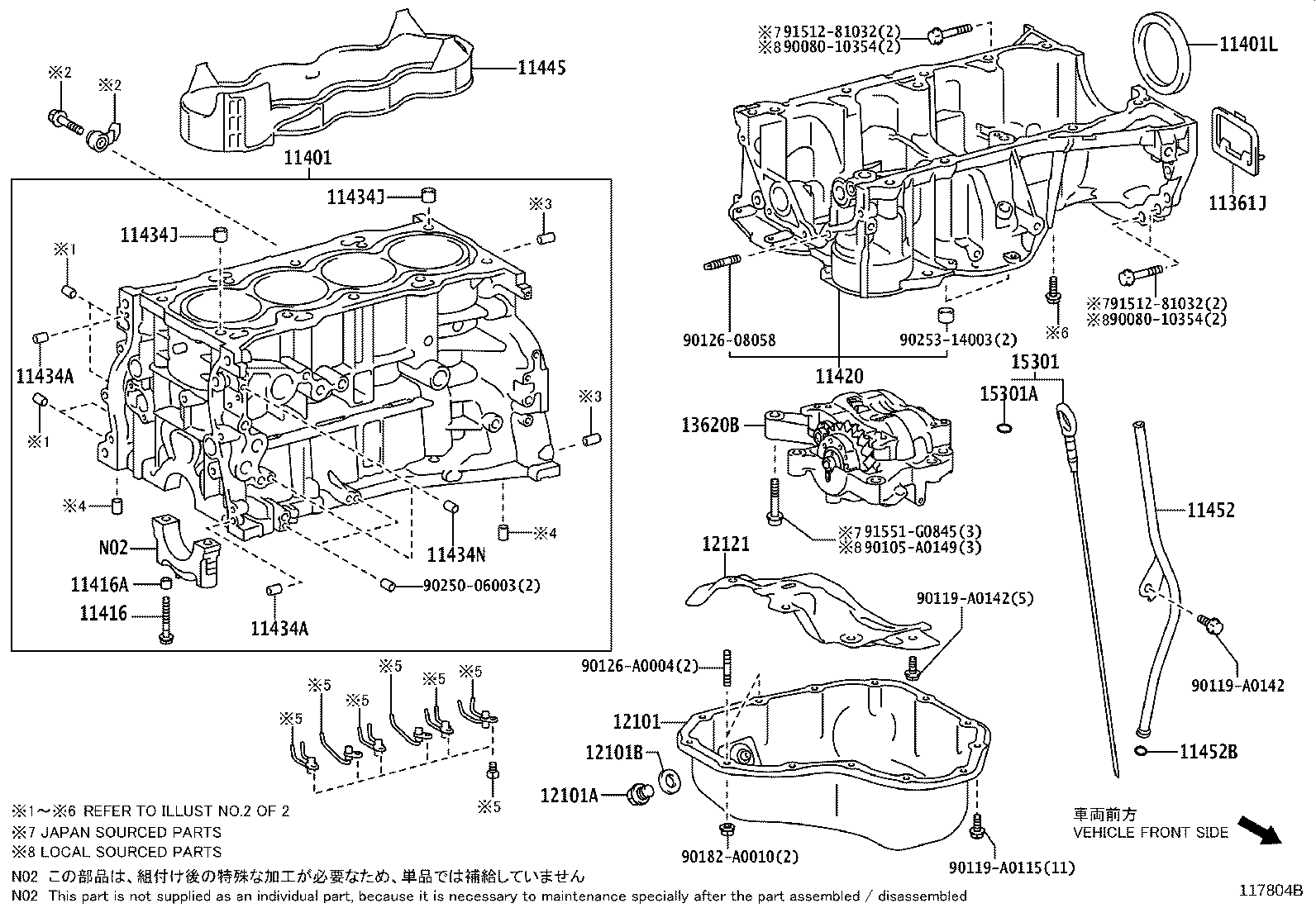

ILLUST NO. 1 OF 2(1303- )

Click highlighted areas on diagram

diagram 11361J 11401 11401L 11416 11416A 11420 11434A 11434A 11434J 11434J 11434N 11445 11452 11452B 12101 12101A 12101B 12121 13620B 15301 15301A 9008010354 9008010354 90105A0149 90119A0115 90119A0142 90119A0142 9012608058 90126A0004 90182A0010 9025006003 9025314003 9151281032 9151281032 91551G0845
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-28010

1ARFE..AGV1#

(J)

 1
11361-0H020

1ARFE..AGV1#

(L)

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-09530

1ARFE..AGV1#

 1
11410-09531

1ARFE..AGV1#

 1
11401L - SEAL, ENGINE REAR OIL
90311-A0020

1ARFE..AGV1#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-A2008

1ARFE..AGV1#

 10
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-13017

1ARFE..AGV1#

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-0V010

1ARFE..AGV1#

(L)

 1
11420-36020

1ARFE..AGV1#

(J)

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06003

1ARFE..AGV1#

L=14,OD=6

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06003

1ARFE..AGV1#

L=14,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15001

1ARFE..AGV1#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15001

1ARFE..AGV1#

 2
11434N - PIN, STRAIGHT(FOR WATER INLET HOUSING)
90250-06003

1ARFE..AGV1#

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-0V010

1ARFE..AGV1#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-0V010

1ARFE..AGV1#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96741-19010

1ARFE..AGV1#

 1
12101 - PAN SUB-ASSY, OIL
12101-0V010

1ARFE..AGV1#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1ARFE..AGV1#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1ARFE..AGV1#

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-0V010

1ARFE..AGV1#

 1
13620B - BALANCER ASSY, ENGINE
13620-36020

1ARFE..AGV1#

(J)

 1
13620-0V021

1ARFE..AGV1#

(L)

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-0V020

1ARFE..AGV1#

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

1ARFE..AGV1#

 1
Common parts
90080-10354
90105-A0149
90119-A0115
90119-A0142
90126-08058
90126-A0004
90182-A0010
90250-06003
90253-14003
91512-81032
91551-G0845

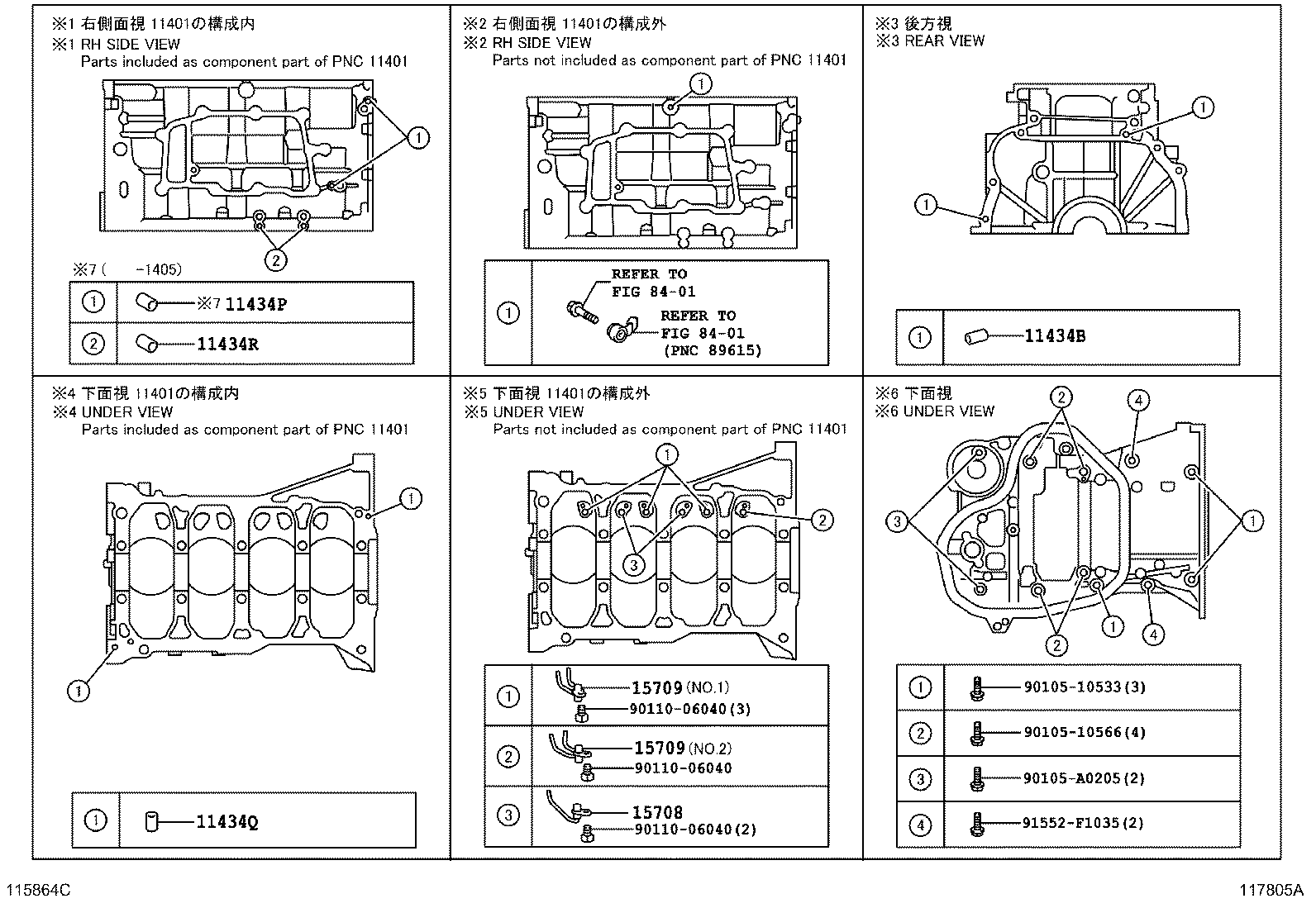

ILLUST NO. 2 OF 2(1303- )

Click highlighted areas on diagram

diagram 11434B 11434P 11434Q 11434R 15708 15709 15709 8401 8401 9010510533 9010510566 90105A0205 9011006040 9011006040 9011006040 91552F1035
Part # Description Qty Price
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1ARFE..AGV1#

L=22,OD=10

 2
11434P - PIN, STRAIGHT(FOR OIL PUMP SET)
90250-06003

1ARFE..AGV1#

L=14,OD=6

 2
11434Q - PIN, STRAIGHT(FOR CRANKCASE)
90250-06003

1ARFE..AGV1#

L=14,OD=6

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003

1ARFE..AGV1#

 2
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-36010

1ARFE..AGV1#

 2
15709 - NOZZLE SUB-ASSY, OIL, NO.2
15709-36020

1ARFE..AGV1#

NO.2

 1
15709-36010

1ARFE..AGV1#

NO.1

 3
15709 - NOZZLE SUB-ASSY, OIL, NO.2
15709-36020

1ARFE..AGV1#

NO.2

 1
15709-36010

1ARFE..AGV1#

NO.1

 3
Common parts
90105-10533
90105-10566
90105-A0205
90110-06040
91552-F1035
Linked diagrams
8401
