AGV10L-AWTGKC (2013)
Toyota Venza
Production
Mar 2013
-
Jun 2015
Engine
1ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

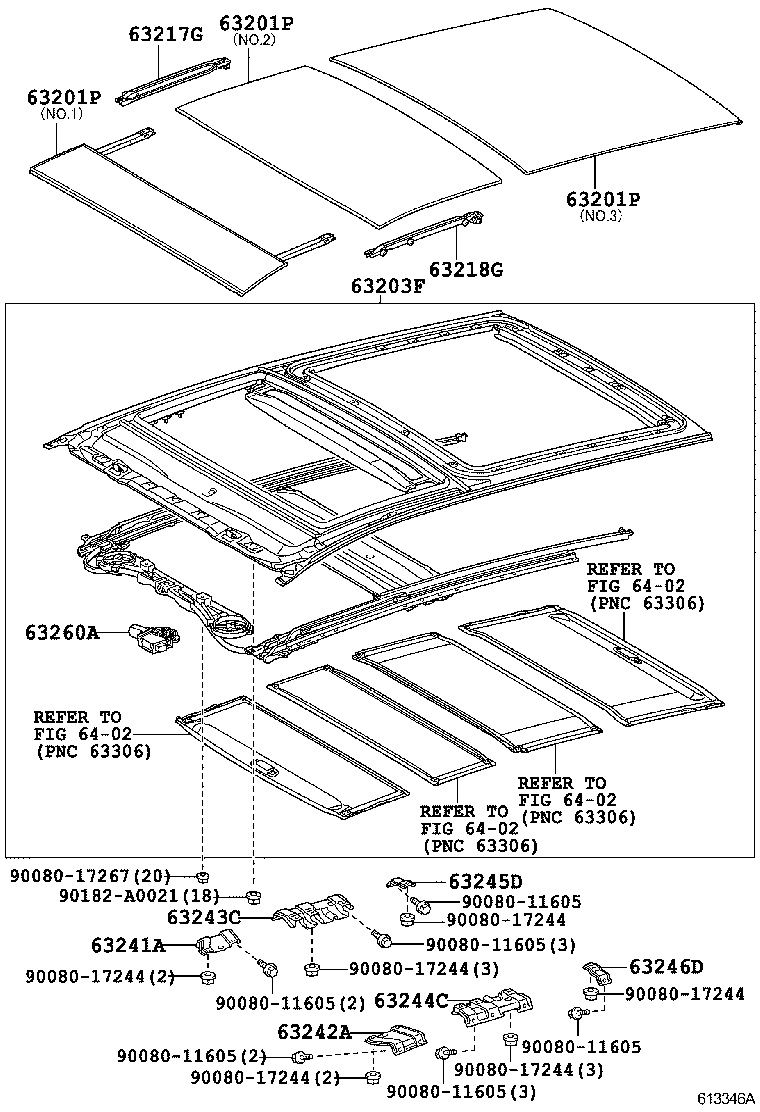

ILLUST NO. 2 OF 2(1303- )
Click highlighted areas on diagram
SLIDING ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201P - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0T030 |
AGV1# NO.3 |
1 | ||
| 63201-0T020 |
AGV1# NO.2 |
1 | ||
| 63201-0T010 |
AGV1# NO.1 |
1 | ||
| 63201P - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0T030 |
AGV1# NO.3 |
1 | ||
| 63201-0T020 |
AGV1# NO.2 |
1 | ||
| 63201-0T010 |
AGV1# NO.1 |
1 | ||
| 63201P - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0T030 |
AGV1# NO.3 |
1 | ||
| 63201-0T020 |
AGV1# NO.2 |
1 | ||
| 63201-0T010 |
AGV1# NO.1 |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-0T010A0 |
AGV1# IVORY,TRIM0# |
1 | ||
| 63203-0T010B0 |
AGV1# GRAY,TRIM1#,2# |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-33060 |
AGV1# |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-33050 |
AGV1# |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-0T010 |
AGV1# |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63242-0T010 |
AGV1# |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-0T010 |
AGV1# |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-0T010 |
AGV1# |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-0T010 |
AGV1# |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63245-0T010 |
AGV1# |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0T010 |
AGV1# |
1 | ||
| Common parts | ||||
| 90080-11605 | ||||
| 90080-17244 | ||||
| 90080-17267 | ||||
| 90182-A0021 | ||||
| Linked diagrams | ||||
| 6402 | ||||

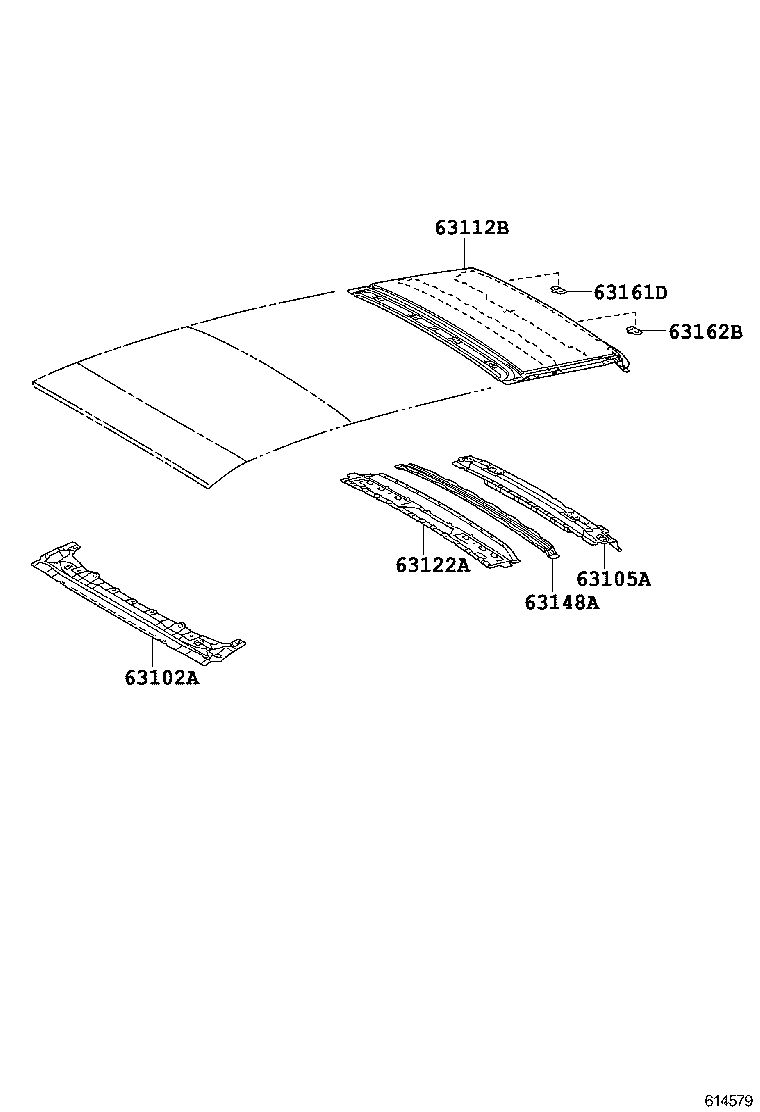

ILLUST NO. 1 OF 2(1303- )
Click highlighted areas on diagram
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0T902 |
AGV1# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0T011 |
AGV1# |
1 | ||
| 63105-0T010 |
AGV1# |
1 | ||
| 63112B - PANEL, ROOF, REAR | ||||
| 63113-0T010 |
AGV1# |
1 | ||
| 63122A - REINFORCEMENT, ROOF PANEL, FRONT | ||||
| 63122-0T010 |
AGV1# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-0T010 |
AGV1# |
1 | ||
| 63161D - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 63161-01010 |
AGV1# |
1 | ||
| 63162B - PLATE, ROOF HEADER PANEL, NO.2 | ||||
| 63162-01010 |
AGV1# |
1 | ||
