NCP61L-HHPNKV (2005)
Toyota Toyota Xa

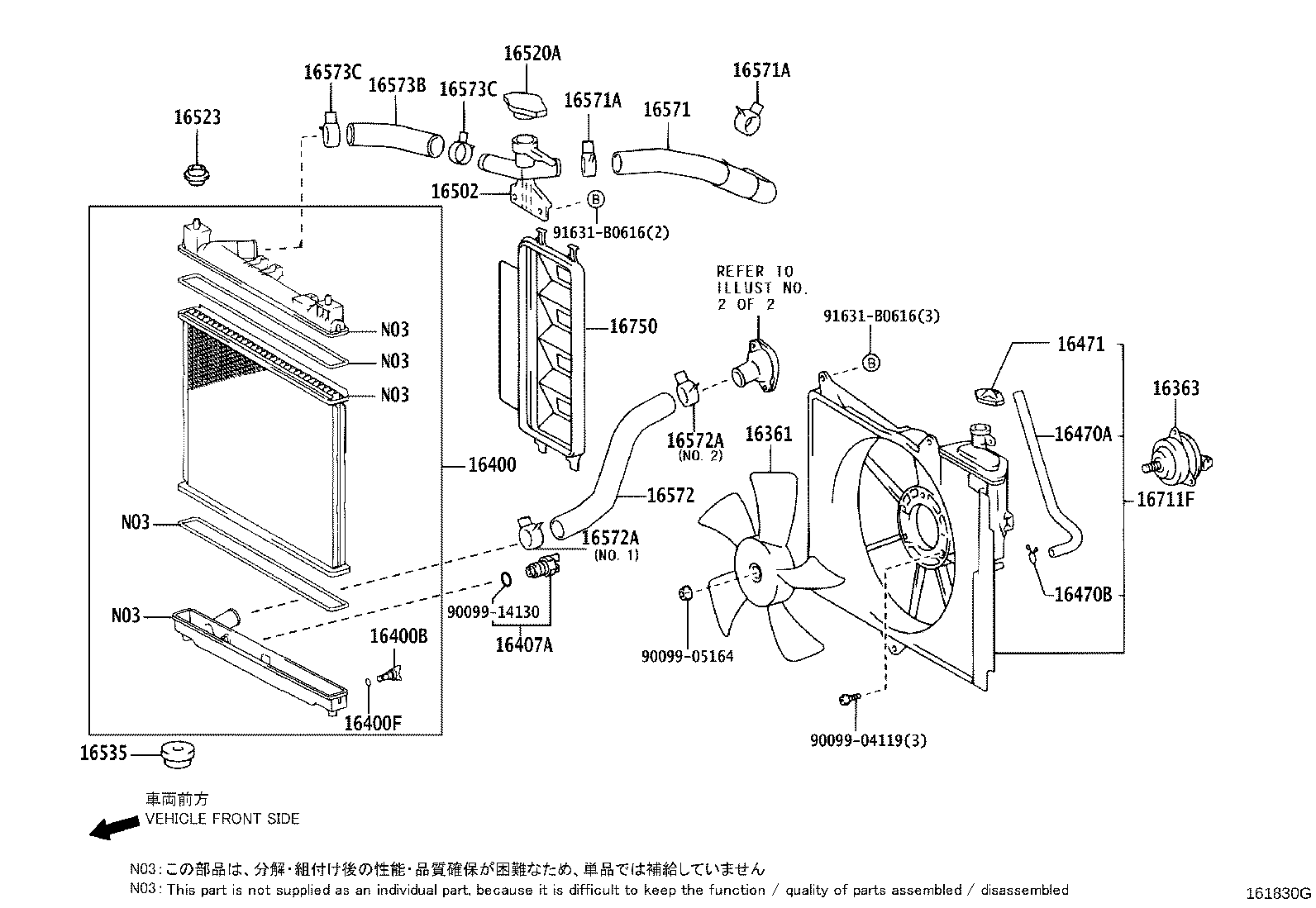

ILLUST NO. 1 OF 2(0308-0512)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-21050 |
1NZFE..NCP61 |
1 | ||
| 16361-23050 |
1NZFE..NCP61 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-21050 |
1NZFE..NCP61 |
1 | ||
| 16363-21050 |
1NZFE..NCP61 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-21210 |
1NZFE..NCP61..4FC |
1 | ||
| 16400-21210 |
1NZFE..NCP61..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1NZFE..NCP61 |
1 | ||
| 23322-54010 |
1NZFE..NCP61 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NZFE..NCP61 |
1 | ||
| 16492-21050 |
1NZFE..NCP61 |
1 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-7A130 |
1NZFE..NCP61 |
1 | ||
| 16407-7A130 |
1NZFE..NCP61 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1NZFE..NCP61 *H,L=430 |
1 | ||
| 90445-12078 |
1NZFE..NCP61 *H,L=430 |
1 | ||
| 16377-21020 |
1NZFE..NCP61 *H,L=545 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFE..NCP61 |
1 | ||
| 90467-11085 |
1NZFE..NCP61 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23010 |
1NZFE..NCP61 |
1 | ||
| 16471-23030 |
1NZFE..NCP61 |
1 | ||
| 16471-23010 |
1NZFE..NCP61 |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-21010 |
1NZFE..NCP61 |
1 | ||
| 16502-21010 |
1NZFE..NCP61 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-62100 |
1NZFE..NCP61 |
1 | ||
| 16401-62100 |
1NZFE..NCP61 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-23010 |
1NZFE..NCP61 |
2 | ||
| 16523-23010 |
1NZFE..NCP61 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
1NZFE..NCP61 |
2 | ||
| 90480-40016 |
1NZFE..NCP61 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-21020 |
1NZFE..NCP61 |
1 | ||
| 16571-21020 |
1NZFE..NCP61 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-21020 |
1NZFE..NCP61 |
1 | ||
| 16572-21020 |
1NZFE..NCP61 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33006 |
1NZFE..NCP61 NO.2 |
1 | ||
| 90467-34004 |
1NZFE..NCP61 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP61 NO.2 |
1 | ||
| 90467-34004 |
1NZFE..NCP61 NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33006 |
1NZFE..NCP61 NO.2 |
1 | ||
| 90467-34004 |
1NZFE..NCP61 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP61 NO.2 |
1 | ||
| 90467-34004 |
1NZFE..NCP61 NO.1 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-21010 |
1NZFE..NCP61 |
1 | ||
| 16573-21010 |
1NZFE..NCP61 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 16711F - SHROUD, FAN(W/RADIATOR RESERVE TANK) | ||||
| 16711-21030 |
1NZFE..NCP61 |
1 | ||
| 16711-21030 |
1NZFE..NCP61 |
1 | ||
| 16711-21120 |
1NZFE..NCP61 |
1 | ||
| 16750 - DUCT ASSY, FAN SHROUD VENTILATION | ||||
| 16750-21011 |
1NZFE..NCP61 |
1 | ||
| 16750-21011 |
1NZFE..NCP61 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90099-14130 | ||||
| 91631-B0616 | ||||

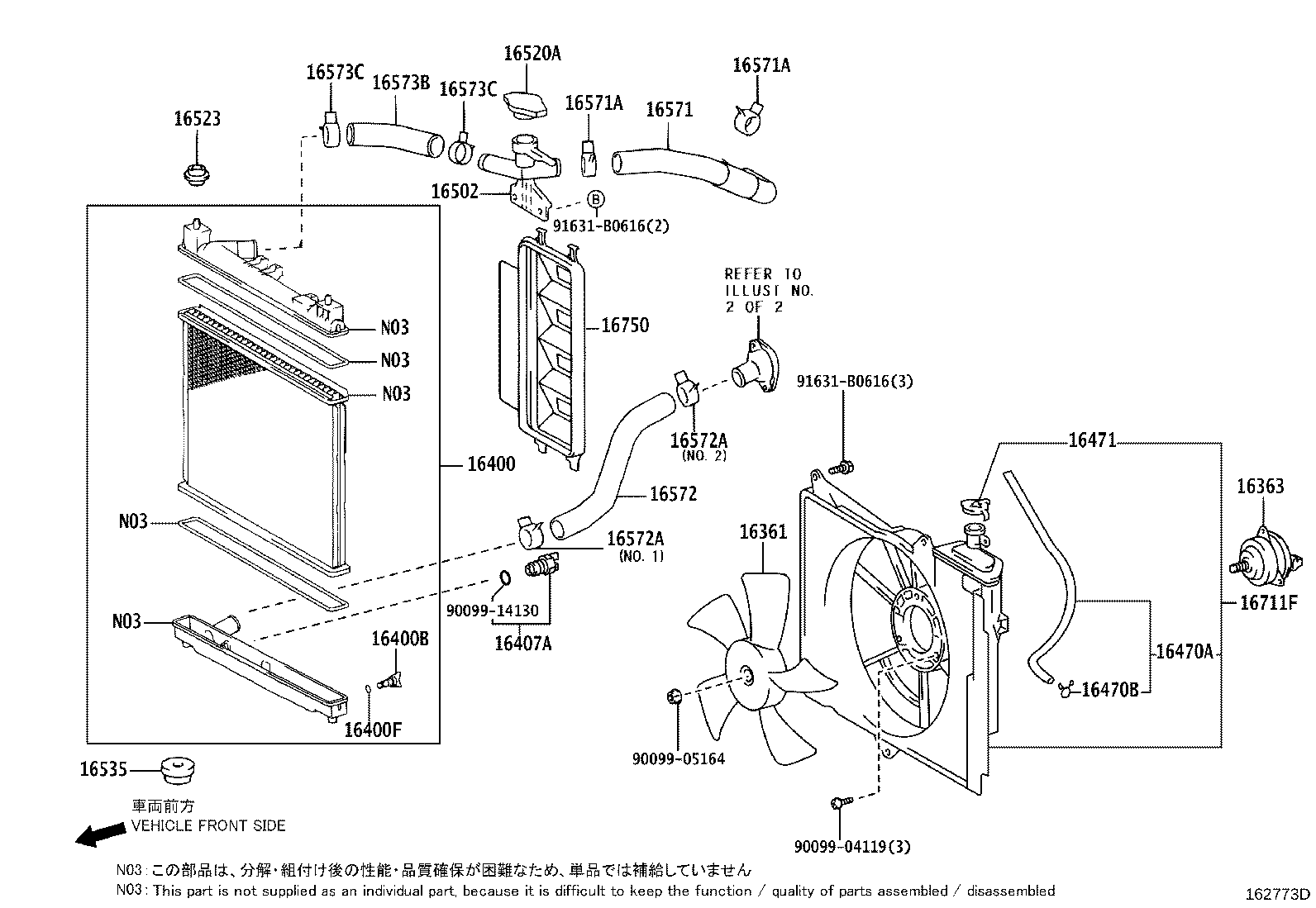

ILLUST NO. 1 OF 2(0512- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-21050 |
1NZFE..NCP61 |
1 | ||
| 16361-23050 |
1NZFE..NCP61 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-21050 |
1NZFE..NCP61 |
1 | ||
| 16363-21050 |
1NZFE..NCP61 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-21210 |
1NZFE..NCP61..4FC |
1 | ||
| 16400-21210 |
1NZFE..NCP61..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1NZFE..NCP61 |
1 | ||
| 23322-54010 |
1NZFE..NCP61 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NZFE..NCP61 |
1 | ||
| 16492-21050 |
1NZFE..NCP61 |
1 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-7A130 |
1NZFE..NCP61 |
1 | ||
| 16407-7A130 |
1NZFE..NCP61 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1NZFE..NCP61 *H,L=430 |
1 | ||
| 90445-12078 |
1NZFE..NCP61 *H,L=430 |
1 | ||
| 16377-21020 |
1NZFE..NCP61 *H,L=545 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFE..NCP61 |
1 | ||
| 90467-11085 |
1NZFE..NCP61 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23010 |
1NZFE..NCP61 |
1 | ||
| 16471-23030 |
1NZFE..NCP61 |
1 | ||
| 16471-23010 |
1NZFE..NCP61 |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-21010 |
1NZFE..NCP61 |
1 | ||
| 16502-21010 |
1NZFE..NCP61 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-62100 |
1NZFE..NCP61 |
1 | ||
| 16401-62100 |
1NZFE..NCP61 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-23010 |
1NZFE..NCP61 |
2 | ||
| 16523-23010 |
1NZFE..NCP61 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
1NZFE..NCP61 |
2 | ||
| 90480-40016 |
1NZFE..NCP61 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-21020 |
1NZFE..NCP61 |
1 | ||
| 16571-21020 |
1NZFE..NCP61 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-21020 |
1NZFE..NCP61 |
1 | ||
| 16572-21020 |
1NZFE..NCP61 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33006 |
1NZFE..NCP61 NO.2 |
1 | ||
| 90467-34004 |
1NZFE..NCP61 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP61 NO.2 |
1 | ||
| 90467-34004 |
1NZFE..NCP61 NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33006 |
1NZFE..NCP61 NO.2 |
1 | ||
| 90467-34004 |
1NZFE..NCP61 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP61 NO.2 |
1 | ||
| 90467-34004 |
1NZFE..NCP61 NO.1 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-21010 |
1NZFE..NCP61 |
1 | ||
| 16573-21010 |
1NZFE..NCP61 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 90467-33006 |
1NZFE..NCP61 |
2 | ||
| 16711F - SHROUD, FAN(W/RADIATOR RESERVE TANK) | ||||
| 16711-21030 |
1NZFE..NCP61 |
1 | ||
| 16711-21030 |
1NZFE..NCP61 |
1 | ||
| 16711-21120 |
1NZFE..NCP61 |
1 | ||
| 16750 - DUCT ASSY, FAN SHROUD VENTILATION | ||||
| 16750-21011 |
1NZFE..NCP61 |
1 | ||
| 16750-21011 |
1NZFE..NCP61 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90099-14130 | ||||
| 91631-B0616 | ||||
