NCP61L-HHPNKV (2003)

Toyota Toyota Xa

Production Aug 2003 - Jul 2005
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

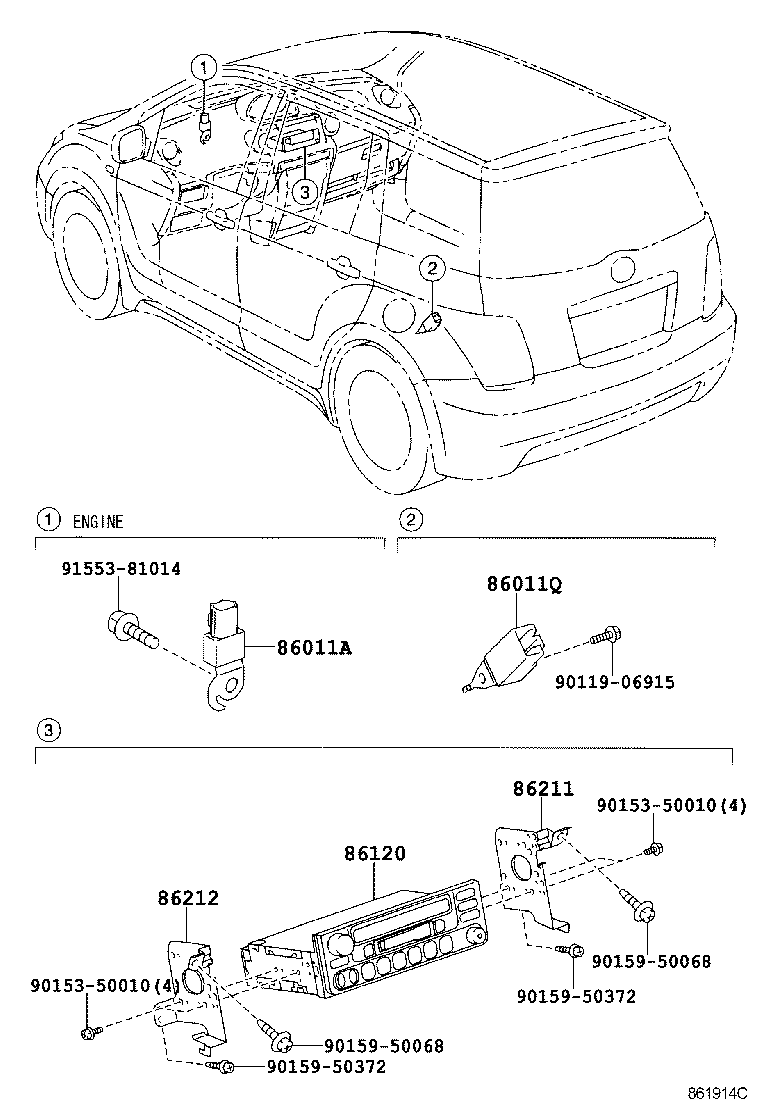

ILLUST NO. 1 OF 2(0308- )

Click highlighted areas on diagram

diagram 86011A 86011Q 86120 86211 86212 9011906915 9015350010 9015350010 9015950068 9015950068 9015950372 9015950372 9155381014
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04141

NCP61

 1
86011Q - CONDENSER, RADIO SETTING
90980-04148

NCP61

 1
86120 - RECEIVER ASSY, RADIO
86120-52290

NCP61

MATSUSHITA,ID=57416,TYPE A:REFER ILLUST.

 1
86120-52290

NCP61

MATSUSHITA,ID=57416,TYPE A:REFER ILLUST.

 1
86211 - BRACKET, RADIO, NO.1
86211-52091

NCP61

 1
86212 - BRACKET, RADIO, NO.2
86212-52091

NCP61

 1
Common parts
90119-06915
90153-50010
90159-50068
90159-50372
91553-81014

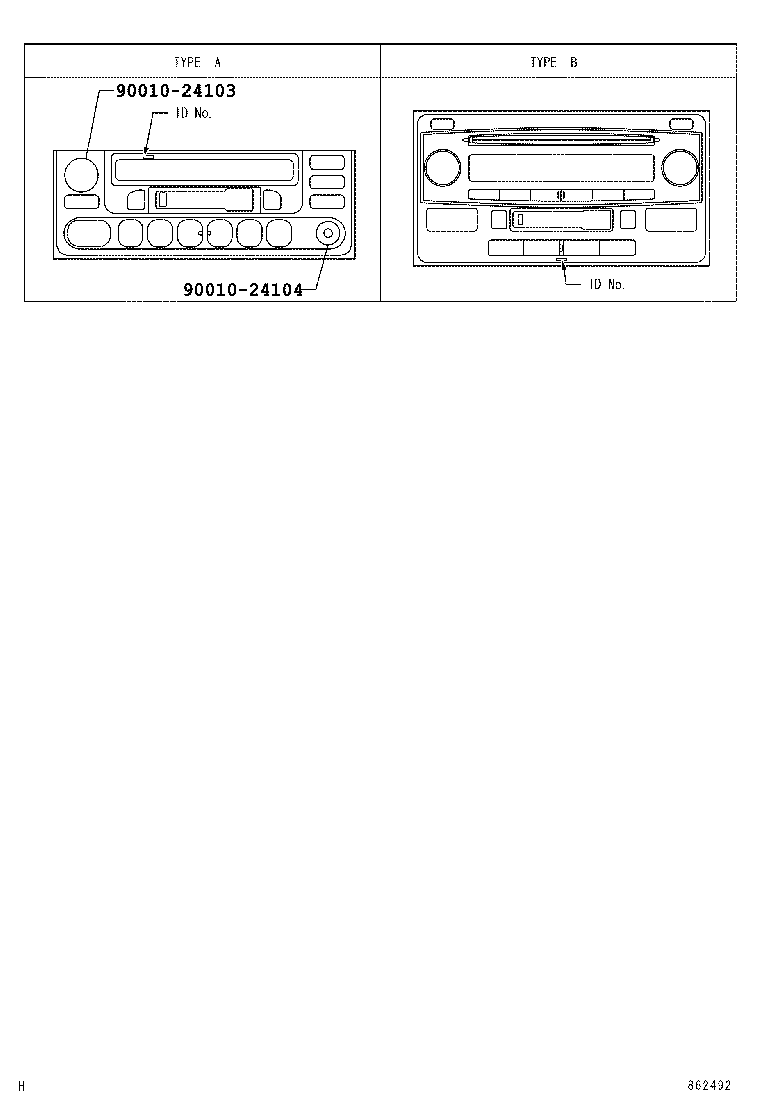

ILLUST NO. 2 OF 2(0308- )

Click highlighted areas on diagram

diagram 9001024103 9001024104
Part # Description Qty Price
Common parts
90010-24103
90010-24104
