NCP61L-HHPNKV (2003)
Toyota Toyota Xa

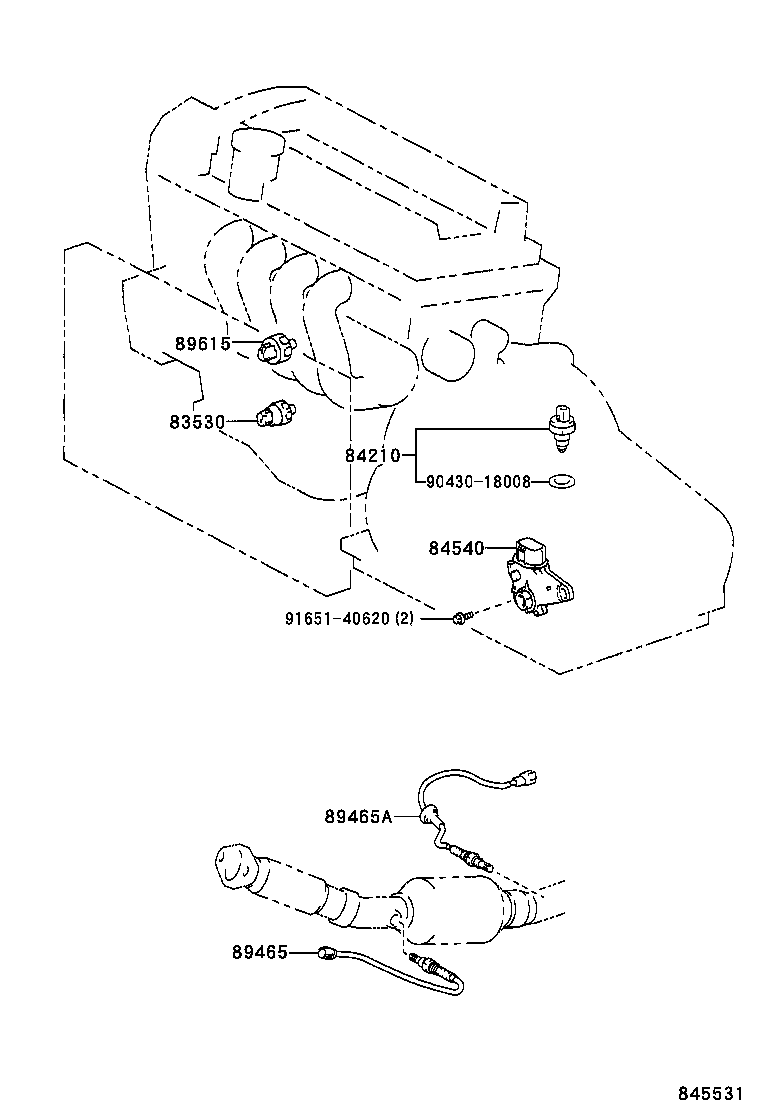

ILLUST NO. 1 OF 7(0308- )
ENGINE TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NCP61 YAZAKI |
1 | ||
| 83530-28020 |
NCP61 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52050 |
NCP61..4FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52190 |
NCP61 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-52200 |
NCP61 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52040 |
NCP61 TOYOTA |
1 | ||
| 89615-52030 |
NCP61 DENSO |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||

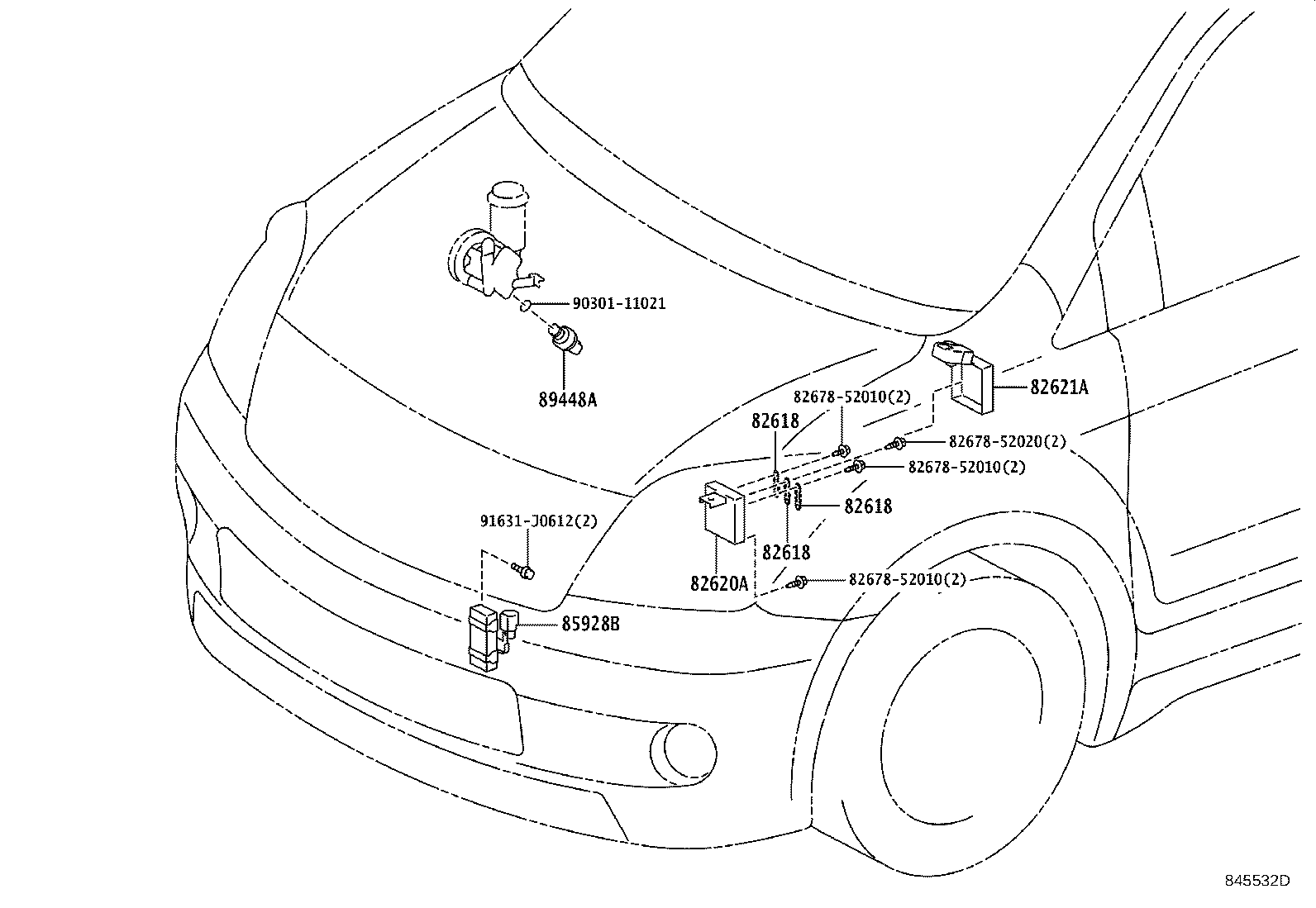

ILLUST NO. 2 OF 7(0308- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52020 |
NCP61 100A |
1 | ||
| 82618-52010 |
NCP61 60A |
2 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52020 |
NCP61 100A |
1 | ||
| 82618-52010 |
NCP61 60A |
2 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52020 |
NCP61 100A |
1 | ||
| 82618-52010 |
NCP61 60A |
2 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52011 |
NCP61 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52011 |
NCP61 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52010 |
NCP61 |
1 | ||
| 89448A - SENSOR, POWER STEERING OIL PRESSURE | ||||
| 89448-51010 |
NCP61 |
1 | ||
| Common parts | ||||
| 82678-52010 | ||||
| 82678-52020 | ||||
| 90301-11021 | ||||
| 91631-J0612 | ||||

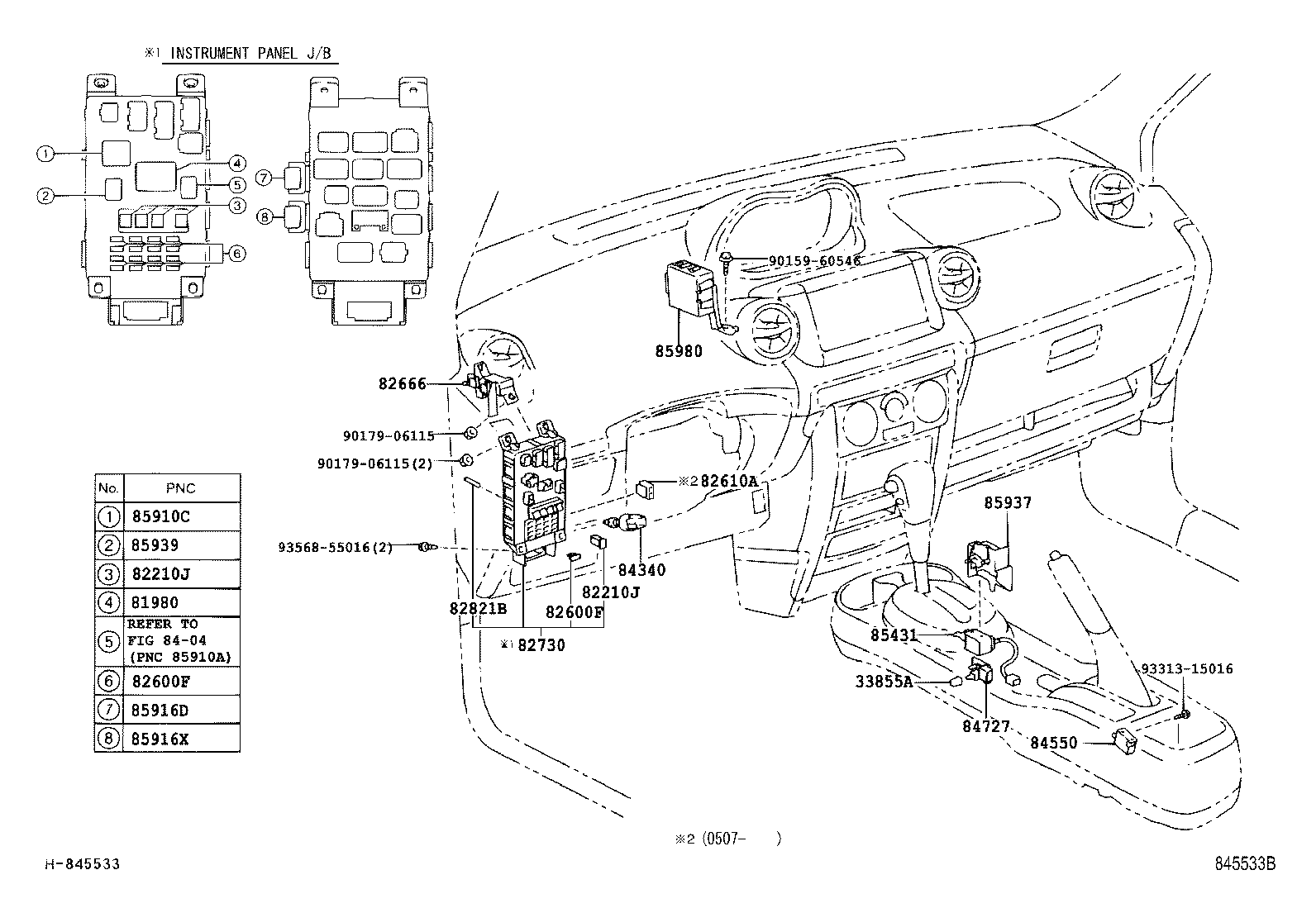

ILLUST NO. 4 OF 7(0308- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33855A - COVER, SHIFT LOCK UNIT | ||||
| 33855-52010 |
NCP61..4FC |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
NCP61 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
NCP61 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
NCP61 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
NCP61 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
NCP61 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
NCP61 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
NCP61 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
NCP61 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
NCP61 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
NCP61 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
NCP61 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
NCP61 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
NCP61 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
NCP61 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
NCP61 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
NCP61 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
NCP61 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
NCP61 25A,MINI FUSE |
1 | ||
| 90982-09009 |
NCP61 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
NCP61 25A,MINI FUSE |
1 | ||
| 90982-09013 |
NCP61 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
NCP61 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
NCP61 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
NCP61 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
NCP61 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
NCP61 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
NCP61 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
NCP61 25A,MINI FUSE |
1 | ||
| 90982-09009 |
NCP61 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
NCP61 25A,MINI FUSE |
1 | ||
| 90982-09013 |
NCP61 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
NCP61 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
NCP61 15A,MINI FUSE,BLUE |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-52010 |
NCP61 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52270 |
NCP61 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
NCP61 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-42010 |
NCP61 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NCP61 |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-52010 |
NCP61..4FC |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-52010 |
NCP61..4FC |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
NCP61 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
NCP61 FRONT FOG LAMP-WITH,MARK 90987-02012 |
1 | ||
| 90987-02027 |
NCP61 FRONT FOG LAMP-WITH,MARK 90987-02027 |
1 | ||
| 85916X - RELAY, KEY ILLUMINATION | ||||
| 90987-02027 |
NCP61 |
1 | ||
| 85937 - PROTECTOR, SHIFT LOCK CONTROL | ||||
| 85937-52010 |
NCP61..4FC |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02027 |
NCP61 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-52031 |
NCP61 |
1 | ||
| Common parts | ||||
| 90159-60546 | ||||
| 90179-06115 | ||||
| 93313-15016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8404 | ||||

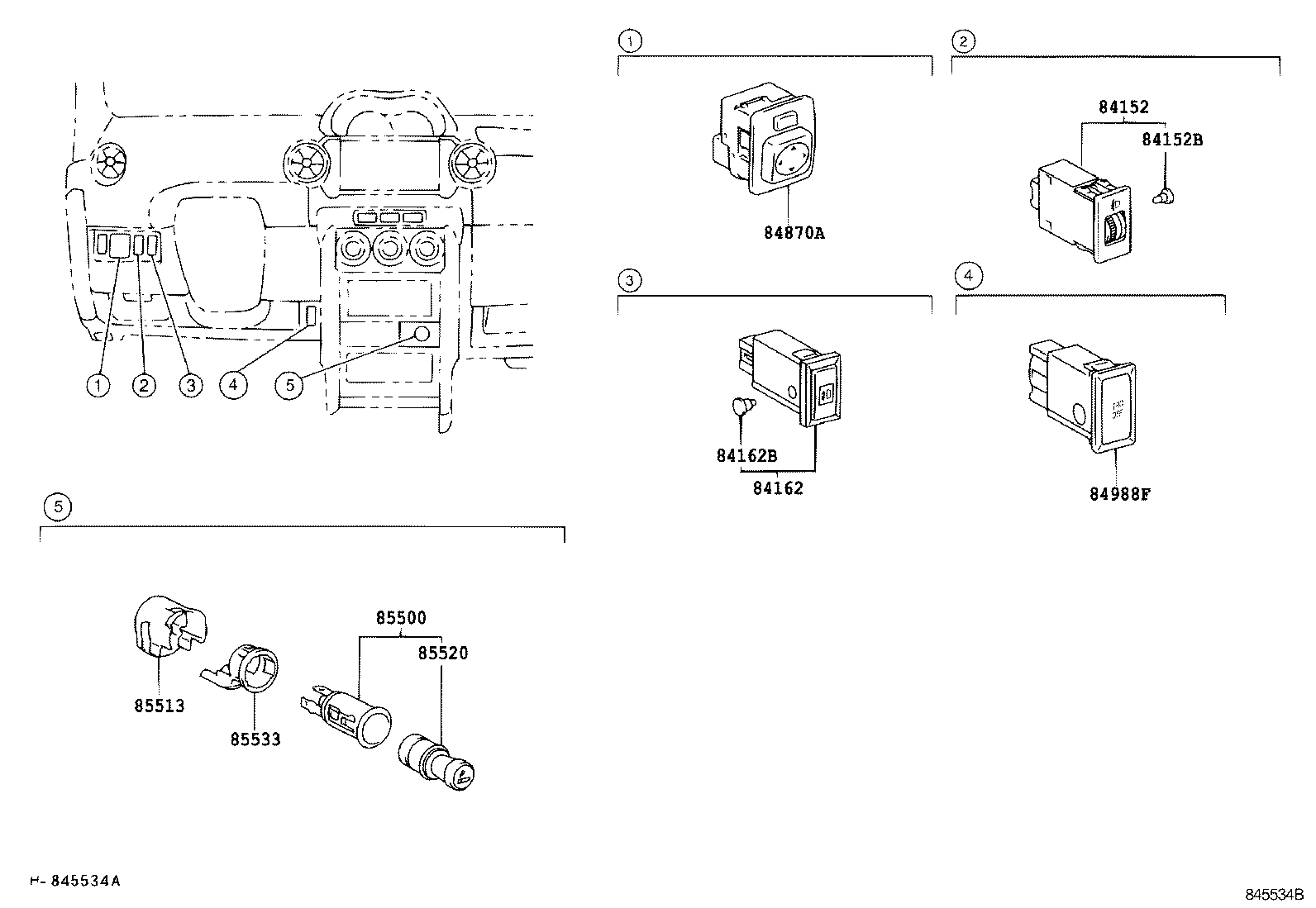

ILLUST NO. 5 OF 7(0308- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-20040 |
NCP61 |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 |
NCP61 14V 40MA, GREEN |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-52030 |
NCP61 FRONT FOG LAMP-WITH |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
NCP61 14V 0.84W,FRONT FOG LAMP-WITH |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
NCP61 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
NCP61 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
NCP61 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NCP61 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
NCP61 |
1 | ||

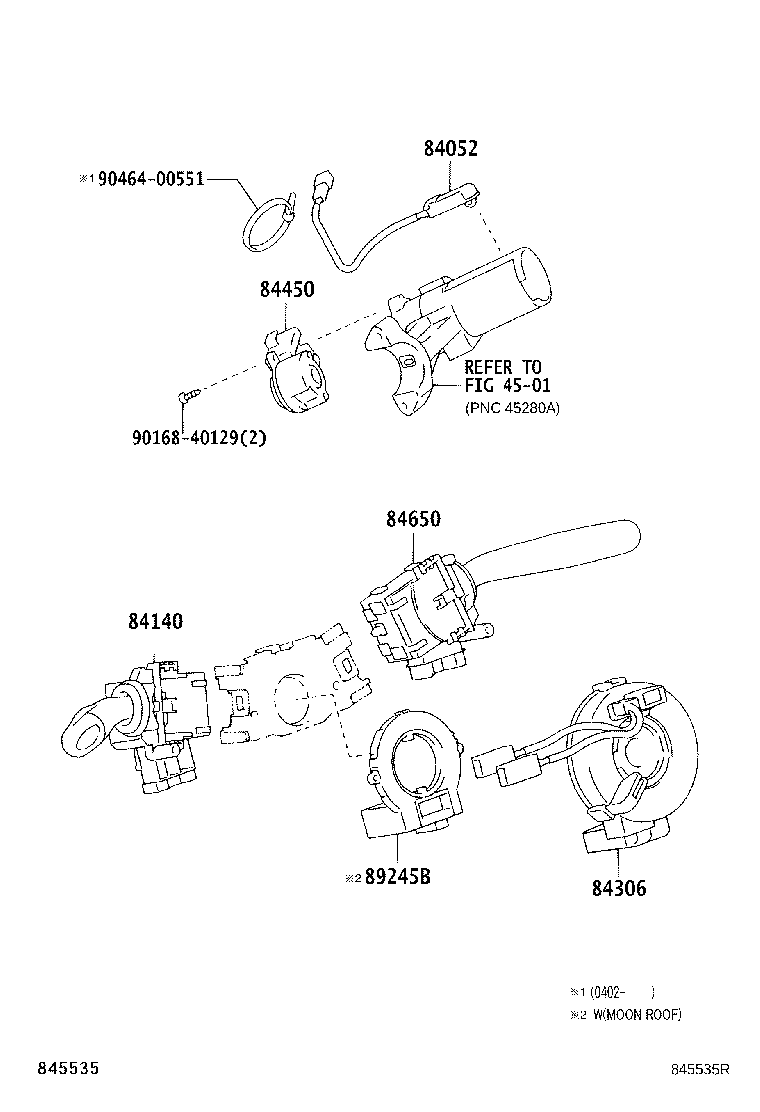

ILLUST NO. 6 OF 7(0308- )
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32030 |
NCP61 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42010 |
NCP61 FRONT FOG LAMP-WITH |
1 | ||
| 84140-52020 |
NCP61 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52060 |
NCP61 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
NCP61 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52040 |
NCP61 |
1 | ||
| 84652-52220 |
NCP61 |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| Linked diagrams | ||||
| 4501 | ||||

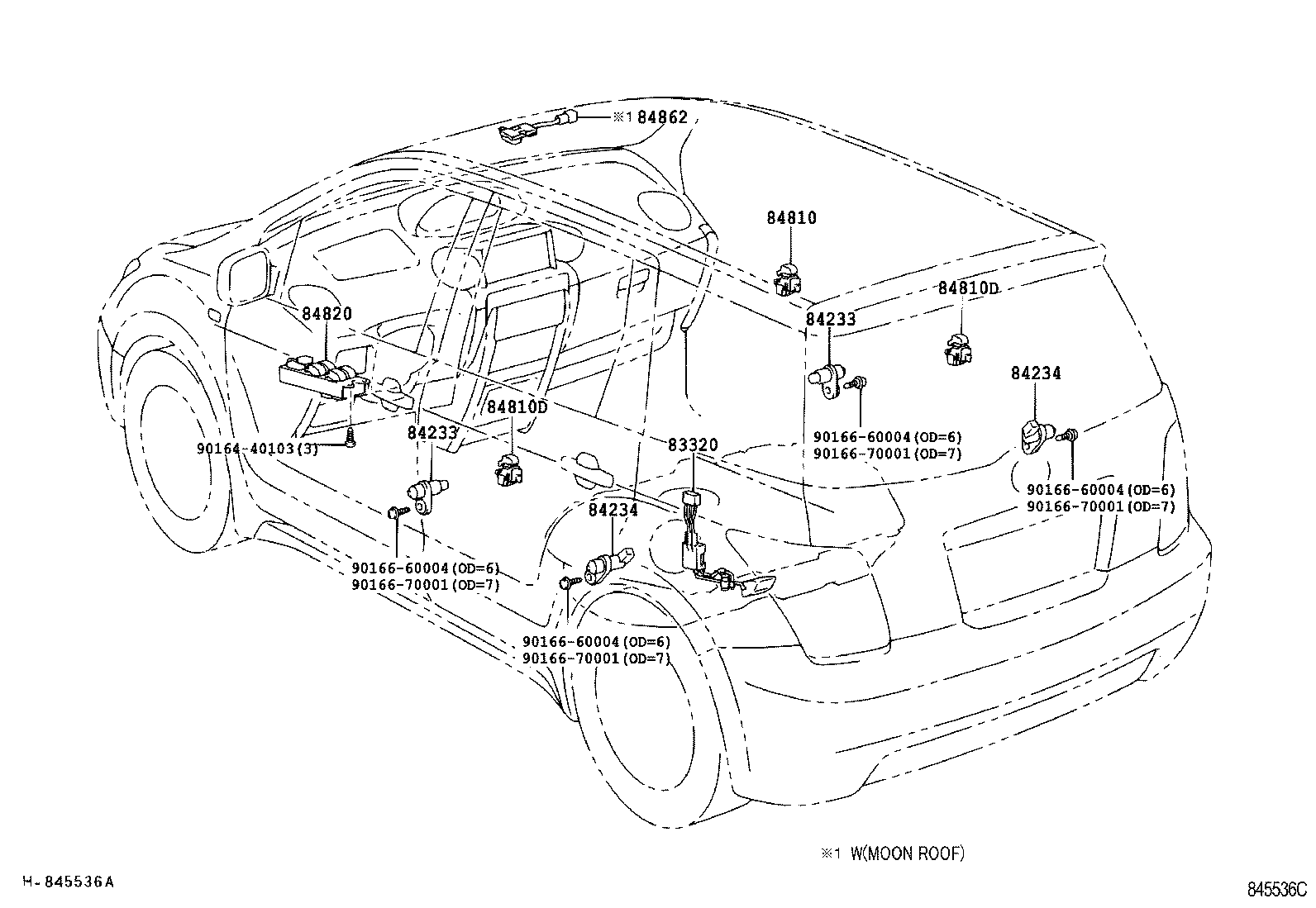

ILLUST NO. 7 OF 7(0308- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52021 |
NCP61 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP61 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP61 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP61 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP61 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
NCP61 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
NCP61 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
NCP61 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-33230 |
NCP61 |
1 | ||
| 84820-33170 |
NCP61 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
| 90166-70001 | ||||

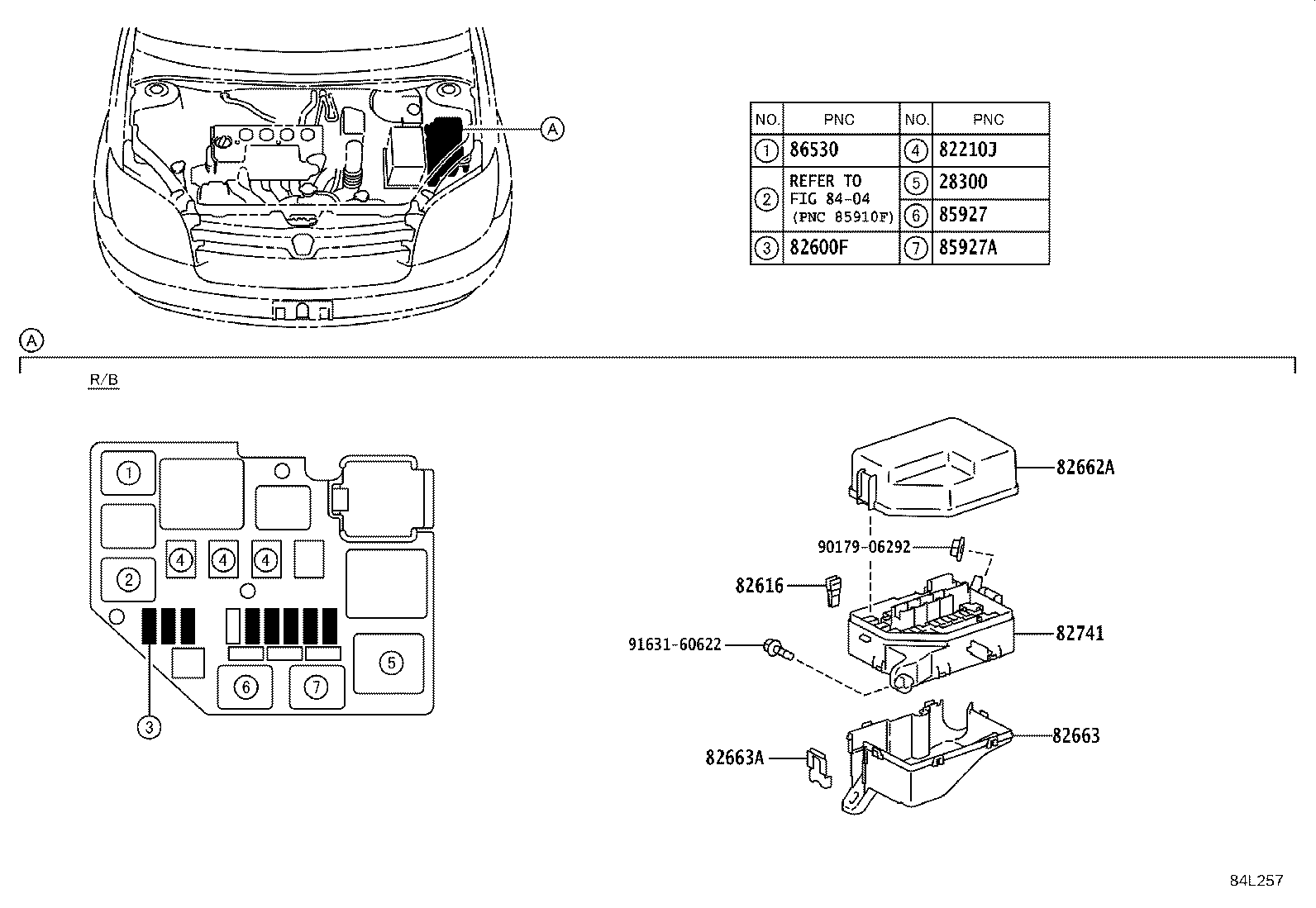

ILLUST NO. 3 OF 7(0308- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1NZFE..NCP61 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
NCP61 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
NCP61 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
NCP61 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
NCP61 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
NCP61 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
NCP61 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
NCP61 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
NCP61 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
NCP61 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
NCP61 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
NCP61 25A,MINI FUSE |
1 | ||
| 90982-09009 |
NCP61 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
NCP61 25A,MINI FUSE |
1 | ||
| 90982-09013 |
NCP61 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
NCP61 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
NCP61 15A,MINI FUSE,BLUE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
NCP61 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52230 |
NCP61 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52040 |
NCP61 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52050 |
NCP61 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52010 |
NCP61 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NCP61 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NCP61 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
NCP61 |
1 | ||
| Common parts | ||||
| 90179-06292 | ||||
| 91631-60622 | ||||
| Linked diagrams | ||||
| 8404 | ||||
