NCP61L-HHPNKV (2003)

Toyota Toyota Xa

Production Aug 2003 - Jul 2005
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )4FC

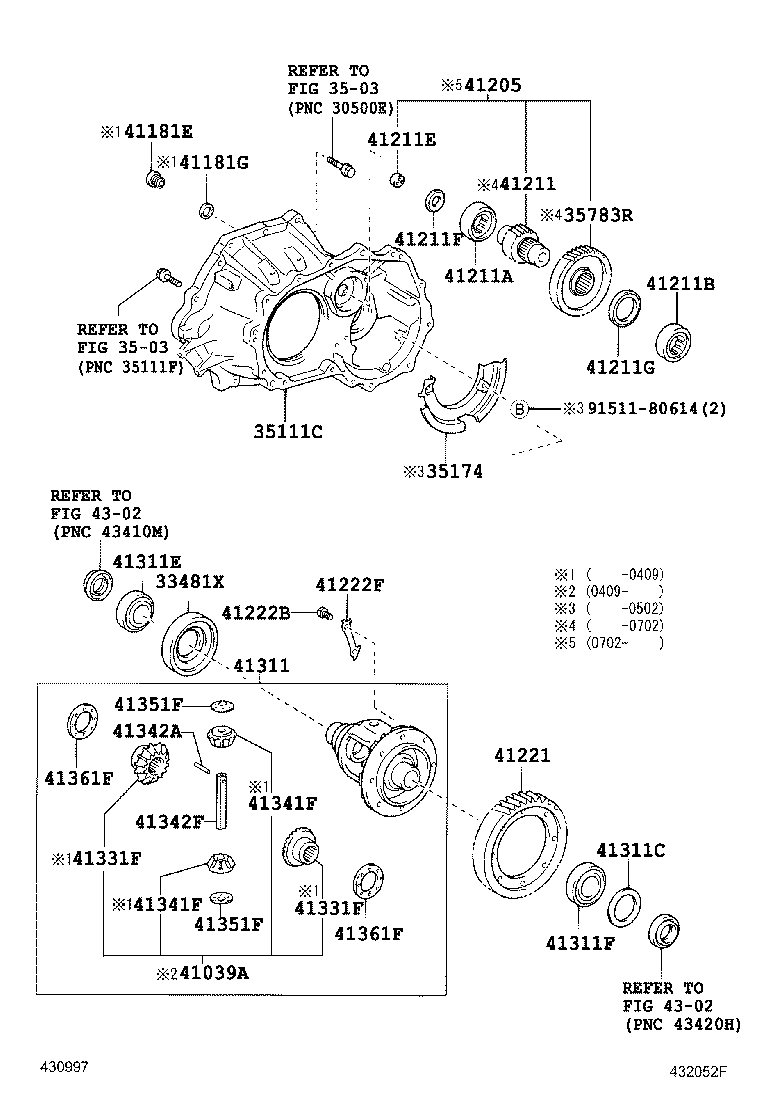

Click highlighted areas on diagram

U340E

diagram 33481X 3503 3503 35111C 35174 35783R 41039A 41181E 41181G 41205 41211 41211A 41211B 41211E 41211F 41211G 41221 41222B 41222F 41311 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302 4302 9151180614
Part # Description Qty Price
33481X - GEAR, SPEEDOMETER DRIVE
33481-32010

NCP61..4FC

 1
35111C - HOUSING, TRANSAXLE
35105-52070

NCP61..4FC

 1
35105-52071

NCP61..4FC

 1
35174 - SEPARATOR, TRANSAXLE HOUSING OIL
35174-52030

NCP61..4FC

 1
35783R - GEAR, COUNTER DRIVEN
35783-52020

NCP61..4FC

 1
41039A - GEAR KIT, DIFFERENTIAL
41039-12010

NCP61..4FC

 1
41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN)
90341-18021

NCP61..4FC

 1
41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
90430-18008

NCP61..4FC

 1
41211 - PINION, DIFFERENTIAL DRIVE
41211-52040

NCP61..4FC

 1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90365-35004

NCP61..4FC

 1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90365-35003

NCP61..4FC

 1
41211E - PLUG(FOR DIFFERENTIAL DRIVE PINION)
90331-17017

NCP61..4FC

 1
41211F - BEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH
90374-18005

NCP61..4FC

 1
41211G - BEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH
90374-45001

NCP61..4FC

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-52090

NCP61..4FC

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003

NCP61..4FC

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-32010

NCP61..4FC

 4
41311 - CASE, FRONT DIFFERENTIAL
41301-52070

NCP61..4FC

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-49002

NCP61..4FC

T=1.95,MARK 02

 1
90564-49003

NCP61..4FC

T=2.00,MARK 03

 1
90564-49009

NCP61..4FC

T=2.30,MARK 09

 1
90564-49004

NCP61..4FC

T=2.05,MARK 04

 1
90564-49006

NCP61..4FC

T=2.15,MARK 06

 1
90564-49001

NCP61..4FC

T=1.90,MARK 01

 1
90564-49008

NCP61..4FC

T=2.25,MARK 08

 1
90564-49007

NCP61..4FC

T=2.20,MARK 07

 1
90564-49018

NCP61..4FC

T=2.75,MARK 18

 1
90564-49017

NCP61..4FC

T=2.70,MARK 17

 1
90564-49015

NCP61..4FC

T=2.60,MARK 15

 1
90564-49013

NCP61..4FC

T=2.50,MARK 13

 1
90564-49011

NCP61..4FC

T=2.40,MARK 11

 1
90564-49012

NCP61..4FC

T=2.45,MARK 12

 1
90564-49005

NCP61..4FC

T=2.10,MARK 05

 1
90564-49010

NCP61..4FC

T=2.35,MARK 10

 1
90564-49016

NCP61..4FC

T=2.65,MARK 16

 1
90564-49019

NCP61..4FC

T=2.80,MARK 19

 1
90564-49014

NCP61..4FC

T=2.55,MARK 14

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40016

NCP61..4FC

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-44001

NCP61..4FC

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

NCP61..4FC

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

NCP61..4FC

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

NCP61..4FC

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

NCP61..4FC

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

NCP61

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-20060

NCP61..4FC

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

NCP61

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

NCP61

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-17020

NCP61..4FC

T=1.00

 2
41361-17010

NCP61..4FC

T=0.95

 2
41361-17030

NCP61..4FC

T=1.05

 2
41361-17040

NCP61..4FC

T=1.10

 2
41361-17050

NCP61..4FC

T=1.15

 2
41361-17060

NCP61..4FC

T=1.20

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-17020

NCP61..4FC

T=1.00

 2
41361-17010

NCP61..4FC

T=0.95

 2
41361-17030

NCP61..4FC

T=1.05

 2
41361-17040

NCP61..4FC

T=1.10

 2
41361-17050

NCP61..4FC

T=1.15

 2
41361-17060

NCP61..4FC

T=1.20

 2
Common parts
91511-80614
Linked diagrams
3503
4302
