NCP61L-HHMNKV (2005)
Toyota Toyota Xa
Production
Jul 2005
-
Dec 2006
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

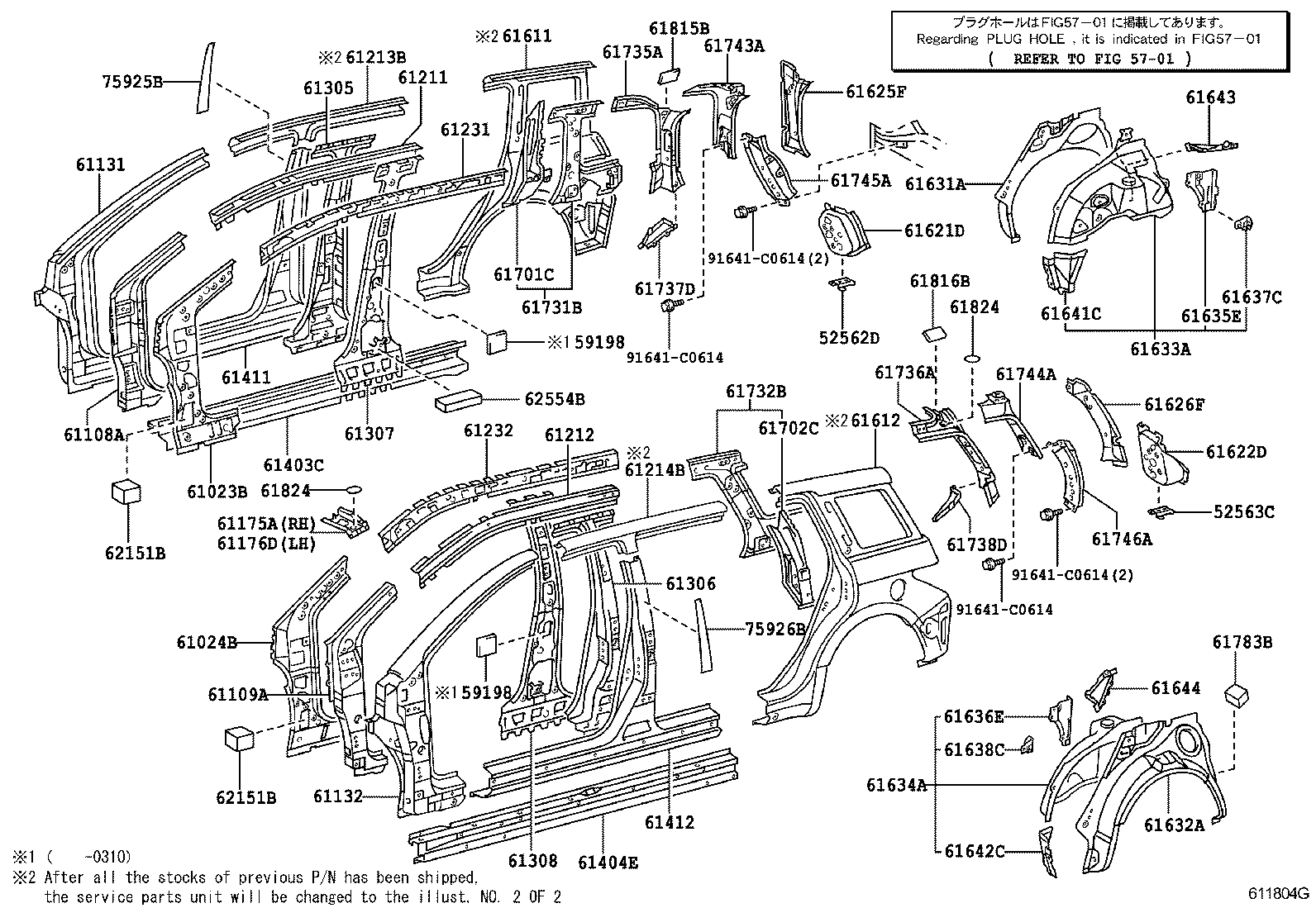

ILLUST NO. 1 OF 2(0308-0701)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562D - RETAINER, REAR BUMPER, UPPER SIDE, RH | ||||
| 52562-52010 |
NCP61 |
1 | ||
| 52562-52010 |
NCP61 |
1 | ||
| 52563C - RETAINER, REAR BUMPER, UPPER SIDE, LH | ||||
| 52562-52010 |
NCP61 |
1 | ||
| 52562-52010 |
NCP61 |
1 | ||
| 59198 - SEAL, NOISE SHUTTER | ||||
| 59198-12010 |
NCP61 |
2 | ||
| 59198 - SEAL, NOISE SHUTTER | ||||
| 59198-12010 |
NCP61 |
2 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52070 |
NCP61 |
1 | ||
| 61023-52070 |
NCP61 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52070 |
NCP61 |
1 | ||
| 61024-52070 |
NCP61 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52060 |
NCP61 |
1 | ||
| 61108-52060 |
NCP61 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52060 |
NCP61 |
1 | ||
| 61109-52060 |
NCP61 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-52110 |
NCP61 |
1 | ||
| 61131-52110 |
NCP61 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-52090 |
NCP61 |
1 | ||
| 61132-52090 |
NCP61 |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-52020 |
NCP61 |
1 | ||
| 61175-52020 |
NCP61 |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-52020 |
NCP61 |
1 | ||
| 61176-52020 |
NCP61 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-52050 |
NCP61 |
1 | ||
| 61211-52050 |
NCP61 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-52050 |
NCP61 |
1 | ||
| 61212-52050 |
NCP61 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52050 |
NCP61 |
1 | ||
| 61213-52050 |
NCP61 |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52060 |
NCP61 |
1 | ||
| 61214-52060 |
NCP61 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-52220 |
NCP61 |
1 | ||
| 61231-52220 |
NCP61 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-52150 |
NCP61 |
1 | ||
| 61232-52150 |
NCP61 |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-52900 |
NCP61 |
1 | ||
| 61305-52900 |
NCP61 |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-52900 |
NCP61 |
1 | ||
| 61306-52900 |
NCP61 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-52903 |
NCP61 |
1 | ||
| 61307-52903 |
NCP61 |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-52903 |
NCP61 |
1 | ||
| 61308-52903 |
NCP61 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52070 |
NCP61 |
1 | ||
| 61403-52070 |
NCP61 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52070 |
NCP61 |
1 | ||
| 61404-52070 |
NCP61 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-52130 |
NCP61 |
1 | ||
| 61411-52130 |
NCP61 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-52140 |
NCP61 |
1 | ||
| 61412-52140 |
NCP61 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52140 |
NCP61 |
1 | ||
| 61601-52140 |
NCP61 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52160 |
NCP61 |
1 | ||
| 61602-52160 |
NCP61 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-52080 |
NCP61 |
1 | ||
| 61621-52080 |
NCP61 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-52080 |
NCP61 |
1 | ||
| 61622-52080 |
NCP61 |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-52050 |
NCP61 |
1 | ||
| 61625-52050 |
NCP61 |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-52050 |
NCP61 |
1 | ||
| 61626-52050 |
NCP61 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52070 |
NCP61 |
1 | ||
| 61631-52070 |
NCP61 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52070 |
NCP61 |
1 | ||
| 61632-52070 |
NCP61 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52200 |
NCP61 |
1 | ||
| 61607-52200 |
NCP61 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52200 |
NCP61 |
1 | ||
| 61608-52200 |
NCP61 |
1 | ||
| 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH | ||||
| 61635-52030 |
NCP61 |
1 | ||
| 61635-52030 |
NCP61 |
1 | ||
| 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH | ||||
| 61636-52030 |
NCP61 |
1 | ||
| 61636-52030 |
NCP61 |
1 | ||
| 61637C - BRACE, QUARTER WHEEL HOUSE, NO.2 RH | ||||
| 61637-52040 |
NCP61 |
1 | ||
| 61637-52040 |
NCP61 |
1 | ||
| 61638C - BRACE, QUARTER WHEEL HOUSE, NO.2 LH | ||||
| 61638-52040 |
NCP61 |
1 | ||
| 61638-52040 |
NCP61 |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52050 |
NCP61 |
1 | ||
| 61641-52050 |
NCP61 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52050 |
NCP61 |
1 | ||
| 61642-52050 |
NCP61 |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61643-52030 |
NCP61 |
1 | ||
| 61643-52030 |
NCP61 |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61644-52030 |
NCP61 |
1 | ||
| 61644-52030 |
NCP61 |
1 | ||
| 61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61701-52040 |
NCP61 |
1 | ||
| 61701-52040 |
NCP61 |
1 | ||
| 61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH | ||||
| 61702-52030 |
NCP61 |
1 | ||
| 61702-52030 |
NCP61 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52903 |
NCP61 |
1 | ||
| 61731-52903 |
NCP61 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52901 |
NCP61 |
1 | ||
| 61732-52901 |
NCP61 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-52050 |
NCP61 |
1 | ||
| 61735-52050 |
NCP61 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-52050 |
NCP61 |
1 | ||
| 61736-52050 |
NCP61 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-52040 |
NCP61 |
1 | ||
| 61737-52040 |
NCP61 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-52030 |
NCP61 |
1 | ||
| 61738-52030 |
NCP61 |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-52040 |
NCP61 |
1 | ||
| 61743-52040 |
NCP61 |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-52040 |
NCP61 |
1 | ||
| 61744-52040 |
NCP61 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52040 |
NCP61 |
1 | ||
| 61745-52040 |
NCP61 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52040 |
NCP61 |
1 | ||
| 61746-52040 |
NCP61 |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52040 |
NCP61 |
2 | ||
| 61783-52040 |
NCP61 |
2 | ||
| 61815B - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61825-52010 |
NCP61 |
1 | ||
| 61825-52010 |
NCP61 |
1 | ||
| 61816B - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61825-52010 |
NCP61 |
1 | ||
| 61825-52010 |
NCP61 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NCP61 |
4 | ||
| 61824-52010 |
NCP61 |
4 | ||
| 61824-52010 |
NCP61 WITH(MOON ROOF) |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NCP61 |
4 | ||
| 61824-52010 |
NCP61 |
4 | ||
| 61824-52010 |
NCP61 WITH(MOON ROOF) |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52010 |
NCP61 |
2 | ||
| 62151-52010 |
NCP61 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52010 |
NCP61 |
2 | ||
| 62151-52010 |
NCP61 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-52010 |
NCP61 |
2 | ||
| 62554-52010 |
NCP61 |
2 | ||
| 75925B - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-52040 |
NCP61 |
1 | ||
| 75925-52040 |
NCP61 |
1 | ||
| 75926B - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-52040 |
NCP61 |
1 | ||
| 75926-52040 |
NCP61 |
1 | ||
| Common parts | ||||
| 91641-C0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||

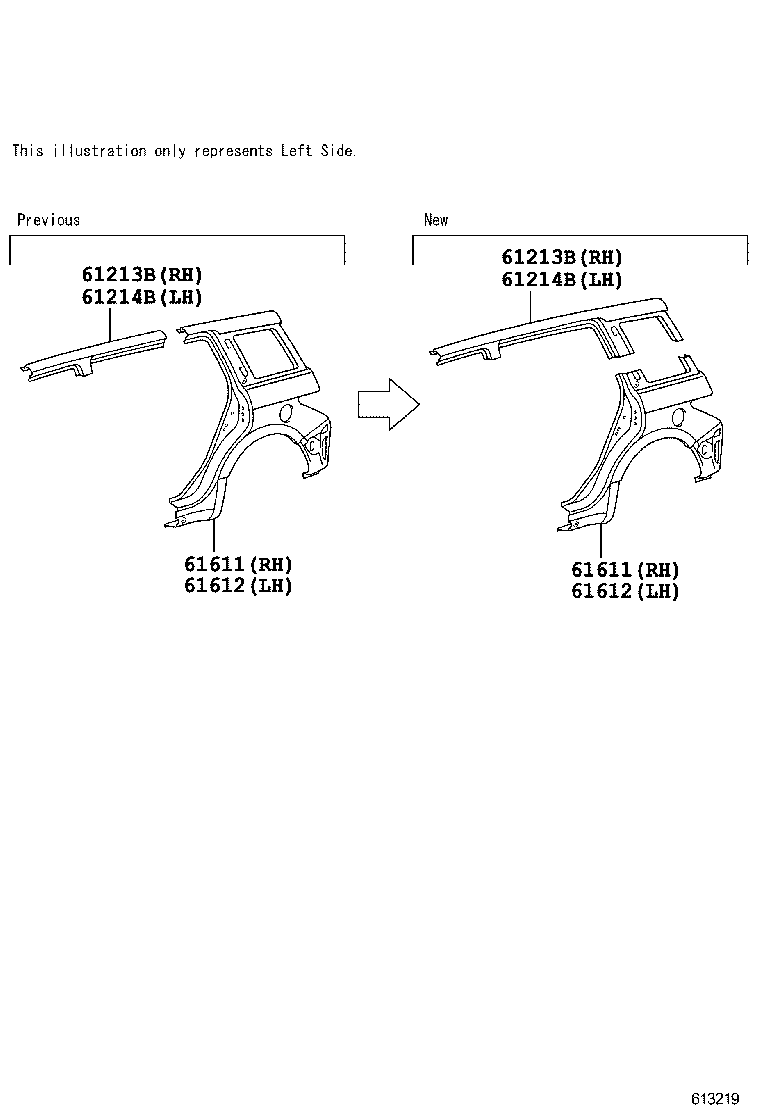

ILLUST NO. 2 OF 2(0308-0701)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52050 |
NCP61 |
1 | ||
| 61213-52050 |
NCP61 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52050 |
NCP61 |
1 | ||
| 61213-52050 |
NCP61 |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52060 |
NCP61 |
1 | ||
| 61214-52060 |
NCP61 |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52060 |
NCP61 |
1 | ||
| 61214-52060 |
NCP61 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52140 |
NCP61 |
1 | ||
| 61601-52140 |
NCP61 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52140 |
NCP61 |
1 | ||
| 61601-52140 |
NCP61 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52160 |
NCP61 |
1 | ||
| 61602-52160 |
NCP61 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52160 |
NCP61 |
1 | ||
| 61602-52160 |
NCP61 |
1 | ||
