NCP61L-HHMNKV (2003)

Toyota Toyota Xa

Production Aug 2003 - Jul 2005
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

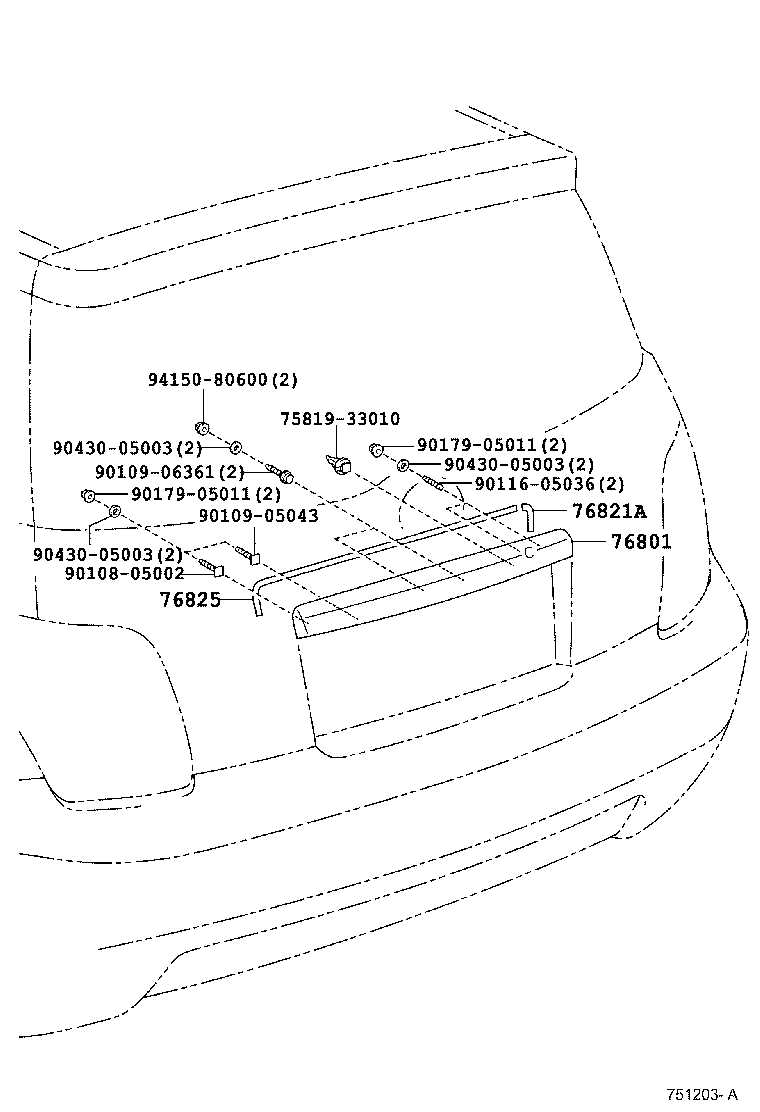

Click highlighted areas on diagram

diagram 7581933010 76801 76821A 76825 9010805002 9010905043 9010906361 9011605036 9017905011 9017905011 9043005003 9043005003 9043005003 9415080600
Part # Description Qty Price
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76811-52080B2

NCP61

SILVER M.M.,1E7

 1
76811-52080A1

NCP61

WHITE PM.,057

 1
76811-52080D1

NCP61

BORDEAUX MC.,3P2

 1
76811-52080J0

NCP61

DK.BLUE M.M.,8P4

 1
76811-52080F0

NCP61

YELLOW PM.,595

 1
76811-52080C0

NCP61

BLACK MC.,209

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-52040

NCP61

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-52020

NCP61

 1
Common parts
75819-33010
90108-05002
90109-05043
90109-06361
90116-05036
90179-05011
90430-05003
94150-80600
