NCP61L-HHMNKV (2003)

Toyota Toyota Xa

Production Aug 2003 - Jul 2005
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

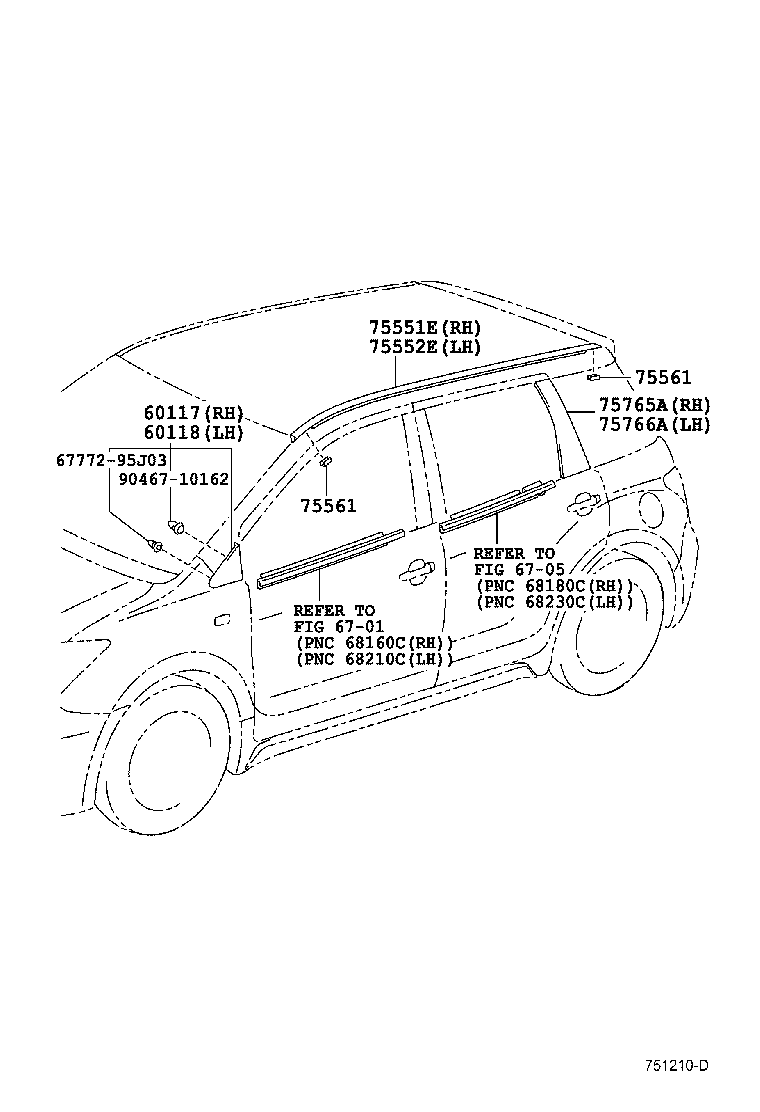

Click highlighted areas on diagram

diagram 60117 60118 6701 6705 6777295J03 75551E 75552E 75561 75561 75765A 75766A 9046710162
Part # Description Qty Price
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-52020

NCP61

 1
60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH
60118-52020

NCP61

 1
75551E - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-52090

NCP61

 1
75552E - MOULDING, ROOF DRIP SIDE FINISH, LH
75551-52090

NCP61

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-33030

NCP61

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-33030

NCP61

 4
75765A - MOULDING, REAR DOOR WINDOW FRAME, REAR RH
75765-52011

NCP61

 1
75766A - MOULDING, REAR DOOR WINDOW FRAME, REAR LH
75766-52011

NCP61

 1
Common parts
67772-95J03
90467-10162
Linked diagrams
6701
6705
