NCP61L-HHMNKV (2003)

Toyota Toyota Xa

Production Aug 2003 - Jul 2005
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

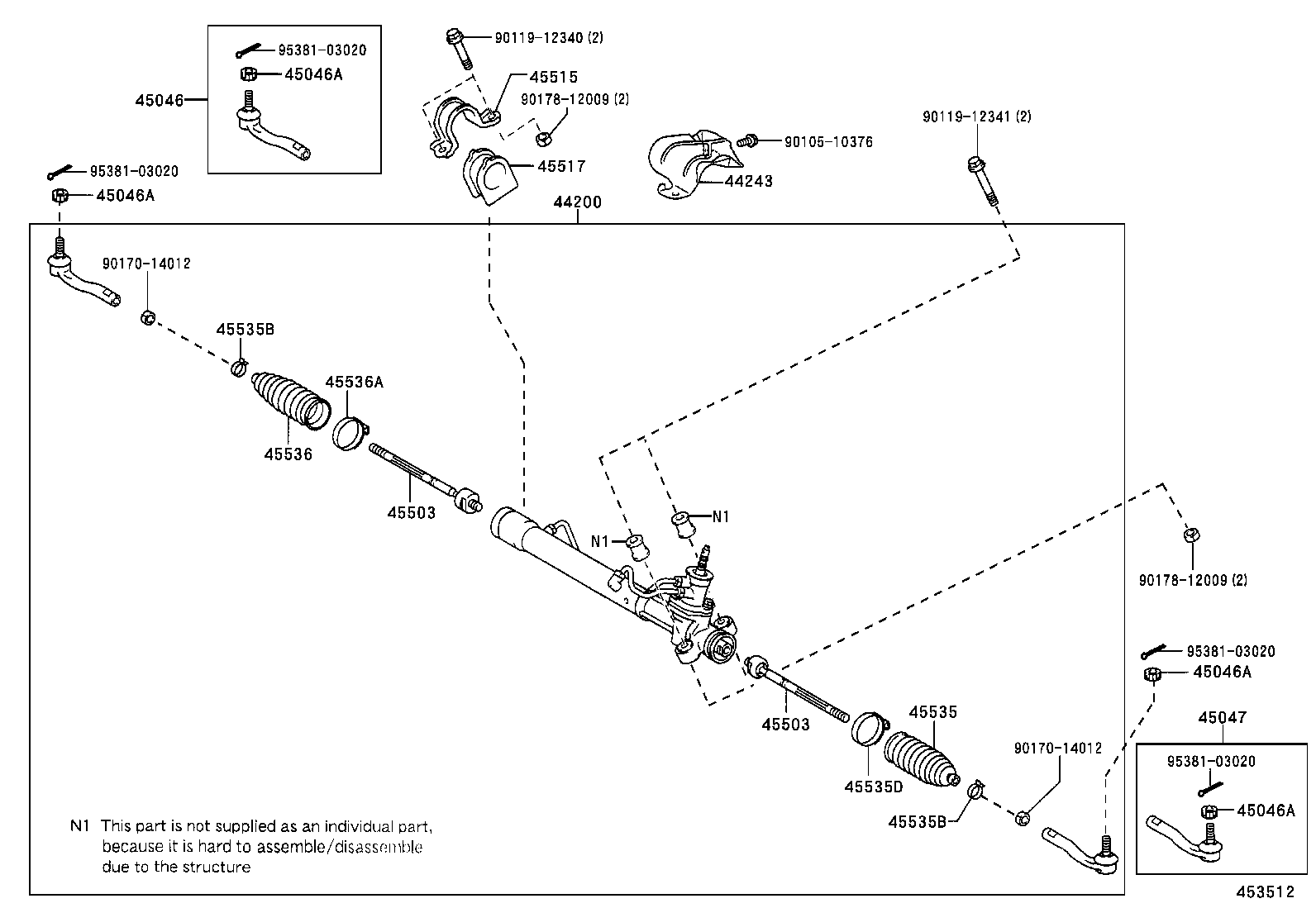

ILLUST NO. 1 OF 2(0308- )

Click highlighted areas on diagram

diagram 44200 44243 45046 45046A 45046A 45046A 45046A 45047 45503 45503 45515 45517 45535 45535B 45535B 45535D 45536 45536A 9010510376 9011912340 9011912341 9017014012 9017014012 9017812009 9017812009 9538103020 9538103020 9538103020 9538103020
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-52340

NCP61

 1
44243 - INSULATOR, POWER STEERING RACK HOUSING HEAT
44243-52010

NCP61

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-19175

NCP61

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP61

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP61

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP61

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NCP61

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-19175

NCP61

 1
45503 - END SUB-ASSY, STEERING RACK
45503-52030

NCP61

 2
45503 - END SUB-ASSY, STEERING RACK
45503-52030

NCP61

 2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-52010

NCP61

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-52010

NCP61

 1
45535 - BOOT, STEERING RACK, NO.1
45535-52060

NCP61

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

NCP61

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

NCP61

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-58008

NCP61

 1
45536 - BOOT, STEERING RACK, NO.2
45535-52060

NCP61

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-58008

NCP61

 1
Common parts
90105-10376
90119-12340
90119-12341
90170-14012
90178-12009
95381-03020

ILLUST NO. 2 OF 2(0308- )

Click highlighted areas on diagram

diagram 04445A
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-52010

NCP61

 1
