KP37R-KRN (1977)

Toyota Toyota1000

Production Jul 1977 - Aug 1981
Engine 3KH
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904-8208)

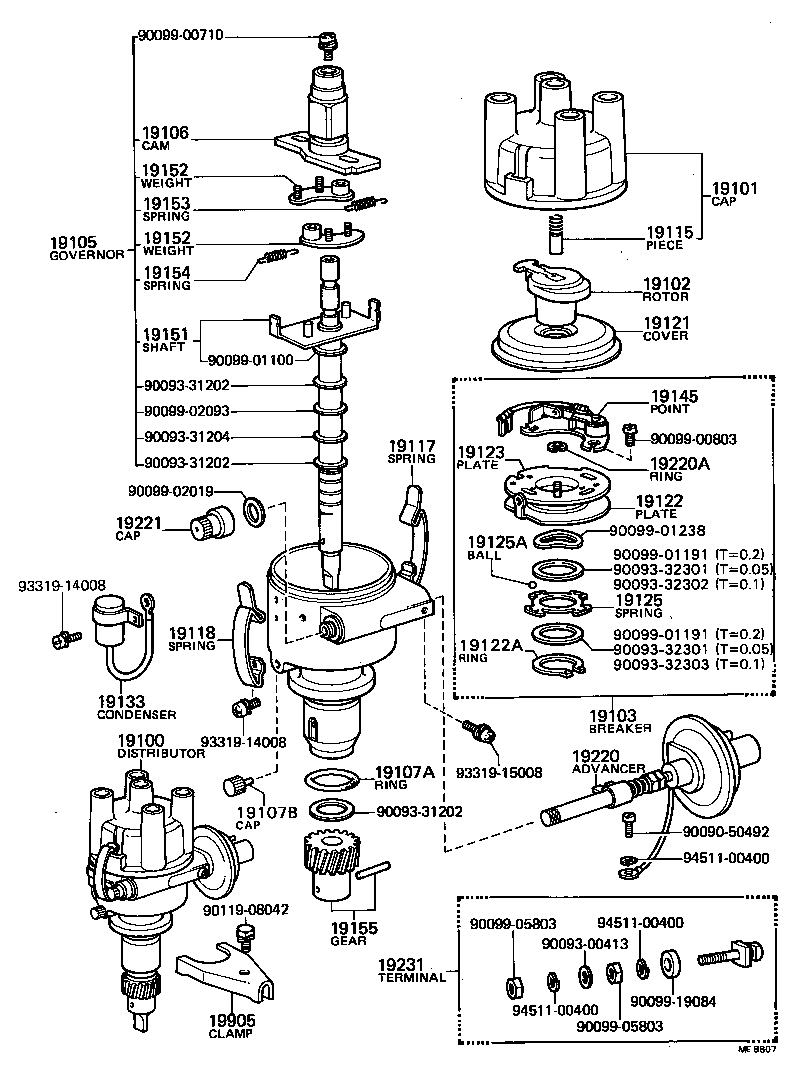

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19105 19106 19107A 19107B 19115 19117 19118 19121 19122 19122A 19123 19125 19125A 19133 19145 19151 19152 19152 19153 19154 19155 19220 19220A 19221 19231 19905 9009050492 9009300413 9009331202 9009331202 9009331202 9009331204 9009332301 9009332301 9009332302 9009332303 9009900710 9009900803 9009901100 9009901191 9009901191 9009901238 9009902019 9009902093 9009905803 9009905803 9009919084 9011908042 9331914008 9331914008 9331915008 9451100400 9451100400 9451100400
Part # Description Qty Price
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-22010

2K,3KH..KP3#

 1
19102-22012

3KH..KP37

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-22011

2K,3KH..KP3#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

2K,3KH..KP3#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

2K,3KH..KP3#

 1
19117 - SPRING, DISTRIBUTOR CAP, A
19117-30030

2K,3KH..KP3#

 1
19118 - SPRING, DISTRIBUTOR CAP, B
19118-30030

2K,3KH..KP3#

 1
19121 - COVER, DUST PROOF
19121-10010

2K,3KH..KP3#

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-29021

2K,3KH..KP3#

 1
19122A - RING, SNAP(FOR DISTRIBUTOR STATIONARY PLATE)
90099-07081

2K,3KH..KP3#

 1
19123 - PLATE, DISTRIBUTOR BREAKER
19123-41011

2K,3KH..KP3#

 1
19125 - SPRING(FOR DISTRIBUTOR STATIONARY PLATE)
19125-30010

2K,3KH..KP3#

 1
19125A - BALL, DISTRIBUTOR STATIONARY PLATE
90099-12003

2K,3KH..KP3#

 4
19152 - WEIGHT, GOVERNOR
19152-32010

2K,3KH..KP3#

 2
19152 - WEIGHT, GOVERNOR
19152-32010

2K,3KH..KP3#

 2
19154 - SPRING, GOVERNOR, B
19154-22010

2K,3KH..KP3#

 1
19221 - CAP, ADJUSTER, DISTRIBUTOR
19221-30030

2K,3KH..KP3#

 1
19231 - TERMINAL, DISTRIBUTOR
19231-22010

2K,3KH..KP3#

 1
Common parts
90090-50492
90093-00413
90093-31202
90093-31204
90093-32301
90093-32302
90093-32303
90099-00710
90099-00803
90099-01100
90099-01191
90099-01238
90099-02019
90099-02093
90099-05803
90099-19084
90119-08042
93319-14008
93319-15008
94511-00400
