KP36V- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

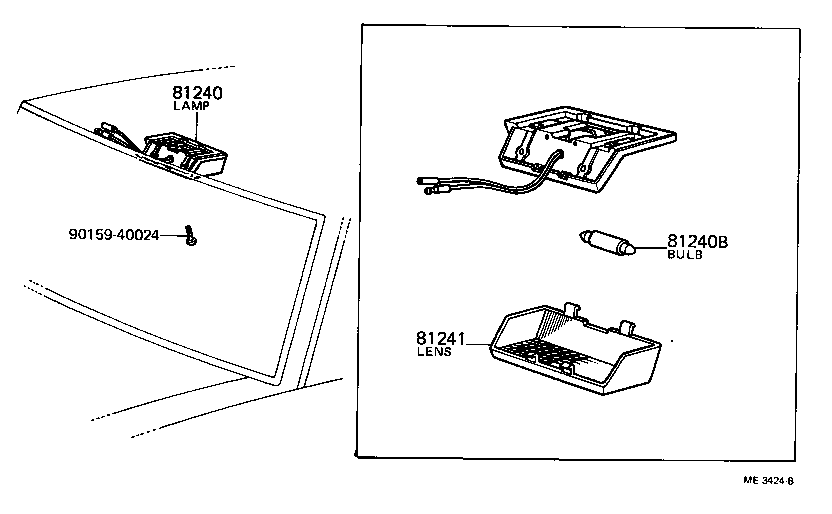

Click highlighted areas on diagram

diagram 81240 81240B 81241 9015940024
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-1002203

KP3#

GRAY

 1
81240-1002203

KP3#

GRAY

 1
81240-10021

KP3#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-13050

KP3#

12V 5W,12V 5W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-10020

KP3#

 1
Common parts
90159-40024
