KP36V- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904- )

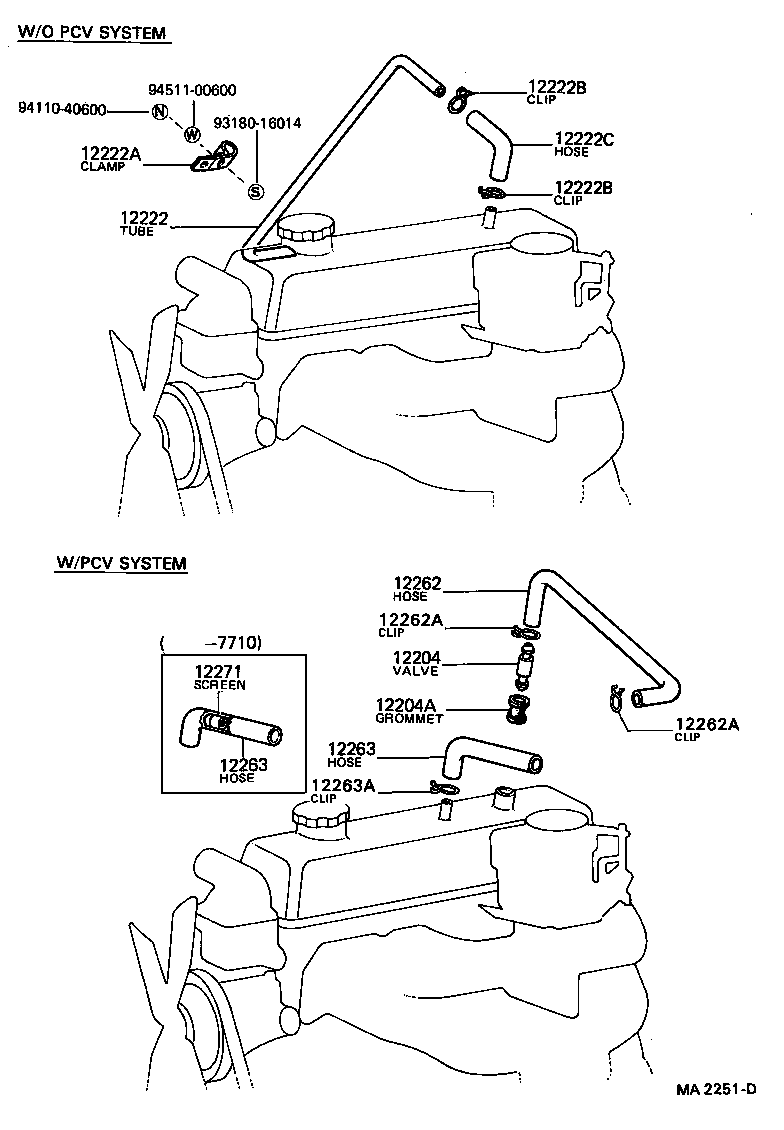

Click highlighted areas on diagram

diagram 12204 12204A 12222 12222A 12222B 12222B 12222C 12262 12262A 12262A 12263 12263 12263A 12271 9318016014 9411040600 9451100600
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-22011

2K..KP3#

 1
12204-24010

2K..KP3#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-16157

2K,3KH..KP3#

 1
12222 - TUBE, VENTILATION, NO.2
12222-22010

2K..KP3#

W/O PCV

 1
12222A - CLAMP(FOR VENTILATION TUBE)
90461-16269

2K..KP3#

W/O PCV

 1
12222B - CLIP(FOR VENTILATION TUBE)
90467-24038

2K..KP3#

W/O PCV

 2
12222B - CLIP(FOR VENTILATION TUBE)
90467-24038

2K..KP3#

W/O PCV

 2
12222C - HOSE(FOR VENTILATION TUBE)
90910-05006

2K..KP3#

W/O PCV

 1
12262 - HOSE, VENTILATION, NO.2
12261-24020

2K..KP3#

 1
12261-22010

2K..KP3#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13022

2K..KP3#

 2
90467-13015

2K..KP3#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13022

2K..KP3#

 2
90467-13015

2K..KP3#

 2
12263 - HOSE, VENTILATION, NO.3
90910-05009

2K..KP3#

 1
90910-05040

2K,3KH..KP3#

 1
12263 - HOSE, VENTILATION, NO.3
90910-05009

2K..KP3#

 1
90910-05040

2K,3KH..KP3#

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-18028

2K..KP3#

 1
12271 - SCREEN, OIL SEPARATOR
12271-24010

2K,3KH..KP3#

 1
Common parts
93180-16014
94110-40600
94511-00600
