KP36LV- (1969)

Toyota Toyota1000

Production Apr 1969 - Sep 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7507-7512) ; (7512-7809)SED,V

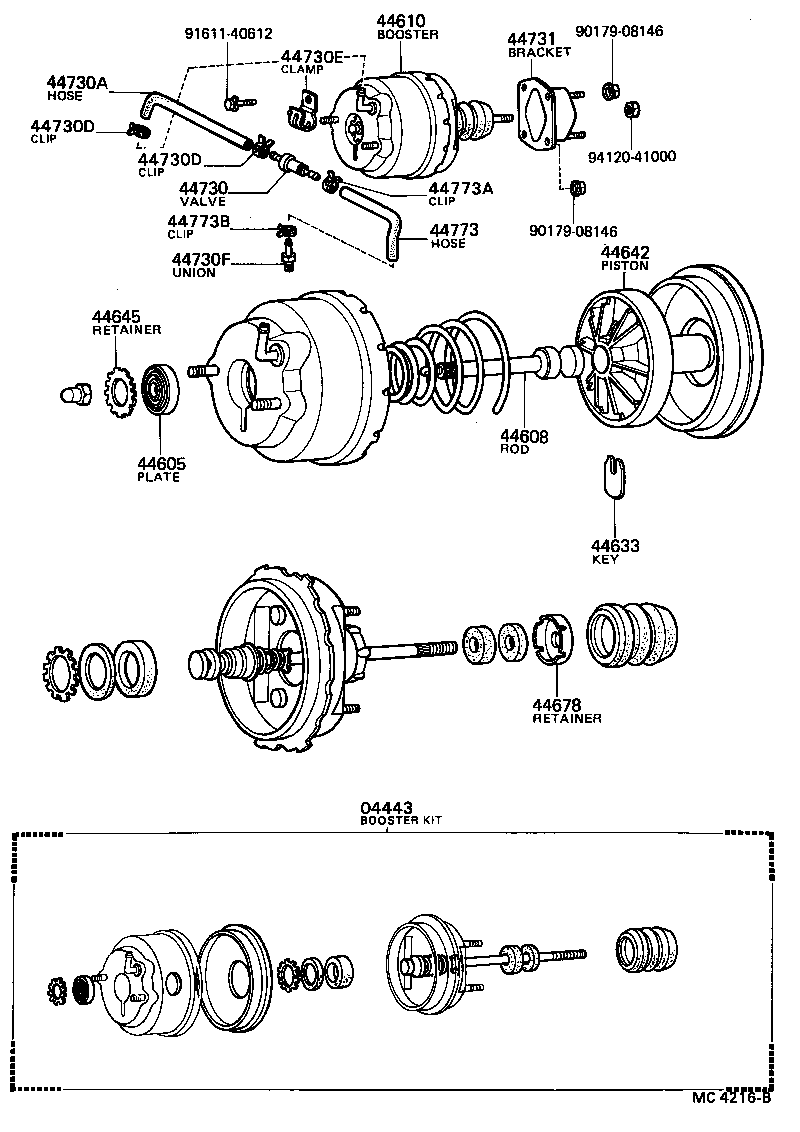

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44642 44645 44678 44730 44730A 44730D 44730D 44730E 44730F 44731 44773 44773A 44773B 9017908146 9017908146 9161140612 9412041000
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-10021

KP30,36..SED,V

W/TANDEM M/C

 1
04443-10020

KP3#..(SED,V)..LHD

W/TANDEM M/C

 1
04443-10020

KP3#..SED,V

W/TANDEM M/C

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

KP3#..(SED,V)..LHD

 1
44605-22021

KP30,36..SED,V

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-10020

KP3#..(SED,V)..LHD

 1
44608-22081

KP30,36..SED,V

 1
44608-10020

KP3#..SED,V

 1
44610 - BOOSTER ASSY, BRAKE
44610-10020

KP3#..(SED,V)..LHD

W/TANDEM M/C

 1
44610-10021

KP30,36..SED,V

W/TANDEM M/C

 1
44610-10020

KP3#..SED,V

W/TANDEM M/C

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-22020

KP3#..(SED,V)..LHD

 1
44633-22020

KP30,36..SED,V

 1
44642 - PISTON, BRAKE BOOSTER
44642-10010

KP3#..(SED,V)..LHD

 1
44642-10030

KP30,36..SED,V

 1
44642-10010

KP3#..SED,V

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

KP30,36..SED,V

 1
44645-22020

KP3#..(SED,V)..LHD

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

KP30,36..SED,V

 1
44678-22020

KP3#..(SED,V)..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

KP3#..(SED,V)..LHD

 1
44730-20010

KP30,36..SED,V

 1
44730A - HOSE, VACUUM, NO.1
44772-10030

KP3#..(SED,V)..LHD

 1
44773-10030

KP30,36..SED,V

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KP3#..(SED,V)..LHD

 2
90467-16141

KP30,36..SED,V

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KP3#..(SED,V)..LHD

 2
90467-16141

KP30,36..SED,V

 1
44730E - CLAMP, VACUUM CHECK VALVE
44758-12030

KP3#..(SED,V)..LHD

 1
44758-12030

KP30,36..SED,V

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KP30,36..SED,V

 1
90404-51237

KP3#..(SED,V)..LHD

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-10020

KP30,36..SED,V

 1
44731-10020

KP3#..(SED,V)..LHD

 1
44773 - HOSE, VACUUM, NO.2
44773-10030

KP3#..(SED,V)..LHD

 1
44773-10030

KP30,36..SED,V

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

KP3#..(SED,V)..LHD

 1
90467-16141

KP30,36..SED,V

 1
44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2)
90467-16141

KP3#..(SED,V)..LHD

 1
90467-16141

KP30,36..SED,V

 1
Common parts
90179-08146
91611-40612
94120-41000
