KP36L- (1969)

Toyota Toyota1000

Production Nov 1969 - Aug 1988
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7010-7303)

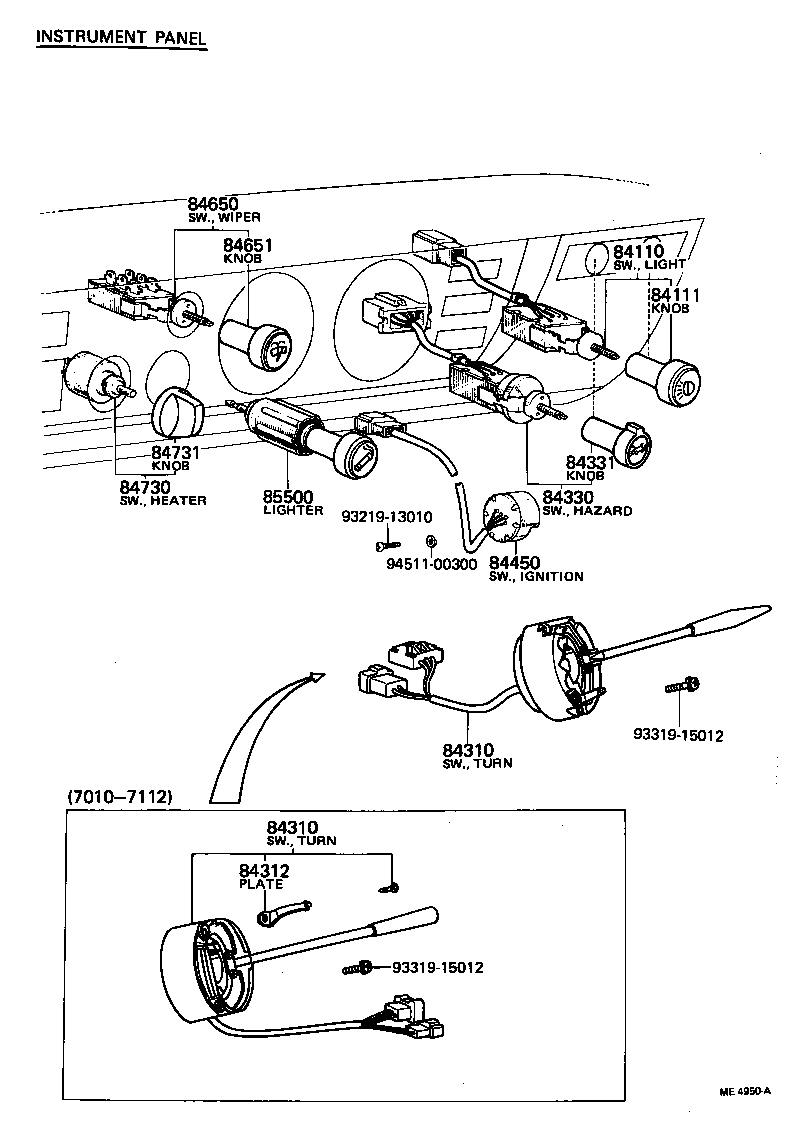

Click highlighted areas on diagram

diagram 84110 84111 84310 84310 84312 84330 84331 84450 84650 84651 84730 84731 85500 9321913010 9331915012 9331915012 9451100300
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84110-10032

KP3#

 1
84110-10033

KP3#

 1
84112-10020

KP3#

 1
84110-10040

KP3#

 1
84112-10021

KP3#

 1
84111 - KNOB, LIGHT CONTROL SWITCH
84111-10031

KP3#

 1
84111-10030

KP3#

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-11062

KP36..PIC..LHD

 1
84310-11061

KP36..PIC..LHD

 1
84310-10183

KP30,36..LHD

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-11062

KP36..PIC..LHD

 1
84310-11061

KP36..PIC..LHD

 1
84310-10183

KP30,36..LHD

 1
84312 - PLATE, HORN CONTACT
84312-10021

KP3#

 1
84312-10020

KP3#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-10021

KP3#

 1
84330-10020

KP3#

RR TURN SIGNAL LAMP=RED

 1
84332-10030

KP3#

 1
84330-10010

KP3#

 1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-10012

KP3#

 1
84331-10010

KP3#

GNAL LAMP

 1
84331-10021

KP3#

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-10050

KP3#

 1
84450-27020

KP30,36..LHD

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84650-10051

KP3#

 1
84652-10010

KP3#

 1
84650-10050

KP3#

 1
84652-12010

KP3#

 1
84652-10030

KP3#..LHD

WASHER=MANUAL PUMP

 1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-10031

KP3#

 1
84651-10041

KP3#

WASHER=MANUAL PUMP

 1
84651-10040

KP3#

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-10020

KP30,36

 1
84730-10030

KP3#

 1
84730-10031

KP3#

 1
84731 - KNOB, HEATER BLOWER SWITCH
84731-10010

KP3#

 1
84731-10011

KP30,36

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-10031

KP30,36

 1
85500-10032

KP3#

 1
85500-10030

KP3#

 1
Common parts
93219-13010
93319-15012
94511-00300

(7303- )

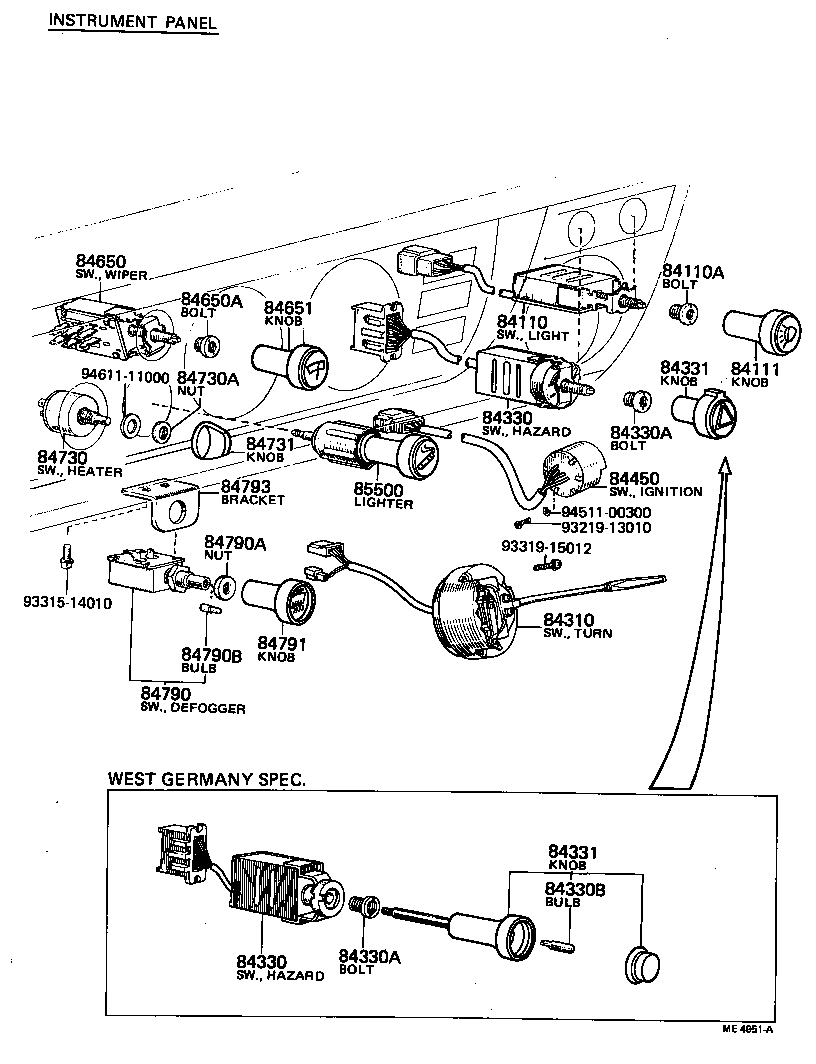

Click highlighted areas on diagram

diagram 84110 84110A 84111 84310 84330 84330 84330A 84330A 84330B 84331 84331 84450 84650 84650A 84651 84730 84730A 84731 84790 84790A 84790B 84791 84793 85500 9321913010 9331514010 9331915012 9451100300 9461111000
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84110-10032

KP3#

 1
84110-10033

KP3#

 1
84112-10020

KP3#

 1
84110-10040

KP3#

 1
84112-10021

KP3#

 1
84110A - BOLT OR NUT, LIGHT CONTROL SWITCH SET
90984-01010

KP3#

 1
84111 - KNOB, LIGHT CONTROL SWITCH
84111-10031

KP3#

 1
84111-10030

KP3#

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-11062

KP36..PIC..LHD

 1
84310-11061

KP36..PIC..LHD

 1
84310-10183

KP30,36..LHD

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-10021

KP3#

 1
84330-10020

KP3#

RR TURN SIGNAL LAMP=RED

 1
84332-10030

KP3#

 1
84330-10010

KP3#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-10021

KP3#

 1
84330-10020

KP3#

RR TURN SIGNAL LAMP=RED

 1
84332-10030

KP3#

 1
84330-10010

KP3#

 1
84330A - BOLT OR NUT, HAZARD WARNING SIGNAL SWITCH SET
90984-01010

KP3#

 1
90984-01006

KP30,36..LHD

 1
84330A - BOLT OR NUT, HAZARD WARNING SIGNAL SWITCH SET
90984-01010

KP3#

 1
90984-01006

KP30,36..LHD

 1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-10012

KP3#

 1
84331-10010

KP3#

GNAL LAMP

 1
84331-10021

KP3#

 1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-10012

KP3#

 1
84331-10010

KP3#

GNAL LAMP

 1
84331-10021

KP3#

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-10050

KP3#

 1
84450-27020

KP30,36..LHD

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84650-10051

KP3#

 1
84652-10010

KP3#

 1
84650-10050

KP3#

 1
84652-12010

KP3#

 1
84652-10030

KP3#..LHD

WASHER=MANUAL PUMP

 1
84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET
90984-01007

KP3#

 1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-10031

KP3#

 1
84651-10041

KP3#

WASHER=MANUAL PUMP

 1
84651-10040

KP3#

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-10020

KP30,36

 1
84730-10030

KP3#

 1
84730-10031

KP3#

 1
84730A - NUT, HEATER BLOWER SWITCH
90179-10155

KP30,36

 1
84731 - KNOB, HEATER BLOWER SWITCH
84731-10010

KP3#

 1
84731-10011

KP30,36

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-10031

KP30,36

 1
85500-10032

KP3#

 1
85500-10030

KP3#

 1
Common parts
93219-13010
93315-14010
93319-15012
94511-00300
94611-11000

(6904-7010)

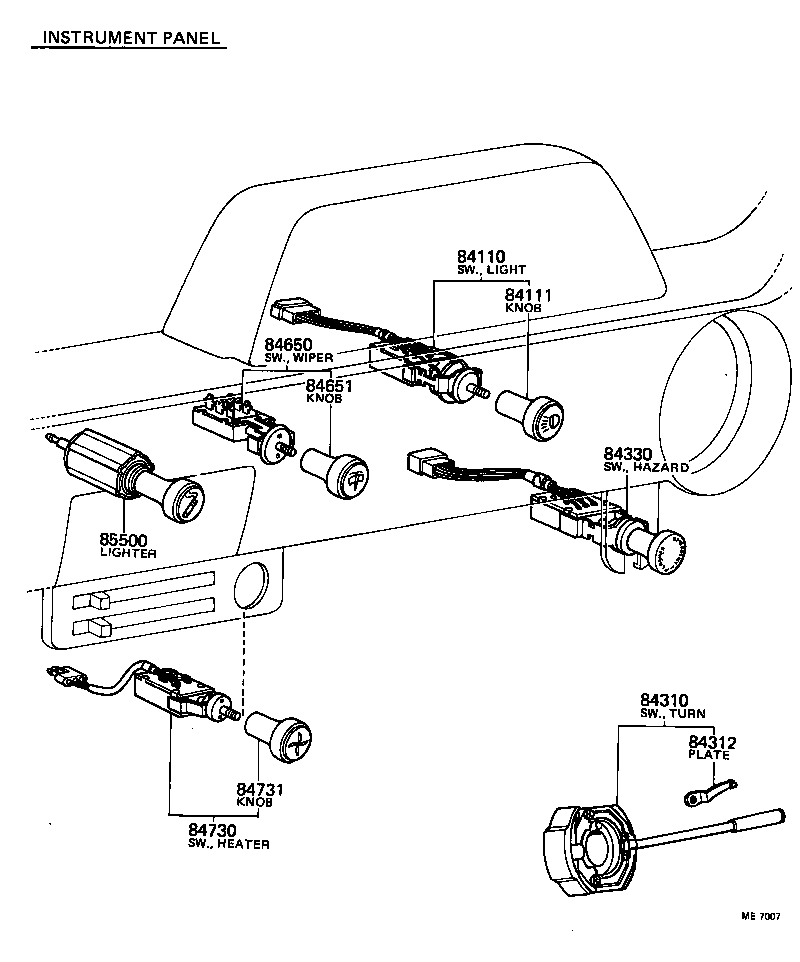

Click highlighted areas on diagram

diagram 84110 84111 84310 84312 84330 84650 84651 84730 84731 85500
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84110-10032

KP3#

 1
84110-10033

KP3#

 1
84112-10020

KP3#

 1
84110-10040

KP3#

 1
84112-10021

KP3#

 1
84111 - KNOB, LIGHT CONTROL SWITCH
84111-10030

KP3#

 1
84111-10031

KP3#

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-11062

KP36..PIC..LHD

 1
84310-11061

KP36..PIC..LHD

 1
84310-10183

KP30,36..LHD

 1
84312 - PLATE, HORN CONTACT
84312-10021

KP3#

 1
84312-10020

KP3#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-10021

KP3#

 1
84330-10020

KP3#

RR TURN SIGNAL LAMP=RED

 1
84332-10030

KP3#

 1
84330-10010

KP3#

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84650-10051

KP3#

 1
84652-10010

KP3#

 1
84650-10050

KP3#

 1
84652-12010

KP3#

 1
84652-10030

KP3#..LHD

WASHER=MANUAL PUMP

 1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-10031

KP3#

 1
84651-10041

KP3#

WASHER=MANUAL PUMP

 1
84651-10040

KP3#

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-10020

KP30,36

 1
84730-10030

KP3#

 1
84730-10031

KP3#

 1
84731 - KNOB, HEATER BLOWER SWITCH
84731-10010

KP3#

 1
84731-10011

KP30,36

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-10031

KP30,36

 1
85500-10032

KP3#

 1
85500-10030

KP3#

 1
