KP36L- (1969)
Toyota Toyota1000

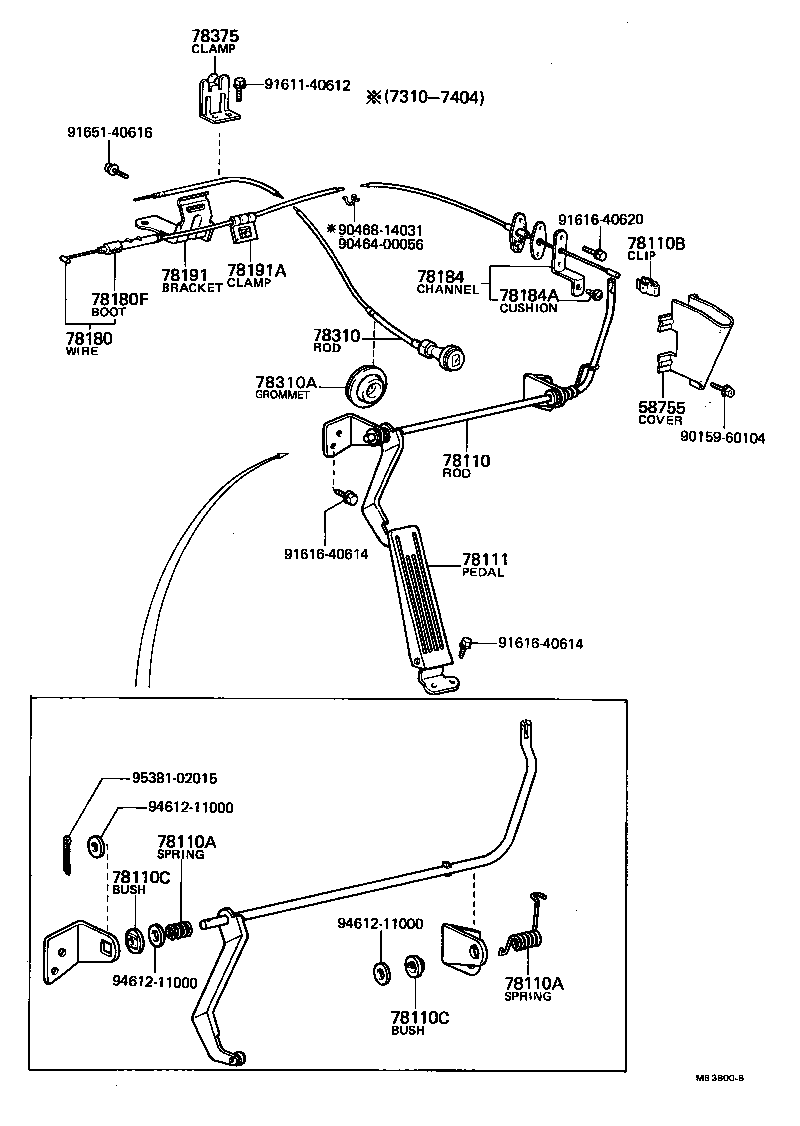

(7310-7508)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58755 - COVER, ACCELERATOR PEDAL SHAFT | ||||
| 78177-10011 |
KP30,36..LHD |
1 | ||
| 78177-10010 |
KP3#..LHD |
1 | ||
| 78177-10010 |
KP3#..LHD W/SINGLE M/C |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78102-10051 |
KP30,36..LHD |
1 | ||
| 78102-10050 |
KP3#..LHD W/SINGLE M/C |
1 | ||
| 78102-10050 |
KP3#..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90501-10475 |
KP30,36..LHD LH |
1 | ||
| 90508-23301 |
KP30,36..LHD RH |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90501-10475 |
KP30,36..LHD LH |
1 | ||
| 90508-23301 |
KP30,36..LHD RH |
1 | ||
| 78110B - CLIP, ACCELERATOR BELLCRANK | ||||
| 78169-10010 |
KP3#..LHD |
1 | ||
| 78169-10010 |
KP3#..LHD W/SINGLE M/C |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-10109 |
KP30,36..LHD RH |
1 | ||
| 78195-10020 |
KP30,36..LHD LH |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-10109 |
KP30,36..LHD RH |
1 | ||
| 78195-10020 |
KP30,36..LHD LH |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78101-10050 |
KP30,36..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-10041 |
KP3#..LHD W/SINGLE M/C |
1 | ||
| 78180-10090 |
KP3#..LHD |
1 | ||
| 78180-10040 |
KP3#..LHD |
1 | ||
| 78180-10041 |
KP3#..LHD |
1 | ||
| 78180-10043 |
KP3#..LHD |
1 | ||
| 78180-10044 |
KP30,36..LHD |
1 | ||
| 78180F - BOOT (FOR ACCELERATOR WIRE) | ||||
| 78199-10030 |
KP3# |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78184-10902 |
KP3#..LHD |
1 | ||
| 78184-10902 |
KP3#..LHD W/SINGLE M/C |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
KP3# |
1 | ||
| 90541-06008 |
KP3#..LHD W/SINGLE M/C |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78124-12030 |
KP3# |
1 | ||
| 78124-12010 |
KP3# |
1 | ||
| 78184-12040 |
KP3# |
1 | ||
| 78124-10020 |
KP3# |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 78125-10020 |
KP3# |
1 | ||
| 78125-12010 |
KP3# |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-10081 |
KP3#..LHD |
1 | ||
| 78310-10084 |
KP3#..LHD |
1 | ||
| 78310-10082 |
KP3#..LHD |
1 | ||
| 78310-10085 |
KP30,36..LHD |
1 | ||
| 78310-10080 |
KP3#..LHD |
1 | ||
| 78310-10083 |
KP3#..LHD |
1 | ||
| 78310A - GROMMET, CHOKE CABLE | ||||
| 90480-33200 |
KP3# |
1 | ||
| 78375 - CLAMP, CHOKE ROD FLEXIBLE TUBE | ||||
| 78371-10010 |
KP3#..LHD |
1 | ||
| Common parts | ||||
| 90159-60104 | ||||
| 90464-00056 | ||||
| 90468-14031 | ||||
| 91611-40612 | ||||
| 91616-40614 | ||||
| 91616-40620 | ||||
| 91651-40616 | ||||
| 94612-11000 | ||||
| 95381-02015 | ||||

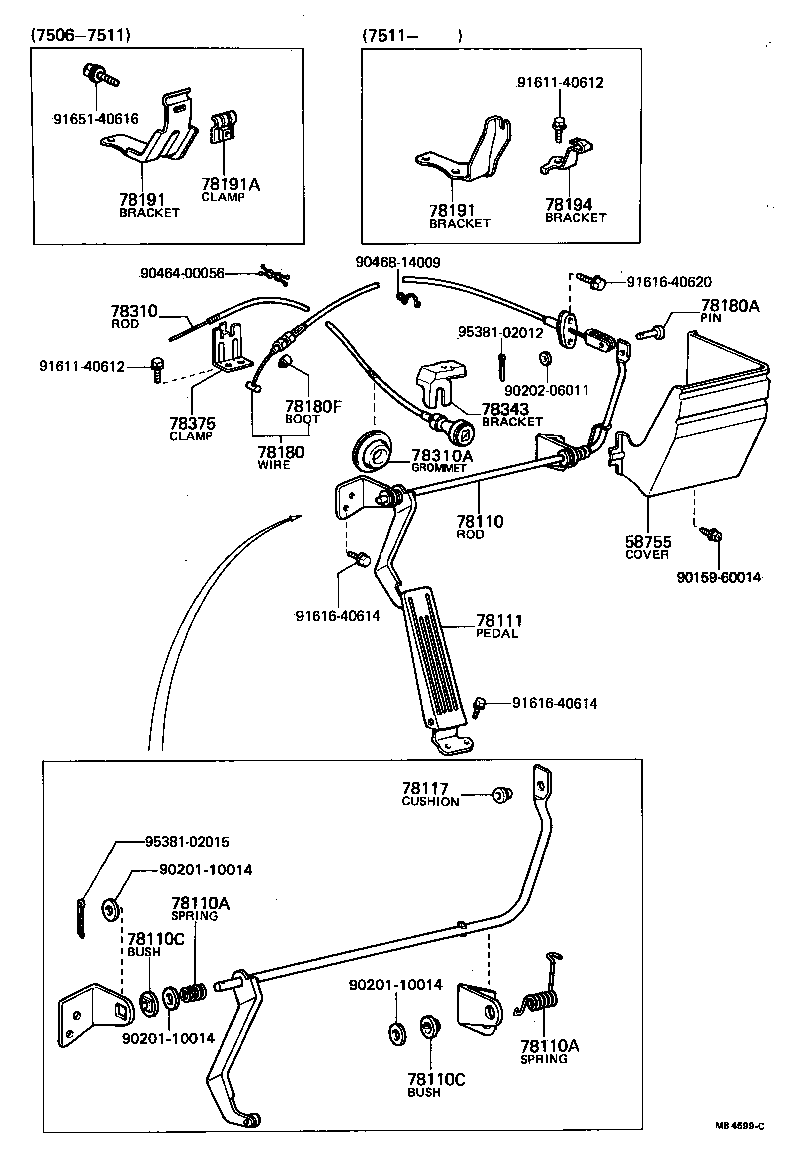

(7506- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58755 - COVER, ACCELERATOR PEDAL SHAFT | ||||
| 78177-10011 |
KP30,36..LHD |
1 | ||
| 78177-10010 |
KP3#..LHD |
1 | ||
| 78177-10010 |
KP3#..LHD W/SINGLE M/C |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78102-10051 |
KP30,36..LHD |
1 | ||
| 78102-10050 |
KP3#..LHD W/SINGLE M/C |
1 | ||
| 78102-10050 |
KP3#..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90501-10475 |
KP30,36..LHD LH |
1 | ||
| 90508-23301 |
KP30,36..LHD RH |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90501-10475 |
KP30,36..LHD LH |
1 | ||
| 90508-23301 |
KP30,36..LHD RH |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-10109 |
KP30,36..LHD RH |
1 | ||
| 78195-10020 |
KP30,36..LHD LH |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-10109 |
KP30,36..LHD RH |
1 | ||
| 78195-10020 |
KP30,36..LHD LH |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78101-10050 |
KP30,36..LHD |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90540-05038 |
KP3# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-10041 |
KP3#..LHD W/SINGLE M/C |
1 | ||
| 78180-10090 |
KP3#..LHD |
1 | ||
| 78180-10040 |
KP3#..LHD |
1 | ||
| 78180-10041 |
KP3#..LHD |
1 | ||
| 78180-10043 |
KP3#..LHD |
1 | ||
| 78180-10044 |
KP30,36..LHD |
1 | ||
| 78180A - PIN, ACCELERATOR WIRE SET | ||||
| 90240-05072 |
KP3# |
1 | ||
| 78180F - BOOT (FOR ACCELERATOR WIRE) | ||||
| 78199-10030 |
KP3# |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78124-12030 |
KP3# |
1 | ||
| 78124-12010 |
KP3# |
1 | ||
| 78184-12040 |
KP3# |
1 | ||
| 78124-10020 |
KP3# |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78124-12030 |
KP3# |
1 | ||
| 78124-12010 |
KP3# |
1 | ||
| 78184-12040 |
KP3# |
1 | ||
| 78124-10020 |
KP3# |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 78125-10020 |
KP3# |
1 | ||
| 78125-12010 |
KP3# |
1 | ||
| 78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2 | ||||
| 78186-10010 |
KP3# |
1 | ||
| 78186-10020 |
KP36 |
1 | ||
| 78186-10011 |
KP3# |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-10081 |
KP3#..LHD |
1 | ||
| 78310-10084 |
KP3#..LHD |
1 | ||
| 78310-10082 |
KP3#..LHD |
1 | ||
| 78310-10085 |
KP30,36..LHD |
1 | ||
| 78310-10080 |
KP3#..LHD |
1 | ||
| 78310-10083 |
KP3#..LHD |
1 | ||
| 78310A - GROMMET, CHOKE CABLE | ||||
| 90480-33200 |
KP3# |
1 | ||
| 78375 - CLAMP, CHOKE ROD FLEXIBLE TUBE | ||||
| 78371-10010 |
KP3#..LHD |
1 | ||
| Common parts | ||||
| 90159-60014 | ||||
| 90201-10014 | ||||
| 90202-06011 | ||||
| 90464-00056 | ||||
| 90468-14009 | ||||
| 91611-40612 | ||||
| 91616-40614 | ||||
| 91616-40620 | ||||
| 91651-40616 | ||||
| 95381-02012 | ||||
| 95381-02015 | ||||
