KP36L- (1969)
Toyota Toyota1000

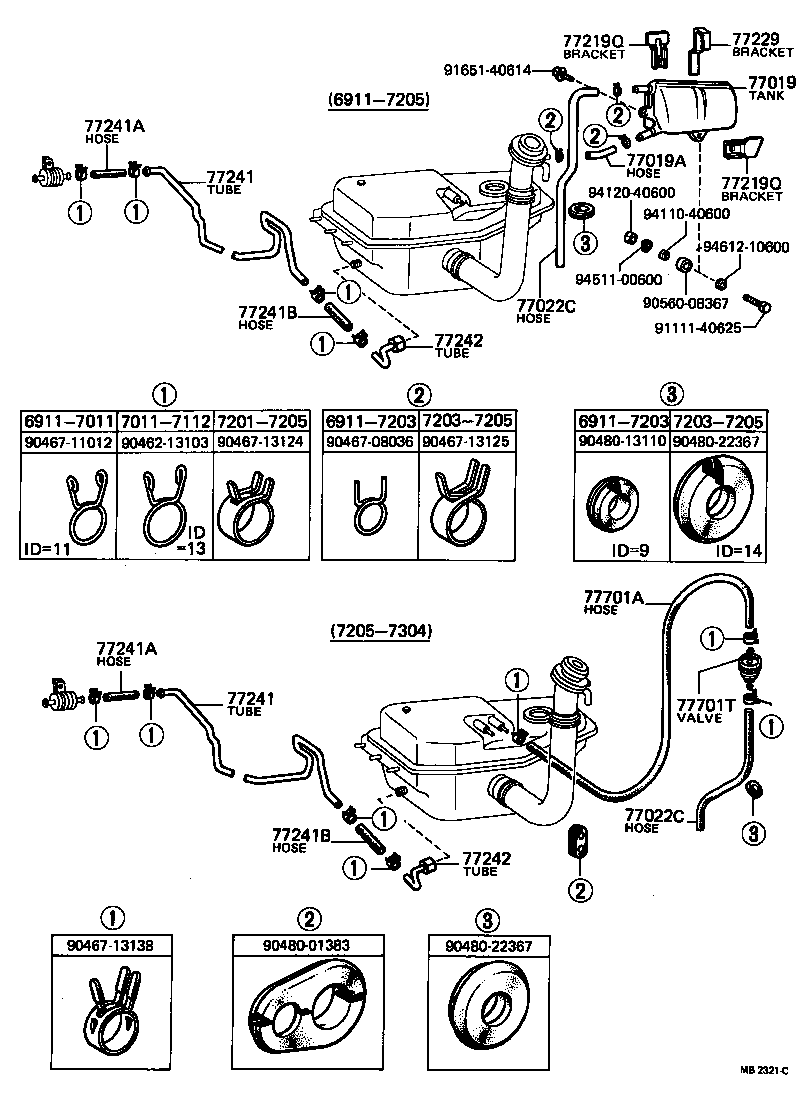

(6911-7304)PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019 - TANK SUB-ASSY, FUEL EXPANSION | ||||
| 77267-96400 |
KP36..PIC |
1 | ||
| 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 95331-08007 |
KP36..PIC *H,L=70,L=70 |
1 | ||
| 90066-20900 |
KP36..PIC L=55 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-08075 |
KP36..PIC L=750 |
1 | ||
| 95331-04030 |
KP36,37..PIC L=300 |
1 | ||
| 95331-06030 |
KP36..PIC L=300 |
1 | ||
| 95331-08030 |
KP36..PIC L=300 |
1 | ||
| 90446-09207 |
KP36 L=850 |
1 | ||
| 90066-20901 |
KP36..PIC L=680 |
1 | ||
| 95332-04030 |
KP36,37..PIC L=300 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-08075 |
KP36..PIC L=750 |
1 | ||
| 95331-04030 |
KP36,37..PIC L=300 |
1 | ||
| 95331-06030 |
KP36..PIC L=300 |
1 | ||
| 95331-08030 |
KP36..PIC L=300 |
1 | ||
| 90446-09207 |
KP36 L=850 |
1 | ||
| 90066-20901 |
KP36..PIC L=680 |
1 | ||
| 95332-04030 |
KP36,37..PIC L=300 |
1 | ||
| 77219Q - BRACKET, EXPANSION TANK | ||||
| 61784-96400 |
KP36..PIC RR |
1 | ||
| 61783-96400 |
KP36..PIC FR |
1 | ||
| 77219Q - BRACKET, EXPANSION TANK | ||||
| 61784-96400 |
KP36..PIC RR |
1 | ||
| 61783-96400 |
KP36..PIC FR |
1 | ||
| 77229 - BRACKET, FUEL TANK VENT CHAMBER | ||||
| 61785-96400 |
KP36..PIC |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77241-11070 |
KP36..PIC |
1 | ||
| 77241-96401 |
KP36..PIC |
1 | ||
| 77241-96400 |
KP36..PIC |
1 | ||
| 77241-96403 |
KP36..PIC |
1 | ||
| 77251-96403 |
KP36 |
1 | ||
| 77251-96401 |
KP36,37..PIC |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77241-11070 |
KP36..PIC |
1 | ||
| 77241-96401 |
KP36..PIC |
1 | ||
| 77241-96400 |
KP36..PIC |
1 | ||
| 77241-96403 |
KP36..PIC |
1 | ||
| 77251-96403 |
KP36 |
1 | ||
| 77251-96401 |
KP36,37..PIC |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 90445-12695 |
KP3# L=80 |
1 | ||
| 95331-06008 |
KP3# *H,L=80,L=80 |
1 | ||
| 95332-06009 |
KP3# *H,L=90,L=90 |
1 | ||
| 90445-12414 |
KP3# L=80 |
1 | ||
| 95331-06009 |
KP3# *H,L=90,L=90 |
1 | ||
| 95332-06010 |
KP3# *H,L=100,*H,L=90 |
1 | ||
| 95331-08008 |
KP3# *H,L=80,L=80 |
1 | ||
| 95333-06009 |
KP36 *H,L=90,*H,L=90 |
1 | ||
| 95331-06007 |
KP3# *H,L=70,L=70 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 90445-12695 |
KP3# L=80 |
1 | ||
| 95331-06008 |
KP3# *H,L=80,L=80 |
1 | ||
| 95332-06009 |
KP3# *H,L=90,L=90 |
1 | ||
| 90445-12414 |
KP3# L=80 |
1 | ||
| 95331-06009 |
KP3# *H,L=90,L=90 |
1 | ||
| 95332-06010 |
KP3# *H,L=100,*H,L=90 |
1 | ||
| 95331-08008 |
KP3# *H,L=80,L=80 |
1 | ||
| 95333-06009 |
KP36 *H,L=90,*H,L=90 |
1 | ||
| 95331-06007 |
KP3# *H,L=70,L=70 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 90445-12181 |
KP36 L=90 |
1 | ||
| 95331-08009 |
KP36 *H,L=90,L=90 |
1 | ||
| 90445-12678 |
KP36 L=90 |
1 | ||
| 90445-12467 |
KP36 L=90 |
1 | ||
| 95332-06014 |
KP36,37..PIC *H,L=140,L=140 |
1 | ||
| 95331-06014 |
KP36,37..PIC *H,L=140,L=140 |
1 | ||
| 95332-06020 |
KP3# *H,L=200,*H,L=140 |
1 | ||
| 95333-06014 |
KP36 *H,L=140,*H,L=140 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 90445-12181 |
KP36 L=90 |
1 | ||
| 95331-08009 |
KP36 *H,L=90,L=90 |
1 | ||
| 90445-12678 |
KP36 L=90 |
1 | ||
| 90445-12467 |
KP36 L=90 |
1 | ||
| 95332-06014 |
KP36,37..PIC *H,L=140,L=140 |
1 | ||
| 95331-06014 |
KP36,37..PIC *H,L=140,L=140 |
1 | ||
| 95332-06020 |
KP3# *H,L=200,*H,L=140 |
1 | ||
| 95333-06014 |
KP36 *H,L=140,*H,L=140 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77209-11030 |
KP36..PIC |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77209-11030 |
KP36..PIC |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 95331-08095 |
KP36..PIC *H,L=950,L=950 |
1 | ||
| 95332-06090 |
KP36,37..PIC *H,L=900,L=900 |
1 | ||
| 95333-06090 |
KP36 *H,L=900,*H,L=900 |
1 | ||
| 95331-08090 |
KP36..PIC *H,L=900,L=900 |
1 | ||
| 95332-06100 |
KP3# *H,L=1000,*H,L=900 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10012 |
KP36 |
1 | ||
| 90917-10004 |
KP36 |
1 | ||
| 90917-10020 |
KP36 |
1 | ||
| 90917-10029 |
KP3# |
1 | ||
| 90917-10029 |
KP36 |
1 | ||
| Common parts | ||||
| 90462-13103 | ||||
| 90467-08036 | ||||
| 90467-11012 | ||||
| 90467-13124 | ||||
| 90467-13125 | ||||
| 90467-13138 | ||||
| 90480-01383 | ||||
| 90480-13110 | ||||
| 90480-22367 | ||||
| 90560-08367 | ||||
| 91111-40625 | ||||
| 91651-40614 | ||||
| 94110-40600 | ||||
| 94120-40600 | ||||
| 94511-00600 | ||||
| 94612-10600 | ||||

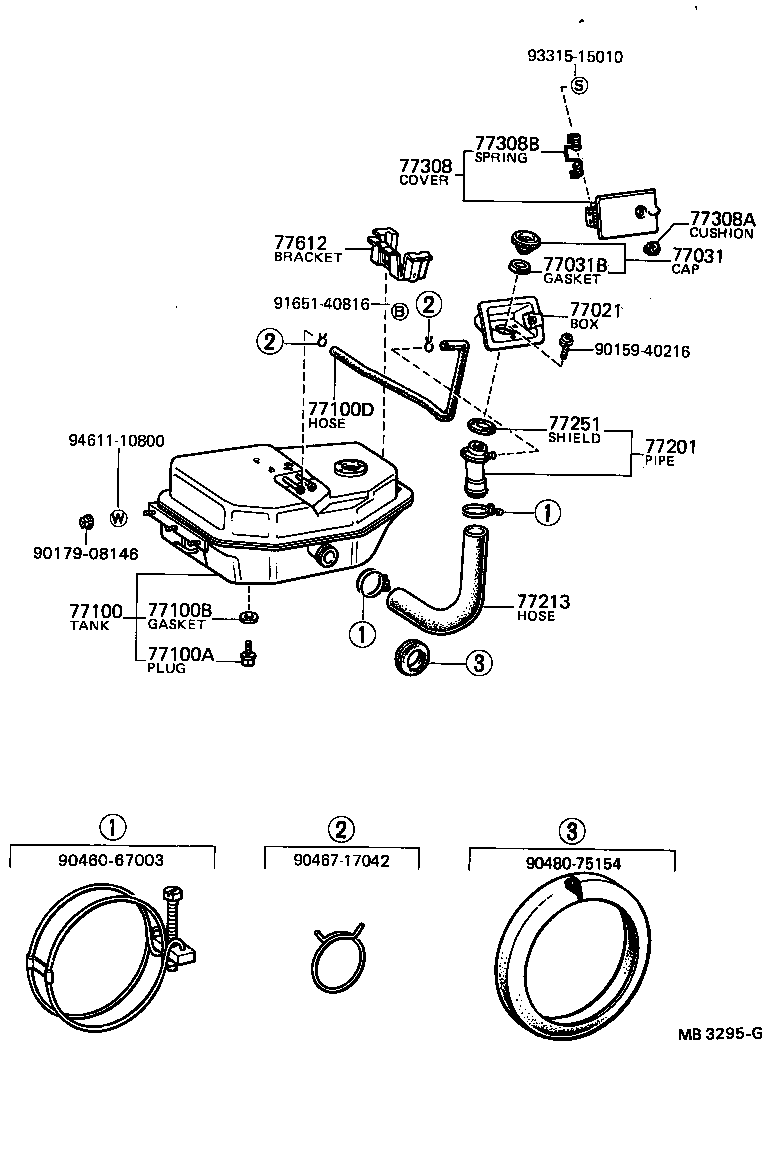

(6911-7205)PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 61709-11020 |
KP36,37..PIC |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-10030 |
KP36 |
1 | ||
| 77310-12010 |
KP3# |
1 | ||
| 77310-12041 |
KP36,37 |
1 | ||
| 77310-10030 |
KP3# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12040 |
KP3# |
1 | ||
| 77316-10010 |
KP3# |
1 | ||
| 77316-12040 |
KP36 |
1 | ||
| 77316-12010 |
KP3# |
1 | ||
| 77316-12040 |
KP3# |
1 | ||
| 77316-10010 |
KP36 |
1 | ||
| 77316-12040 |
KP36 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-11070 |
KP36..PIC |
1 | ||
| 77100-96401 |
KP36,37..PIC |
1 | ||
| 77100-96400 |
KP36..PIC |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
KP3# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12038 |
KP3# |
1 | ||
| 90430-12245 |
KP3# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-18903 |
KP36..PIC L=900 |
1 | ||
| 90445-18970 |
KP36,37 L=650 |
1 | ||
| 90445-18878 |
KP36 L=680 |
1 | ||
| 90446-09132 |
KP36..PIC L=500 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 77249-96400 |
KP36..PIC L=535 |
1 | ||
| 90066-21800 |
KP36..PIC L=535 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-96400 |
KP36,37..PIC |
1 | ||
| 77201-11901 |
KP36 |
1 | ||
| 77201-11071 |
KP36 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-11050 |
KP36..PIC |
1 | ||
| 77213-96400 |
KP36,37..PIC |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
KP3# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77308-11040 |
KP36,37..PIC W/FUEL LOCK |
1 | ||
| 77308-11030 |
KP36..PIC W/O FUEL LOCK |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05040 |
KP3# |
1 | ||
| 90541-05040 |
KP36,37 |
1 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 90508-16163 |
KP36,37 |
1 | ||
| 90508-16163 |
KP3# |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 57609-96400 |
KP36,37..PIC |
1 | ||
| Common parts | ||||
| 90202-04046 | ||||
| 90467-17042 | ||||
| 90480-25208 | ||||
| 90480-75154 | ||||
| 91651-40816 | ||||
| 93249-14012 | ||||
| 93315-15010 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
| 96111-10670 | ||||
(7205- )PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 61709-11020 |
KP36,37..PIC |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-10030 |
KP36 |
1 | ||
| 77310-12010 |
KP3# |
1 | ||
| 77310-12041 |
KP36,37 |
1 | ||
| 77310-10030 |
KP3# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12040 |
KP3# |
1 | ||
| 77316-10010 |
KP3# |
1 | ||
| 77316-12040 |
KP36 |
1 | ||
| 77316-12010 |
KP3# |
1 | ||
| 77316-12040 |
KP3# |
1 | ||
| 77316-10010 |
KP36 |
1 | ||
| 77316-12040 |
KP36 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-11070 |
KP36..PIC |
1 | ||
| 77100-96401 |
KP36,37..PIC |
1 | ||
| 77100-96400 |
KP36..PIC |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
KP3# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12038 |
KP3# |
1 | ||
| 90430-12245 |
KP3# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-18903 |
KP36..PIC L=900 |
1 | ||
| 90445-18970 |
KP36,37 L=650 |
1 | ||
| 90445-18878 |
KP36 L=680 |
1 | ||
| 90446-09132 |
KP36..PIC L=500 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-96400 |
KP36,37..PIC |
1 | ||
| 77201-11901 |
KP36 |
1 | ||
| 77201-11071 |
KP36 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-11050 |
KP36..PIC |
1 | ||
| 77213-96400 |
KP36,37..PIC |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
KP3# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77308-11040 |
KP36,37..PIC W/FUEL LOCK |
1 | ||
| 77308-11030 |
KP36..PIC W/O FUEL LOCK |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05040 |
KP3# |
1 | ||
| 90541-05040 |
KP36,37 |
1 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 90508-16163 |
KP36,37 |
1 | ||
| 90508-16163 |
KP3# |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 57609-96400 |
KP36,37..PIC |
1 | ||
| Common parts | ||||
| 90159-40216 | ||||
| 90179-08146 | ||||
| 90460-67003 | ||||
| 90467-17042 | ||||
| 90480-75154 | ||||
| 91651-40816 | ||||
| 93315-15010 | ||||
| 94611-10800 | ||||
(7304-8201)PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-08075 |
KP36..PIC L=750 |
1 | ||
| 95331-04030 |
KP36,37..PIC L=300 |
1 | ||
| 95331-06030 |
KP36..PIC L=300 |
1 | ||
| 95331-08030 |
KP36..PIC L=300 |
1 | ||
| 90446-09207 |
KP36 L=850 |
1 | ||
| 90066-20901 |
KP36..PIC L=680 |
1 | ||
| 95332-04030 |
KP36,37..PIC L=300 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77241-11070 |
KP36..PIC |
1 | ||
| 77241-96401 |
KP36..PIC |
1 | ||
| 77241-96400 |
KP36..PIC |
1 | ||
| 77241-96403 |
KP36..PIC |
1 | ||
| 77251-96403 |
KP36 |
1 | ||
| 77251-96401 |
KP36,37..PIC |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 90445-12695 |
KP3# L=80 |
1 | ||
| 95331-06008 |
KP3# *H,L=80,L=80 |
1 | ||
| 95332-06009 |
KP3# *H,L=90,L=90 |
1 | ||
| 90445-12414 |
KP3# L=80 |
1 | ||
| 95331-06009 |
KP3# *H,L=90,L=90 |
1 | ||
| 95332-06010 |
KP3# *H,L=100,*H,L=90 |
1 | ||
| 95331-08008 |
KP3# *H,L=80,L=80 |
1 | ||
| 95333-06009 |
KP36 *H,L=90,*H,L=90 |
1 | ||
| 95331-06007 |
KP3# *H,L=70,L=70 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 90445-12181 |
KP36 L=90 |
1 | ||
| 95331-08009 |
KP36 *H,L=90,L=90 |
1 | ||
| 90445-12678 |
KP36 L=90 |
1 | ||
| 90445-12467 |
KP36 L=90 |
1 | ||
| 95332-06014 |
KP36,37..PIC *H,L=140,L=140 |
1 | ||
| 95331-06014 |
KP36,37..PIC *H,L=140,L=140 |
1 | ||
| 95332-06020 |
KP3# *H,L=200,*H,L=140 |
1 | ||
| 95333-06014 |
KP36 *H,L=140,*H,L=140 |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 95331-08095 |
KP36..PIC *H,L=950,L=950 |
1 | ||
| 95332-06090 |
KP36,37..PIC *H,L=900,L=900 |
1 | ||
| 95333-06090 |
KP36 *H,L=900,*H,L=900 |
1 | ||
| 95331-08090 |
KP36..PIC *H,L=900,L=900 |
1 | ||
| 95332-06100 |
KP3# *H,L=1000,*H,L=900 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10012 |
KP36 |
1 | ||
| 90917-10004 |
KP36 |
1 | ||
| 90917-10020 |
KP36 |
1 | ||
| 90917-10029 |
KP3# |
1 | ||
| 90917-10029 |
KP36 |
1 | ||
| Common parts | ||||
| 90467-12140 | ||||
| 90480-01417 | ||||
| 90480-01509 | ||||
| 90480-22413 | ||||
| 91651-40614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-08075 |
KP36..PIC L=750 |
1 | ||
| 95331-04030 |
KP36,37..PIC L=300 |
1 | ||
| 95331-06030 |
KP36..PIC L=300 |
1 | ||
| 95331-08030 |
KP36..PIC L=300 |
1 | ||
| 90446-09207 |
KP36 L=850 |
1 | ||
| 90066-20901 |
KP36..PIC L=680 |
1 | ||
| 95332-04030 |
KP36,37..PIC L=300 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77241-11070 |
KP36..PIC |
1 | ||
| 77241-96401 |
KP36..PIC |
1 | ||
| 77241-96400 |
KP36..PIC |
1 | ||
| 77241-96403 |
KP36..PIC |
1 | ||
| 77251-96403 |
KP36 |
1 | ||
| 77251-96401 |
KP36,37..PIC |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 90445-12695 |
KP3# L=80 |
1 | ||
| 95331-06008 |
KP3# *H,L=80,L=80 |
1 | ||
| 95332-06009 |
KP3# *H,L=90,L=90 |
1 | ||
| 90445-12414 |
KP3# L=80 |
1 | ||
| 95331-06009 |
KP3# *H,L=90,L=90 |
1 | ||
| 95332-06010 |
KP3# *H,L=100,*H,L=90 |
1 | ||
| 95331-08008 |
KP3# *H,L=80,L=80 |
1 | ||
| 95333-06009 |
KP36 *H,L=90,*H,L=90 |
1 | ||
| 95331-06007 |
KP3# *H,L=70,L=70 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 90445-12181 |
KP36 L=90 |
1 | ||
| 95331-08009 |
KP36 *H,L=90,L=90 |
1 | ||
| 90445-12678 |
KP36 L=90 |
1 | ||
| 90445-12467 |
KP36 L=90 |
1 | ||
| 95332-06014 |
KP36,37..PIC *H,L=140,L=140 |
1 | ||
| 95331-06014 |
KP36,37..PIC *H,L=140,L=140 |
1 | ||
| 95332-06020 |
KP3# *H,L=200,*H,L=140 |
1 | ||
| 95333-06014 |
KP36 *H,L=140,*H,L=140 |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 95331-08095 |
KP36..PIC *H,L=950,L=950 |
1 | ||
| 95332-06090 |
KP36,37..PIC *H,L=900,L=900 |
1 | ||
| 95333-06090 |
KP36 *H,L=900,*H,L=900 |
1 | ||
| 95331-08090 |
KP36..PIC *H,L=900,L=900 |
1 | ||
| 95332-06100 |
KP3# *H,L=1000,*H,L=900 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10012 |
KP36 |
1 | ||
| 90917-10004 |
KP36 |
1 | ||
| 90917-10020 |
KP36 |
1 | ||
| 90917-10029 |
KP3# |
1 | ||
| 90917-10029 |
KP36 |
1 | ||
| Common parts | ||||
| 90461-12111 | ||||
| 90461-12127 | ||||
| 90461-12142 | ||||
| 90461-12212 | ||||
| 90461-12257 | ||||
| 90461-12258 | ||||
| 90480-01062 | ||||
| 90480-01080 | ||||
| 90480-01135 | ||||
| 90480-01158 | ||||
| 90480-01417 | ||||
| 90480-07002 | ||||
| 90480-22413 | ||||
| 91651-60614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
