KP36L- (1969)

Toyota Toyota1000

Production Nov 1969 - Aug 1988
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6911- )PIC

Click highlighted areas on diagram

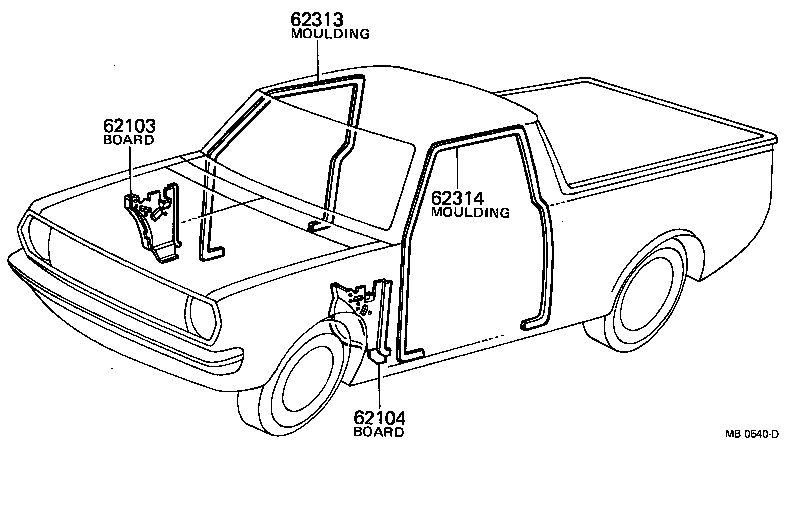

diagram 62103 62104 62313 62314
Part # Description Qty Price
62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH
62113-10040

KP3#

W/UNDER TRAY

 1
62113-1003001

KP3#

BLACK,BLACK,TRIM2#

 1
62113-1003006

KP3#

LIGHT BROWN,BROWN,TRIM4#

 1
62113-10030

KP3#

 1
62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH
62114-10070

KP3#..LHD

 1
62114-1007001

KP30,36..LHD

BLACK,BLACK,TRIM2#

 1
62114-10040

KP3#

W/UNDER TRAY

 1
62114-10030

KP3#

 1
62114-1007006

KP30,36..LHD

LIGHT BROWN,BROWN,TRIM4#

 1
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62353-1001106

KP3#

OLIVE BROWN,BROWN,TRIM4#

 1
62353-1001116

KP3#

BROWN,BROWN,TRIM4#

 1
62353-10010

KP3#

 1
62353-1001101

KP3#

BLACK,BLACK,TRIM2#

 1
62353-1001126

KP3#

LIGHT BROWN,BROWN,TRIM4#

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62353-10010

KP3#

 1
62353-1001106

KP3#

BROWN,TRIM4#

 1
62353-1001126

KP3#

LIGHT BROWN,BROWN,TRIM4#

 1
62353-1001101

KP3#

BLACK,BLACK,TRIM2#

 1
62353-1001116

KP3#

BROWN,BROWN,TRIM4#

 1
