KP36L- (1969)
Toyota Toyota1000
Production
Nov 1969
-
Aug 1988
Engine
2K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

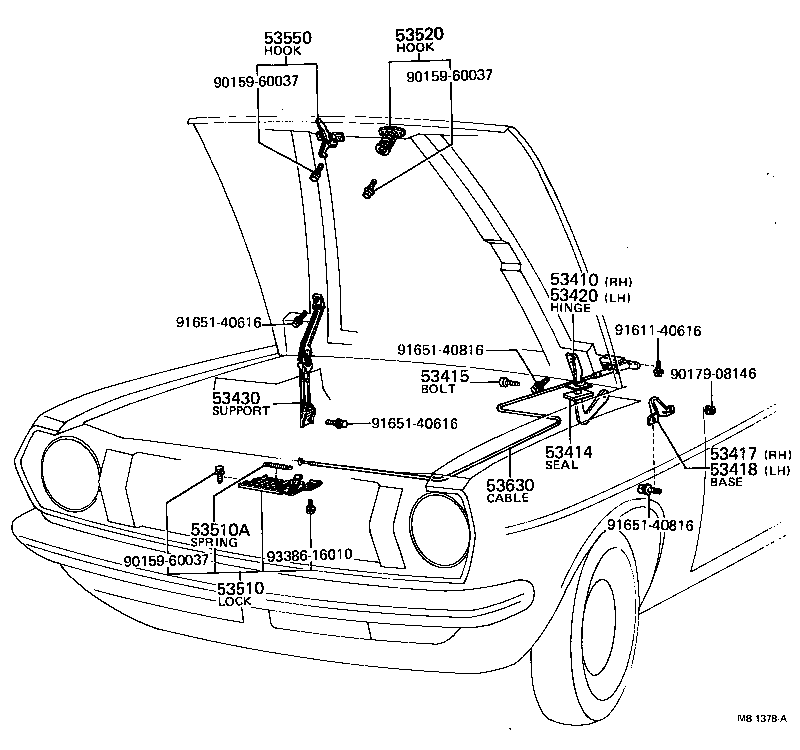

(6904-7410)LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53401-10031 |
KP3# |
1 | ||
| 53401-10030 |
KP3# |
1 | ||
| 53414 - SEAL, HOOD HINGE | ||||
| 53414-10020 |
KP3# |
2 | ||
| 53414-10021 |
KP3# |
2 | ||
| 53415 - BOLT, HOOD HINGE | ||||
| 53415-10020 |
KP3# |
2 | ||
| 53417 - BASE, HOOD HINGE, RH | ||||
| 53417-10010 |
KP3# |
1 | ||
| 53418 - BASE, HOOD HINGE, LH | ||||
| 53418-10010 |
KP3# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53402-10010 |
KP3# |
1 | ||
| 53402-10011 |
KP3# |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53451-10010 |
KP3# |
1 | ||
| 53430-10010 |
KP3# |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-19035 |
KP30,36..LHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-10224 |
KP3# |
1 | ||
| 53520 - HOOK ASSY, HOOD LOCK | ||||
| 53520-19035 |
KP3# |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-19025 |
KP3# |
1 | ||
| 53550-10030 |
KP3# |
1 | ||
| 53560-10010 |
KP30,36..LHD |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-10030 |
KP3# |
1 | ||
| 53630-10031 |
KP3# |
1 | ||
| Common parts | ||||
| 90159-60037 | ||||
| 90179-08146 | ||||
| 91611-40616 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 93386-16010 | ||||

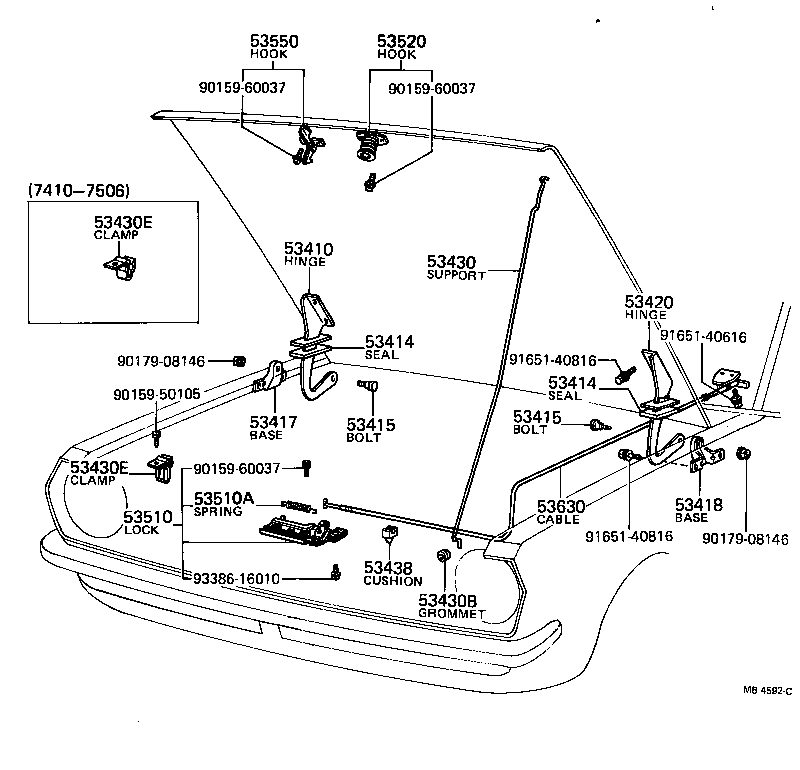

(7410- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53401-10031 |
KP3# |
1 | ||
| 53401-10030 |
KP3# |
1 | ||
| 53414 - SEAL, HOOD HINGE | ||||
| 53414-10020 |
KP3# |
2 | ||
| 53414-10021 |
KP3# |
2 | ||
| 53414 - SEAL, HOOD HINGE | ||||
| 53414-10020 |
KP3# |
2 | ||
| 53414-10021 |
KP3# |
2 | ||
| 53415 - BOLT, HOOD HINGE | ||||
| 53415-10020 |
KP3# |
2 | ||
| 53415 - BOLT, HOOD HINGE | ||||
| 53415-10020 |
KP3# |
2 | ||
| 53417 - BASE, HOOD HINGE, RH | ||||
| 53417-10010 |
KP3# |
1 | ||
| 53418 - BASE, HOOD HINGE, LH | ||||
| 53418-10010 |
KP3# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53402-10010 |
KP3# |
1 | ||
| 53402-10011 |
KP3# |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53451-10010 |
KP3# |
1 | ||
| 53430-10010 |
KP3# |
1 | ||
| 53430B - GROMMET(FOR HOOD SUPPORT) | ||||
| 90480-15296 |
KP3# |
1 | ||
| 53430E - CLAMP, HOOD SUPPORT | ||||
| 53455-12011 |
KP3# |
1 | ||
| 53455-12010 |
KP3# |
1 | ||
| 53430E - CLAMP, HOOD SUPPORT | ||||
| 53455-12011 |
KP3# |
1 | ||
| 53455-12010 |
KP3# |
1 | ||
| 53438 - CUSHION, HOOD SUPPORT | ||||
| 53438-14010 |
KP3# |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-19035 |
KP30,36..LHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-10224 |
KP3# |
1 | ||
| 53520 - HOOK ASSY, HOOD LOCK | ||||
| 53520-19035 |
KP3# |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-19025 |
KP3# |
1 | ||
| 53550-10030 |
KP3# |
1 | ||
| 53560-10010 |
KP30,36..LHD |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-10030 |
KP3# |
1 | ||
| 53630-10031 |
KP3# |
1 | ||
| Common parts | ||||
| 90159-50105 | ||||
| 90159-60037 | ||||
| 90179-08146 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 93386-16010 | ||||
